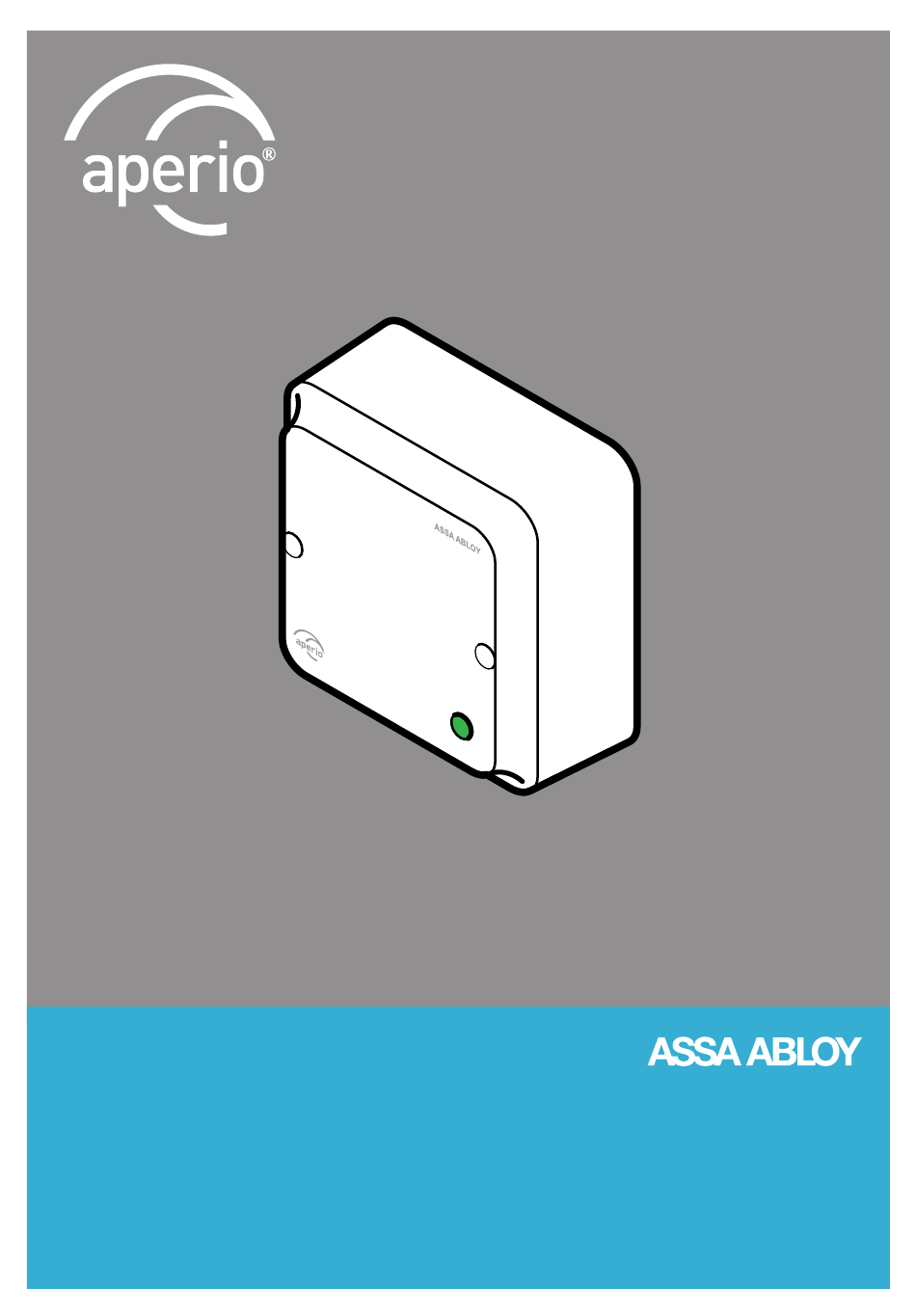

- Page 1 Aperio ® AH40 (GEN5) Hub Installation Guide Experience a safer and more open world Document No: D001042372 Rev 5 Date: 2024-11-19...
- Page 2 AH40 - Table of Contents AH40 - FCC and ISED Canada Statements ............3 AH40 - Placement of Communication Hub ............. 5 AH40 - Mounting, Americas Adapter Plate ............6 AH40 - Mounting, Bottom Cover ................. 7 AH40 - Connectors ....................8 AH40 - Jumpers......................
- Page 3 AH40 - FCC and ISED Canada Statements FCC Statements Changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 ISED Canada Statements This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux ap- pareils radio exempts de licence.
- Page 5 AH40 - Placement of Communication Hub For hubs using the internal For hubs using the external antenna, it is recommended antenna, it is recommended that the device to hub distance that the device to hub distance be limited to 25 m (80 ft). The be limited to 12.5 m (40 ft).
- Page 6 AH40 - Mounting, Americas Adapter Plate (US version) AH40 - Mounting, Americas Adapter Plate Americas Adapter Plate Screw (4 x 35 mm) Tamper Screw switch (3 x 10 mm) Option External Antenna...
- Page 7 AH40 - Mounting, Bottom Cover AH40 - Mounting, Bottom Cover (EU version) Bottom Cover Tamper Screw Screw switch pin (4 x 35 mm) (3 x 10 mm) Option External Antenna...
- Page 8 AH40 - Connectors pins J700 Pin 1 Rx + Pin 2 Rx - Pin 3 Tx + PAIR Pin 4 DC + J200 Pin 5 DC + J400 Pin 6 Tx - 8-24V Pin 7 DC - J700 J800 Pin 8 DC - S100 onneCtors...
- Page 9 AH40 - Jumpers PAIR J200 J400 8-24V J700 J800 S100 umpers esCription Select external antenna by connecting the two right J400 pins.Select internal antenna by connecting the two ANTENNA left pins. Select pairing mode by connecting the two right pins.* Note: If the pairing jumper if removed within 10 J200 seconds from from boot up and the Hub LED is lit, all...
- Page 10 AH40 - Communication Hub LED Indications The Communication Hub has a status LED visible through the front cover. It supports optical schemes with red, green and yellow. The indication schemes are described by the figure below: Online Green Aperio Lock Green + One ®...
- Page 11 AH40 - Technical Data Physical Dimensions 82 mm x 82 mm x 37 mm (H x W x T) Power Supply 8-24 VDC or Power over Ethernet (PoE) The power supply shall be able to deliver minimum 1.2 W and be 3 A over current protected. Wire Power Rating requirements 16-22 AWG.
- Page 12 UL294 Disclaimer Note: The below statements are only applicable for UL294 and Americas. Applicable Standards UL294 Listed, Level I Destructive Attack, Line Security, Standby Power, Level IV Endurance For use with UL294/ULC 60839-11-1 Listed Aperio Locks UL294 compliance with FW version 1.2.0 or higher. Placement of communcation hub For additional installation details, see the “Aperio Online Mechanical Installation Manual - Document No D000732079, Rev 6.
- Page 13 AH40 - Technical Data UL294/ULC60839-11-1 testing is done under the following conditions: Operating temperature 0 °C to 49 °C (32°F to 120.2°F). Humidity 93% RH, 32 °C. IP classification according to IP4X, Indoor Dry Use.
- Page 14 NOTE...
- Page 15 NOTE...
- Page 16 The ASSA ABLOY Group is the global leader in access solutions. Every day we help people feel safe, secure and experience a more open world. Contact www.assaabloy.com/aperio...
