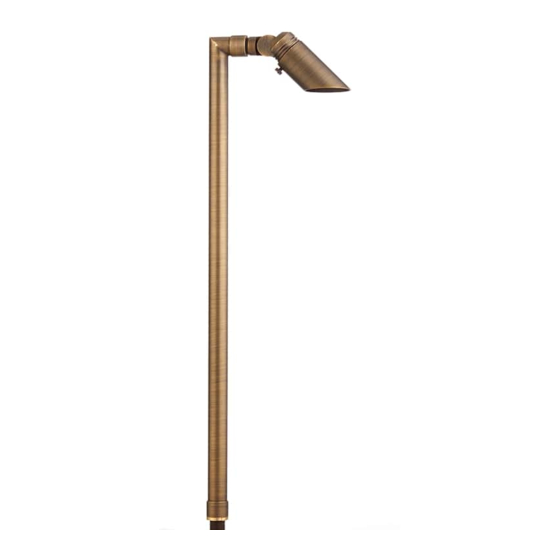

- Page 2 VOLT Innovator Top Dog Mini Path & Area Light ® VPL- 398 Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 CAUTION: Do not exceed maximum wattage marked on luminaire label. Socket NOTE: DO NOT TOUCH halogen lamp with bare hands. Use soft cloth to handle lamp. Lamp Not for use with the VOLT LED Bi-Pin Lamp. ® customersupport@voltlighting.com • 813.978.3700...
- Page 4 INSTALLATION INSTRUCTIONS VOLT Innovator Top Dog Mini Path & Area Light ® VPL- 398 Install Inner Shield Luminaire Screw the inner shield onto the luminaire and hand tighten until snug. Inner Shield Install Outer Shield Place the glare shield over the inner Inner Shield shield and secure with the set screw.
- Page 5 Install Luminaire to Stake Clear away an area in the ground at the wireway slot on top of the stake. Lay the luminaire pigtail into the wireway slot and screw the stem onto the stake. If the assembly does not look Stem straight, adjust by pushing or pulling Wireway Slot...
- Page 6 INSTALLATION INSTRUCTIONS VOLT Innovator Top Dog Mini Path & Area Light ® VPL- 398 Adjust Angle of the Shield Knuckle Using a screwdriver, loosen the knuckle Set Screw set screw then move the shield to the desired angle. Retighten the screw.
