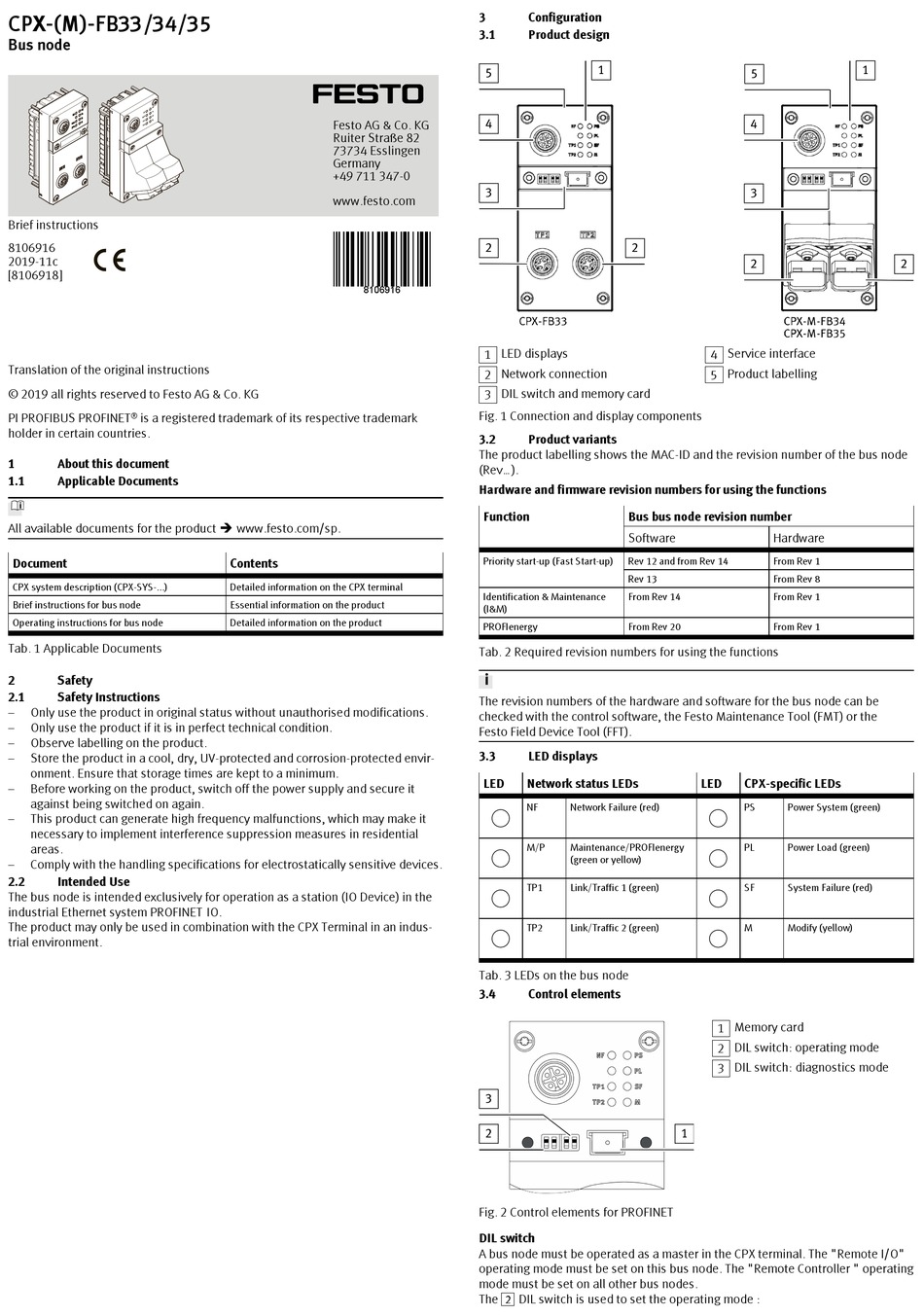

Festo CPX-FB33 Brief Instructions

CPX-(M)-FB33/34/35
Bus node
Brief instructions
8106916
2019-11c
[8106918]
Translation of the original instructions
© 2019 all rights reserved to Festo AG & Co. KG
PI PROFIBUS PROFINET ® is a registered trademark of its respective trademark
holder in certain countries.
1 About this document
1.1 Applicable Documents
All available documents for the product è www.festo.com/sp.
Document
CPX system description (CPX-SYS-...)
Brief instructions for bus node
Operating instructions for bus node
Tab. 1 Applicable Documents
2 Safety
2.1 Safety Instructions
– Only use the product in original status without unauthorised modifications.
– Only use the product if it is in perfect technical condition.
– Observe labelling on the product.
– Store the product in a cool, dry, UV-protected and corrosion-protected envir-
onment. Ensure that storage times are kept to a minimum.
– Before working on the product, switch off the power supply and secure it
against being switched on again.
– This product can generate high frequency malfunctions, which may make it
necessary to implement interference suppression measures in residential
areas.
– Comply with the handling specifications for electrostatically sensitive devices.
2.2 Intended Use
The bus node is intended exclusively for operation as a station (IO Device) in the
industrial Ethernet system PROFINET IO.
The product may only be used in combination with the CPX Terminal in an indus-
trial environment.
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8106916
Contents
Detailed information on the CPX terminal
Essential information on the product
Detailed information on the product
3 Configuration

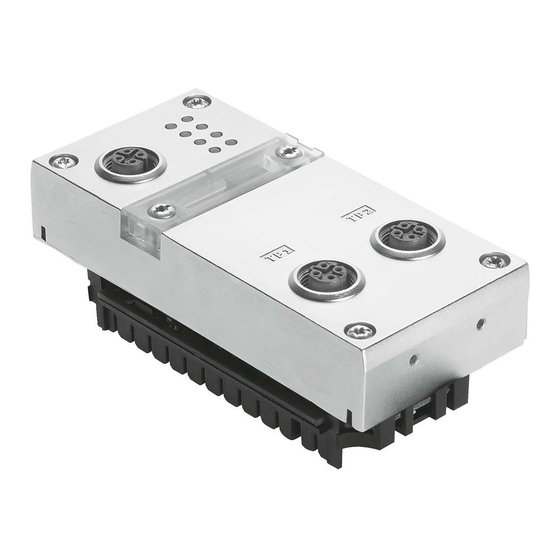

3.1 Product design
1 LED displays
2 Network connection
3 DIL switch and memory card
Fig. 1 Connection and display components
3.2 Product variants
The product labelling shows the MAC-ID and the revision number of the bus node
(Rev...).
Hardware and firmware revision numbers for using the functions
Function Bus bus node revision number
Software
Priority start-up (Fast Start-up) Rev 12 and from Rev 14
Rev 13
Identification & Maintenance From Rev 14
(I&M)
PROFIenergy From Rev 20
Tab. 2 Required revision numbers for using the functions
The revision numbers of the hardware and software for the bus node can be
checked with the control software, the Festo Maintenance Tool (FMT) or the
Festo Field Device Tool (FFT).
3.3 LED displays
LED Network status LEDs
NF Network Failure (red)
M/P Maintenance/PROFIenergy
(green or yellow)
TP1 Link/Traffic 1 (green)
TP2 Link/Traffic 2 (green)
Tab. 3 LEDs on the bus node
3.4 Control elements
Fig. 2 Control elements for PROFINET
DIL switch
A bus node must be operated as a master in the CPX terminal. The "Remote I/O"
operating mode must be set on this bus node. The "Remote Controller " operating
mode must be set on all other bus nodes.
The 2 DIL switch is used to set the operating mode :
4 Service interface
5 Product labelling
Hardware
From Rev 1
From Rev 8
From Rev 1
From Rev 1
LED CPX-specific LEDs
PS Power System (green)
PL Power Load (green)
SF System Failure (red)
M Modify (yellow)
1 Memory card
2 DIL switch: operating mode
3 DIL switch: diagnostics mode
