NOTE: Consult building's Engineer of Record to
specify correct fasteners for attachment to
building and to ensure that building has adequate
structure. There are three (3) holes provided per
mounting plate (.600" diameter) for floor anchor
clearance. Product was tested while mounting to
3/8" diameter floor anchors in 4" concrete.
5.

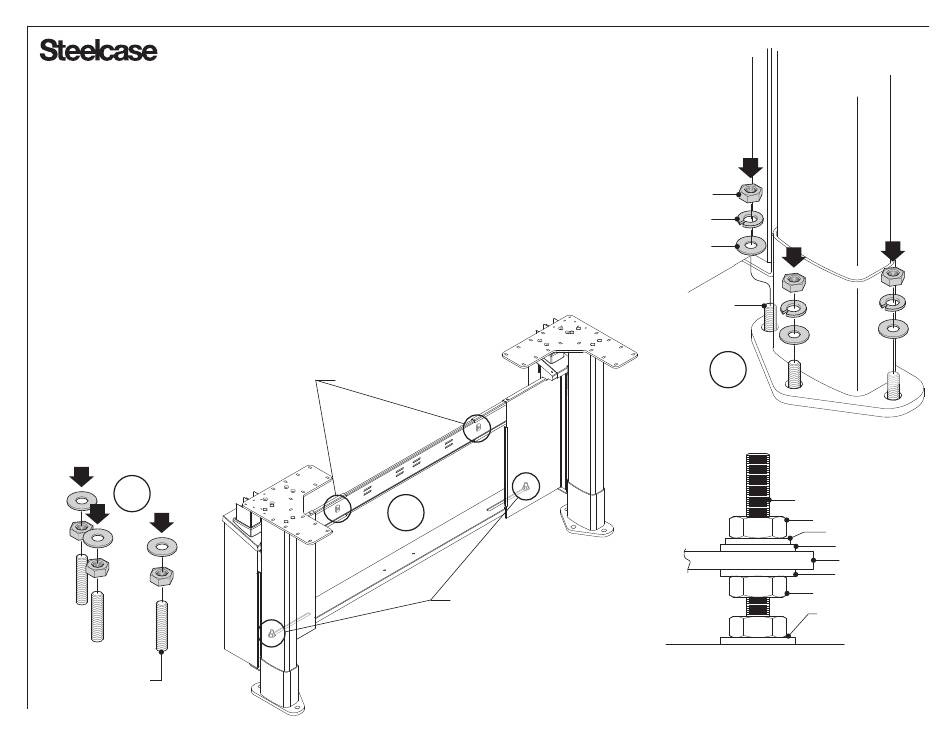

Install floor anchors per fastener
manufacturer's specifications. Leave 2-1/4" of
exposed stud for leveling purposes.
6.
Thread a nut, then a washer on each floor
anchor as shown.
7.
Loosen nuts on the upper and lower support
rails to allow the unit to adjust to the floor anchor
position.
(Omit this step for Single Leg)
8.
Set unit on floor anchors. Plumb and level
base unit using nuts and washers.
6
FLOOR
ANCHOR
9.
Plumb each leg making sure top support rail is
also level. Use nuts to make any necessary
adjustments.
10.
Secure unit with a washer, lock washer and
nut, as shown, to secure plate.
11.
Tighten nuts on upper and lower support rails
that were loosened in step 7.
(Omit this step for Single Leg)
12.
Check legs and top support rail for plumb and
level.
LOOSEN UPPER SUPPORT RAIL HERE
7
LOOSEN LOWER SUPPORT RAIL HERE
NUT
LOCK WASHER
WASHER
FLOOR ANCHOR
10
CROSS SECTION
FLOOR ANCHOR
OF FINAL ORDER
NUT
LOCK WASHER
WASHER
PLATE
WASHER
NUT
MFG. RECOMMENDED
NUT / WASHER
