HEALTH
1.
For height adjustable units, measure any protrusion from back or side walls
that exists below the maximum adjusted height of worksurface.
2.
Make sure resulting width of installation niche from back wall corner to
corner, after subtracting any side wall protrusions, falls within the following
ranges for the respective nominal width unit:
• 60" nominal - 54" to 66"
• 72" nominal - 66" to 78"
(Omit this step for Single Leg)

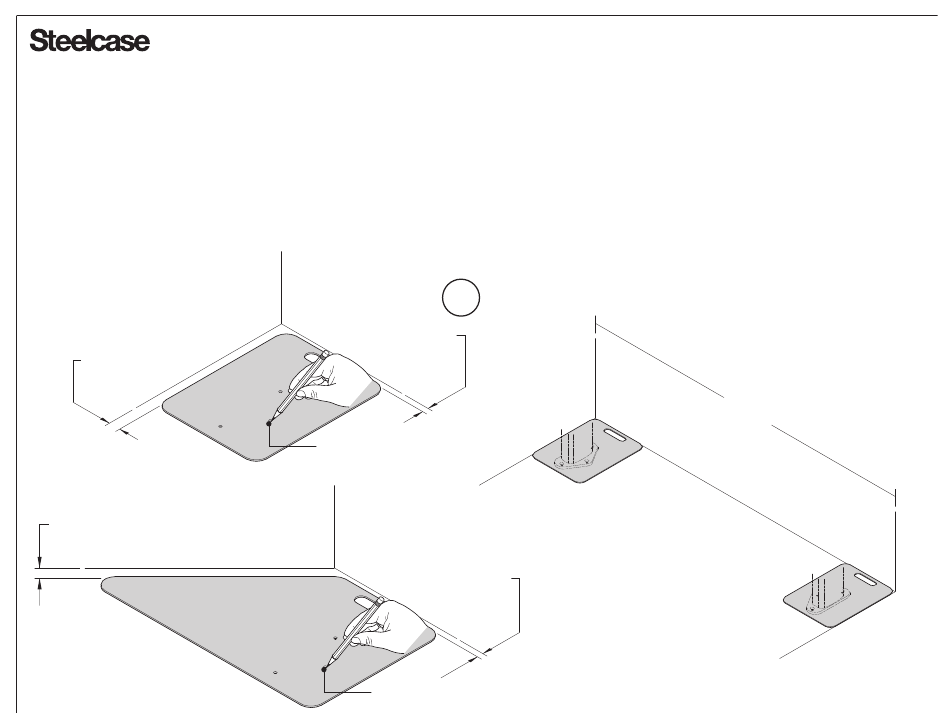

FOR 90 DEGREE WORKSURFACE LOCATIONS
[943102528SR]
SIDE WALL
PROTRUSION
DEPTH
FOR 135 DEGREE WORKSURFACE LOCATIONS
[943102529SR]
SIDE WALL
PROTRUSION
DEPTH
3.
and 943102529SR for 135° legs) template to mark three (3) hole
locations for floor anchors.
4a.
any protrusions (window frame, sill, etc.) that exist between 25" - 50"
above floor.
4b.
depth of any protrusions (window frame, sill, etc.) that exist between
25" - 50" above floor.
4
BACK WALL
PROTRUSION
DEPTH MINUS 1"
MARK HOLE
LOCATIONS
BACK WALL
PROTRUSION
DEPTH MINUS 1"
MARK HOLE
LOCATIONS
Use (customer service part number 943102528SR for 90° legs
Offset "side wall" edge of template from side wall by depth of
Offset "back wall" edge of template by a distance 1" less than
INSTALLATION NICHE
WIDTH OF THE
Page 3 of 7
939549945 Rev E
