PureEdge Lighting TruLine 1.6A Installation Instructions Manual

Center feed power channel connector

Advertisement

Quick Links

Installation Instructions for TruLine 1.6A Center Feed Power Channel Connector
IMPORTANT INFORMATION
- This instruction must be used concurrently with other
TruLine 1.6A BIY installation instructions.
- This product is wall or ceiling mount.
- This instruction shows a typical installation.
SAVE THESE INSTRUCTIONS!

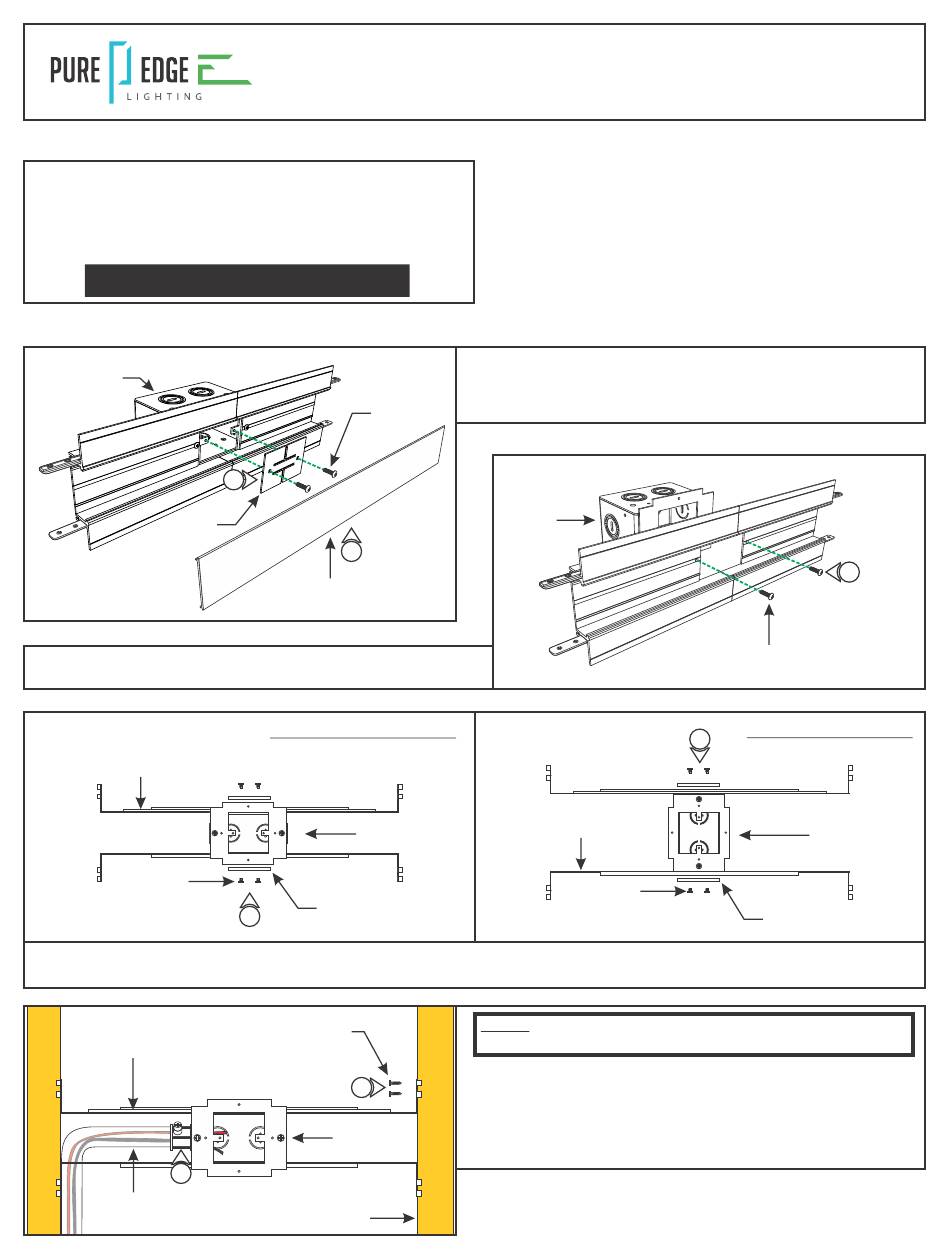

Section One: Install the Junction Box

A
JUNCTION
BOX
TRAP
DOOR
3: Remove the two Phillips screws from the junction box to
remove the Center Feed Power Connector assembly.
C
ADJUSTABLE
MOUNTING BAR
PHILLIPS
SCREW
4: Mount each adjustable mounting bar to one side of the junction box and secure them with the mounting brackets and two
Phillips screws provided.
D
ADJUSTABLE
MOUNTING BAR
6
CONDUIT W/
LOW-VOLTAGE WIRES
PHILLIPS
SCREW
2
1
LENS
HORIZONTAL ORIENTATION
JUNCTION
BOX
MOUNTING
4
BRACKET
#8 SCREW
5
JUNCTION
BOX
STUD
1718 W. Fullerton Chicago, IL 60614
Ph: 773.770.1195 ● Fax: 773.935.5613
www.PureEdgeLighting.com ● info@PureEdgeLighting.com
© 2016 PureEdge Lighting. All Rights Reserved.
1: Remove the lens from the Center Feed Power Connector.
2: Remove the two Phillips screws from the junction box to
remove the trap door from the assembly.
B
JUNCTION
BOX
ADJUSTABLE
MOUNTING BAR
PHILLIPS
SCREW
NOTE:
The adjustable mounting bars mount to studs that are
spaced 13" to 24" apart.
5: Place the lips on the adjustable mounting bars against the
studs. Secure the adjustable bars to the studs with the #8
screws.
6: Install conduit(s) (if required by local electrical code) and
run low voltage wires to the junction box.
Doc # 902-TL1.6A-CFP_08
3
PHILLIPS
SCREW
VERTICAL ORIENTATION
4
JUNCTION
BOX
MOUNTING
BRACKET
1
