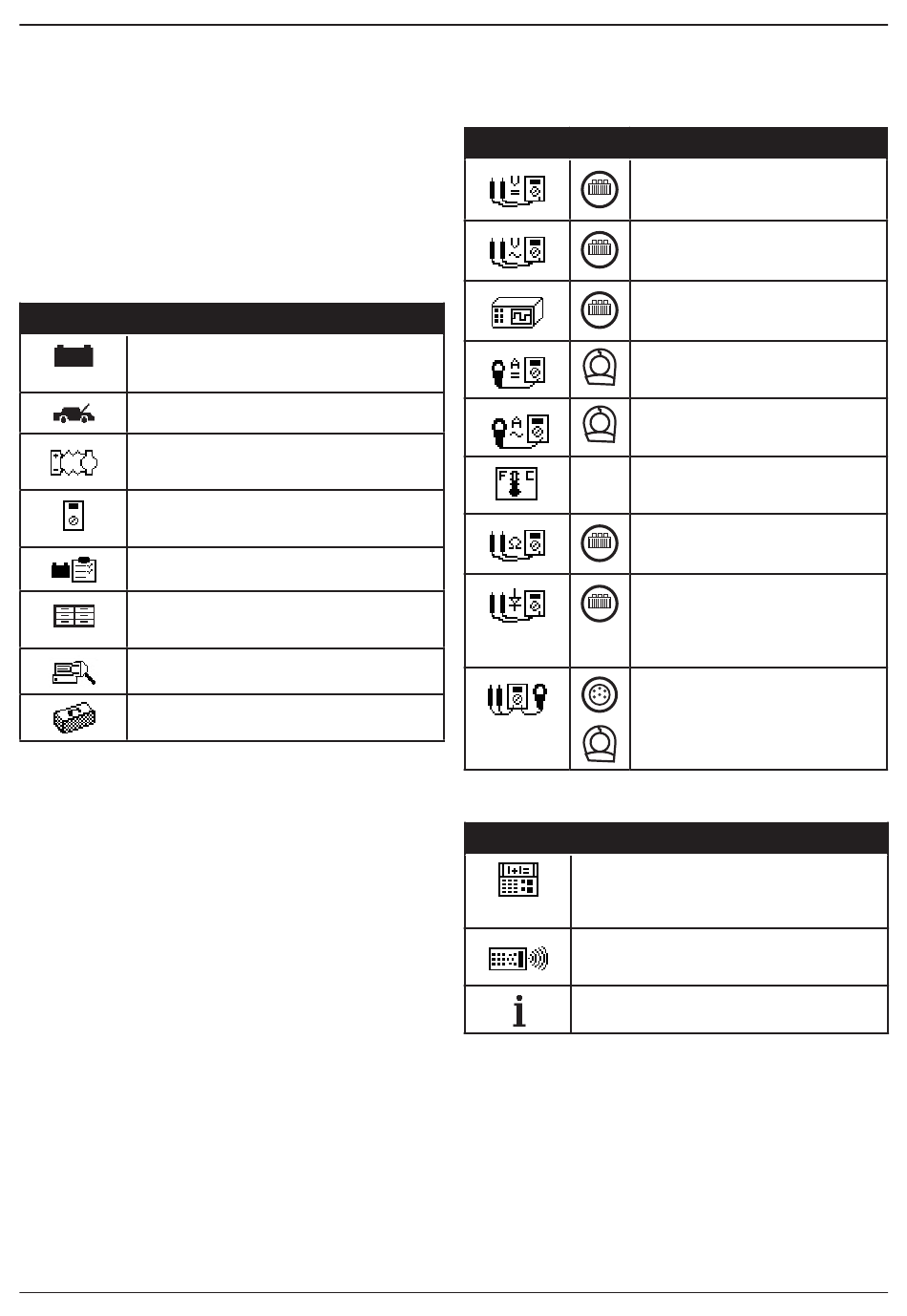

Menu Structure

This section will help you get to your destination while letting
you know what test leads you may need when you arrive.
The test leads are represented by symbols for their connectors.

Main Menu

The Main Menu is the starting point for all tools and utilities,
which are depicted as icons. Some icons lead directly to the
function they represent, while others are menu icons that lead
to two or more functions. Menu icons are marked here with an
asterisk (*) and are mapped on the following pages.
Icon
The BATTERY TEST tests a battery using the
battery information you select in a series of
screens.
With SYSTEM TEST you can test the battery,
1
and the starting and charging systems.
CABLE DROP TEST tests both sides of a
1
circuit simultaneously for voltage. Three preset
tests and 1 user-defined.
Digital multimeter (DMM) has 8 test meters,
1
*
a temperature sensor, and options for clamps
and probes.
QC TEST is used for testing stock or
compound batteries.
INFO contains a test counter, data transfer
*
utility, and the tester software version and
serial number.
PRINT/VIEW for all statistical info and
*
software version info.
UTILITY includes functionality to setup the
*
tester.
1: EST version only
www.midtronics.com
Description

DMM Menu (EST version only)

The DMM Menu has icons for a temperature sensor and 8 test
meters, some of which require different test leads.
Icon
Probes
only

Info Menu

Icon
TOTALS displays the total battery tests
performed since the tester was first used, the
totals by decision, or allows you to clear the
counters.
TRANSFER DATA is an optional IR software
and hardware package, which enables you to
transfer test data to a PC.
VERSION INFO displays the software version
and serial number.
9
Chapter 1: Before You Begin
Description
DC VOLTS METER measures
voltage within a range of 0 to 60 Vdc.
AC VOLTS METER measures
voltage within a range of 0 to 24 Vac.
SCOPE traces voltage with time and
frequency measurements.
DC AMP METER tests the strength
of the direct current flow through a
circuit.
AC AMP METER tests the strength
of the alternating current flow through
a circuit.
TEMPERATURE METER displays
temperature in degrees F or C (units
you can select in the Utilities Menu.)
OHM METER tests a circuit for
continuity and resistance measured
in ohms (Ω).
DIODE tests a diode for forward
voltage drop.
VOLTS AMP METER measures two
signals simultaneously:
DC voltage and amperage.
Description
