Connections and Data Ports

Removing and Inserting the Data Card

The analyzer ships with a storage card slot to protect it from
dust and debris. To remove the data card, push briefly on its
edge to release it and pull it from the slot. When inserting a
card, push it into the slot until it locks. The card is correctly
inserted when it is not protruding from the slot. To protect
the card slot and enable the analyzer to read and write to the
card, leave the card in the slot.

Connecting the Battery Test Cable

CAUTION: To prevent damage to the analyzer's circuitry,
do not connect the analyzer to a voltage source greater than
30 Vdc.
www.midtronics.com

Chapter 2: Overview

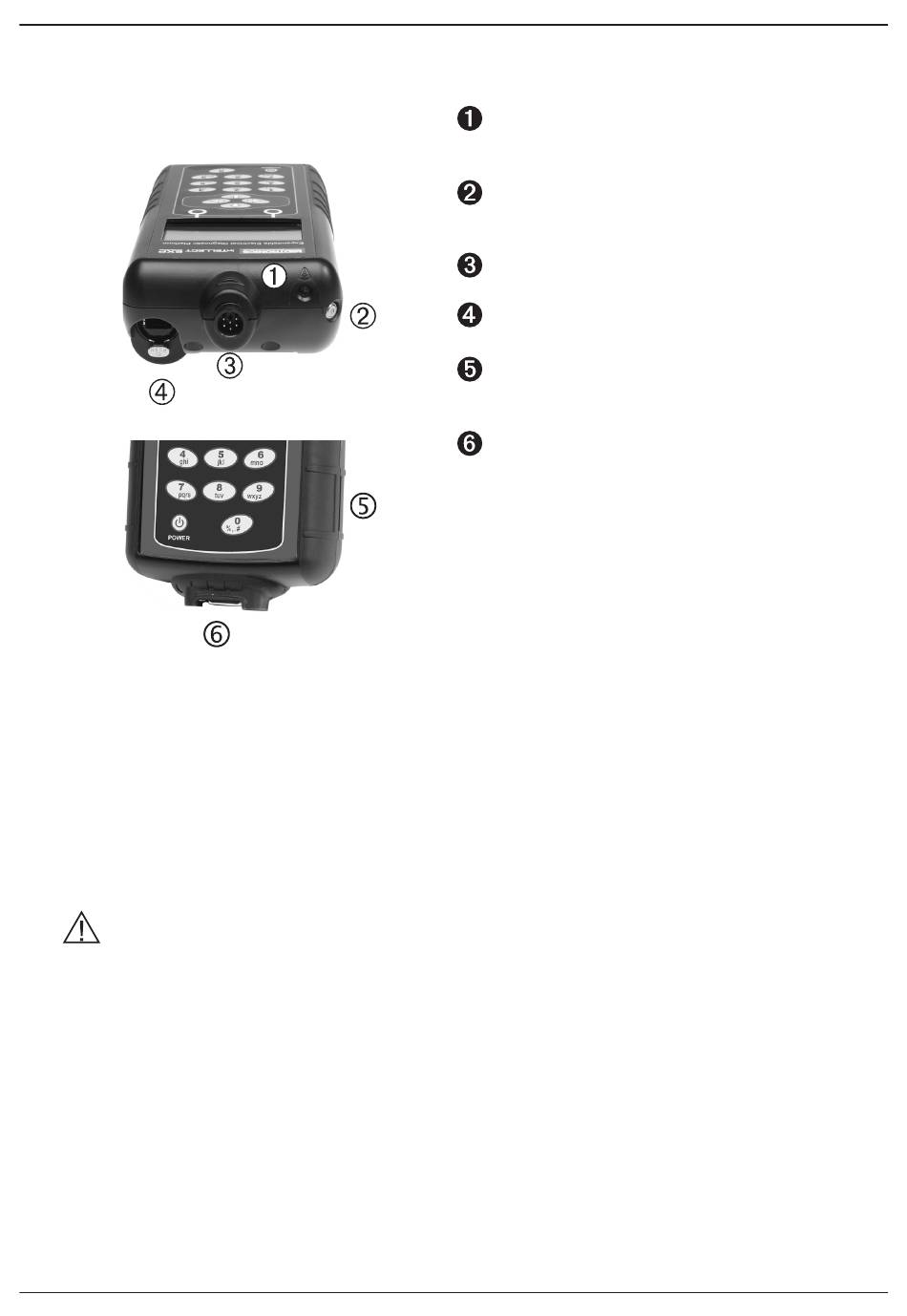

Data transmitter: sends test results to a PC
using an optional hardware and software kit.
Infrared temperature sensor with a range of
-28 °C to +93 °C
6-pin connector for the battery test cable.
Input for accessories (optional).
Spring-loaded data card slot for test data
storage and software upgrades.
DB-9 connector for future expandability.
