EXP-925

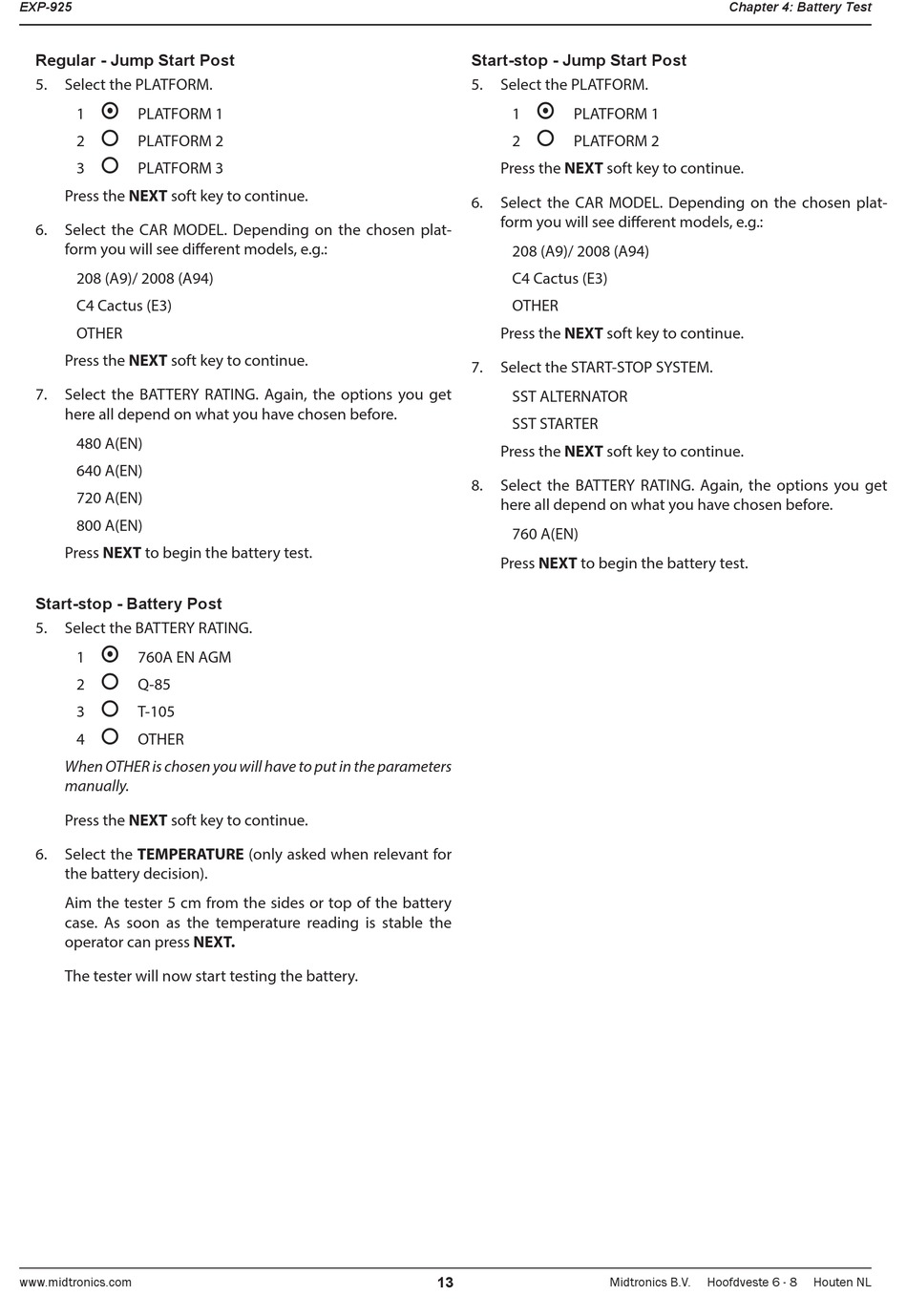

Regular - Jump Start Post

5. Select the PLATFORM.

1 PLATFORM 1

2 PLATFORM 2

3 PLATFORM 3
Press the NEXT soft key to continue.
6. Select the CAR MODEL. Depending on the chosen plat-
form you will see different models, e.g.:
208 (A9)/ 2008 (A94)
C4 Cactus (E3)
OTHER
Press the NEXT soft key to continue.
7. Select the BATTERY RATING. Again, the options you get
here all depend on what you have chosen before.
480 A(EN)
640 A(EN)
720 A(EN)
800 A(EN)
Press NEXT to begin the battery test.

Start-stop - Battery Post

5. Select the BATTERY RATING.

1 760A EN AGM

2 Q-85

3 T-105

4 OTHER
When OTHER is chosen you will have to put in the parameters
manually.
Press the NEXT soft key to continue.
6. Select the TEMPERATURE (only asked when relevant for
the battery decision).
Aim the tester 5 cm from the sides or top of the battery
case. As soon as the temperature reading is stable the
operator can press NEXT.
The tester will now start testing the battery.
www.midtronics.com

Start-stop - Jump Start Post

5. Select the PLATFORM.

1 PLATFORM 1

2 PLATFORM 2
Press the NEXT soft key to continue.
6. Select the CAR MODEL. Depending on the chosen plat-
form you will see different models, e.g.:
208 (A9)/ 2008 (A94)
C4 Cactus (E3)
OTHER
Press the NEXT soft key to continue.
7. Select the START-STOP SYSTEM.
SST ALTERNATOR
SST STARTER
Press the NEXT soft key to continue.
8. Select the BATTERY RATING. Again, the options you get
here all depend on what you have chosen before.
760 A(EN)
Press NEXT to begin the battery test.
13
Chapter 4: Battery Test
