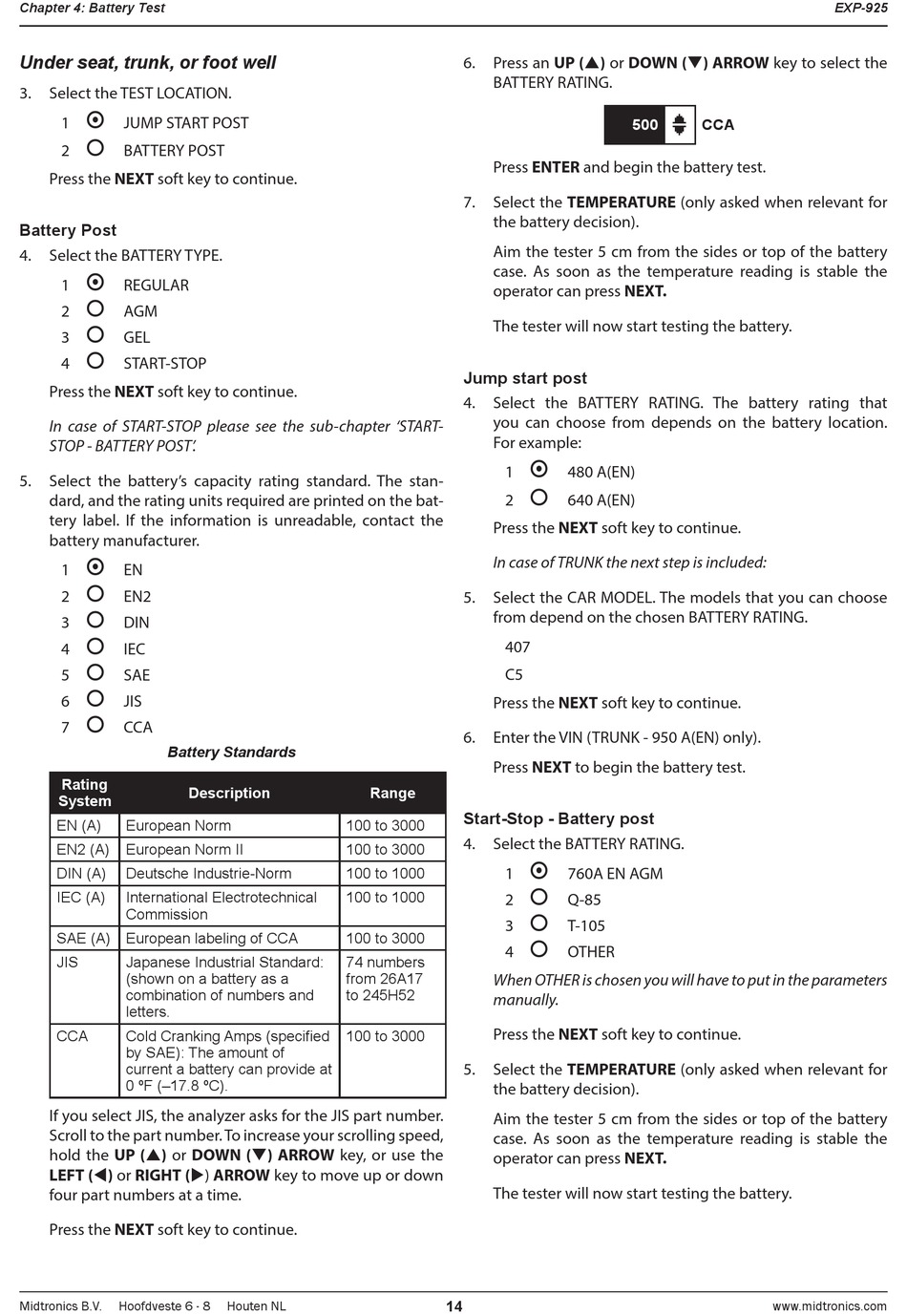

Chapter 4: Battery Test

Under seat, trunk, or foot well

3. Select the TEST LOCATION.

1

JUMP START POST


2

BATTERY POST

Press the NEXT soft key to continue.
Battery Post
4. Select the BATTERY TYPE.

1 REGULAR

2 AGM

3 GEL

4 START-STOP
Press the NEXT soft key to continue.
In case of START-STOP please see the sub-chapter 'START-
STOP - BATTERY POST' .
5. Select the battery's capacity rating standard. The stan-
dard, and the rating units required are printed on the bat-
tery label. If the information is unreadable, contact the
battery manufacturer.

1 EN

2 EN2

3 DIN

4 IEC

5 SAE

6 JIS

7 CCA
Battery Standards
Rating
Description
System
EN (A) European Norm
EN2 (A) European Norm II
DIN (A) Deutsche Industrie-Norm
IEC (A) International Electrotechnical
Commission
SAE (A) European labeling of CCA
JIS Japanese Industrial Standard:
(shown on a battery as a
combination of numbers and
letters.
CCA Cold Cranking Amps (specified
by SAE): The amount of
current a battery can provide at
0 ºF (–17.8 ºC).
If you select JIS, the analyzer asks for the JIS part number.
Scroll to the part number. To increase your scrolling speed,
hold the UP () or DOWN () ARROW key, or use the
LEFT () or RIGHT () ARROW key to move up or down
four part numbers at a time.
Press the NEXT soft key to continue.
Midtronics B.V. Hoofdveste 6 - 8
Range
100 to 3000
100 to 3000
100 to 1000
100 to 1000
100 to 3000
74 numbers
from 26A17
to 245H52
100 to 3000
Houten NL
Press an UP () or DOWN () ARROW key to select the
6.
BATTERY RATING.
Press ENTER and begin the battery test.
Select the TEMPERATURE (only asked when relevant for
7.
the battery decision).
Aim the tester 5 cm from the sides or top of the battery
case. As soon as the temperature reading is stable the
operator can press NEXT.
The tester will now start testing the battery.
Jump start post
4. Select the BATTERY RATING. The battery rating that
you can choose from depends on the battery location.
For example:

1 480 A(EN)

2 640 A(EN)
Press the NEXT soft key to continue.
In case of TRUNK the next step is included:
5. Select the CAR MODEL. The models that you can choose
from depend on the chosen BATTERY RATING.
407
C5
Press the NEXT soft key to continue.
6. Enter the VIN (TRUNK - 950 A(EN) only).
Press NEXT to begin the battery test.

Start-Stop - Battery post

4. Select the BATTERY RATING.

1 760A EN AGM

2 Q-85

3 T-105

4 OTHER
When OTHER is chosen you will have to put in the parameters
manually.
Press the NEXT soft key to continue.
5. Select the TEMPERATURE (only asked when relevant for
the battery decision).
Aim the tester 5 cm from the sides or top of the battery
case. As soon as the temperature reading is stable the
operator can press NEXT.
The tester will now start testing the battery.
14
500 CCA
