Installation and Service Guide: Color Controller E-45 56
Replacing parts

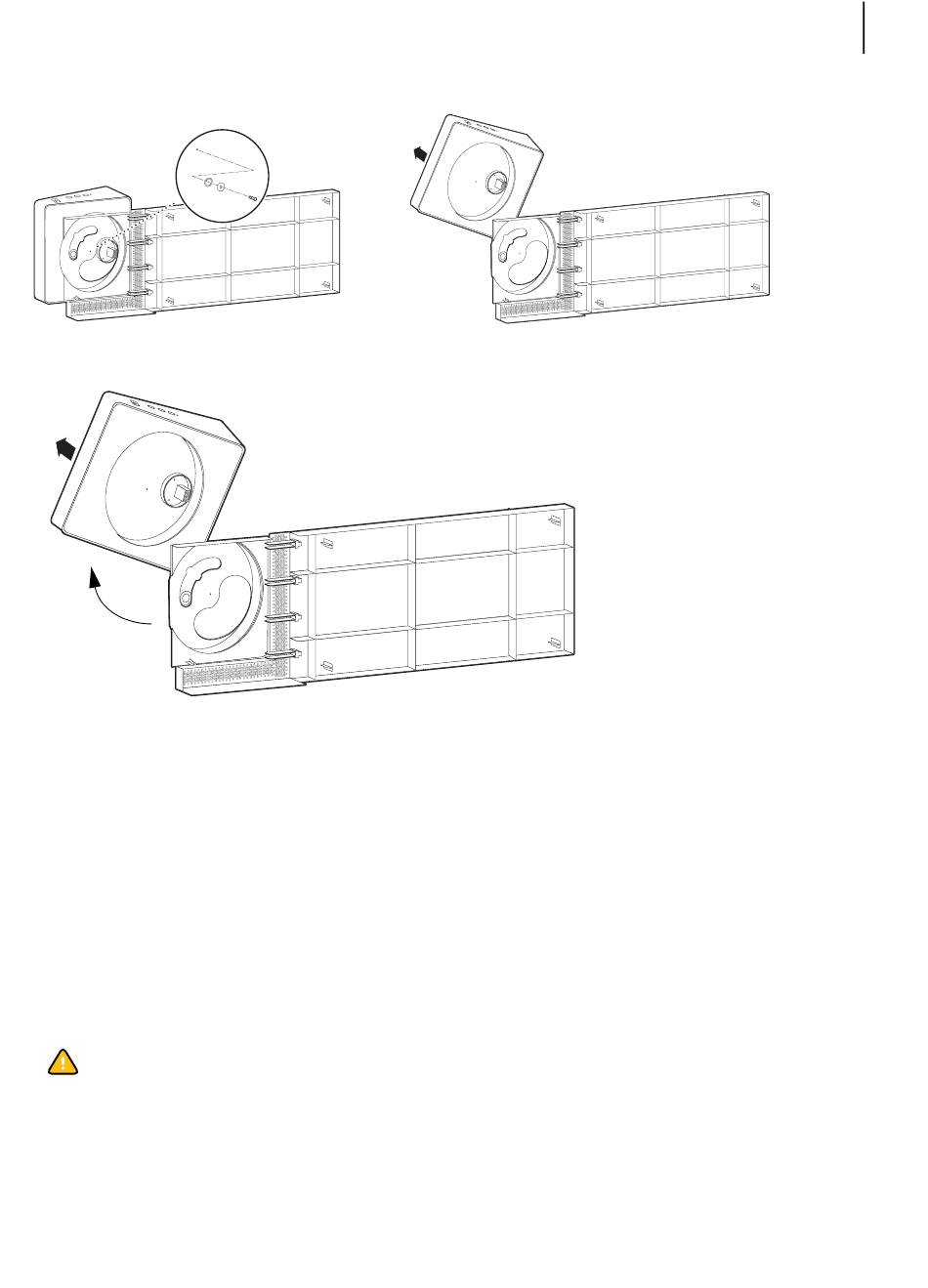

6 Remove the single screw in the center, then remove the washer and spring washer.
7 Rotate the Fiery QuickTouch 45 degrees.
8 Remove the top bezel.
Replace the Fiery QuickTouch
1 Attach the new Fiery QuickTouch part to the top bezel by rotating the top bezel 45 degrees, then rotate until the bezel
and Fiery QuickTouch align.Insert the spring washer, then the screw with washer and tighten.
2 Once attached, ensure that the Fiery QuickTouch moves properly from side to side.
3 Place the top bezel with Fiery QuickTouch atop the unit on its side.
4 Plug in the USB cable and insert the plug so that the mark on the cable and mark on the internal board line up.
5 Insert the two screws to secure the plug and grounding bracket.
Caution: Use a screwdriver with a magnetic tip so you do not drop a loose screw into the Fiery QuickTouch unit.
6 Insert the power harness and loop it around guides to allow the Fiery QuickTouch to move freely.
7 Use a tie-wrap to secure the power cable to the tab on the supporting bracket for USB connector.
8 Replace the top bezel on top of the unit and slide back in place.
