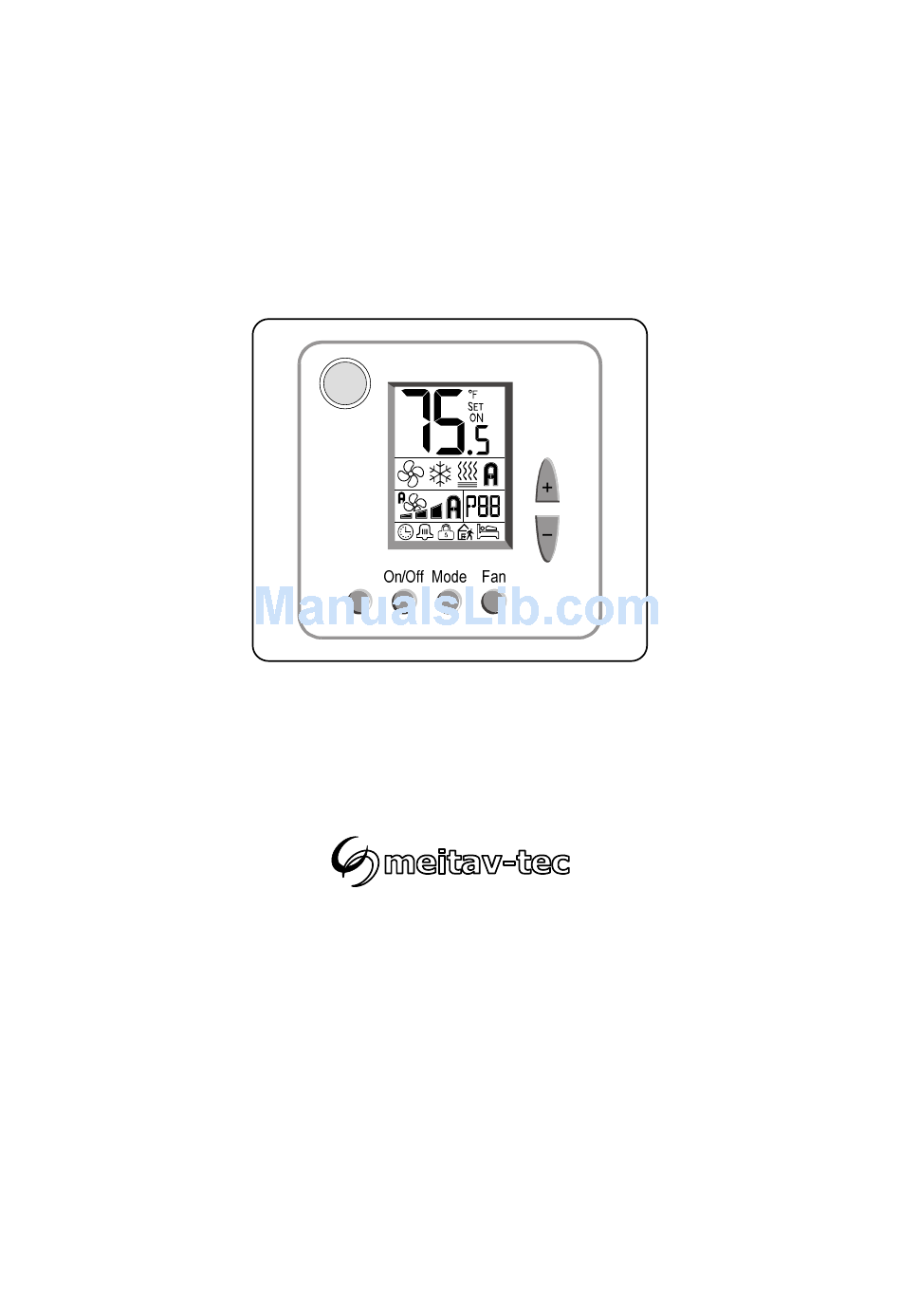

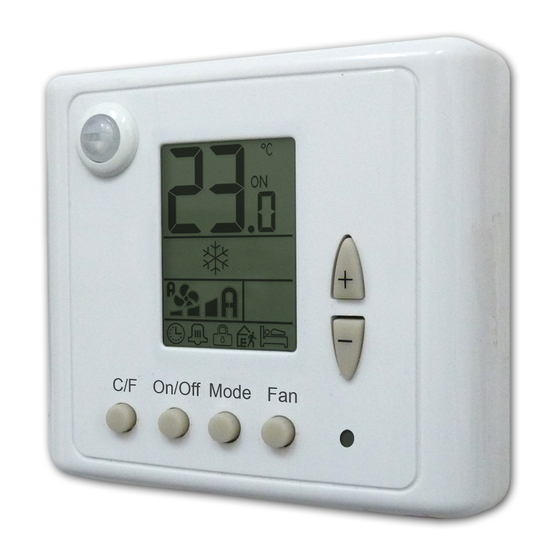

  • Page 1 ETNC24-FC-BAC-PIR-02 Owner’s manual & Technician Settings Rev.7...

  • Page 2: Table Of Contents

    Floor heating configuration DIP Switch settings……………………………………..……………………………………..………….. 10-12 Number of fan speeds 2-Pipe / 4-Pipe system Enable/Disable Electric heater on 2nd stage heating Communication MAC Address / MAC Address table Pg. 2 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...

  • Page 3: Index

    P25 – Economy set point for cooling P99 – One or Two set points P26 – Economy set point for heating RT03 Remote control - option…………………………………...…………………………….………….. 27 Pg. 3 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...

  • Page 4: Operating Instructions

    Use the [+] or [-] buttons to adjust the set point for heating. Note: The set point for cooling must be higher than the set point for heating. Pg. 4 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...

  • Page 5: Selecting System Mode

    When ON, the fan will run on demand for cooling or heating, When OFF, the fan will run continuously. Note: Auto fan cannot be selected in Fan only mode. Locking the thermostat buttons Lock Lock mode indication Pg. 5 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...

  • Page 6: Resetting Filter Alarm

    Time to its previous state. Normal work Freeze protection When freeze protection is activated, the display alternates between “AL” and room temperature. Pg. 6 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...

  • Page 7: Installation

    Install the cove to the back panel; first the two bottom tabs and then the top tongue. Push until tight against the wall. PIR detection area Horizontal Vertical (Top view) (Side view) 20° 90° 1.5m / 5ft 5m / 16ft Pg. 7 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...

  • Page 8: Wiring

    - Remote On/Off switch (See “P08” section in technician settings) - Remote Economy switch - Window Contact - External Passive Infrared detector (PIR) (See “P09” section in technician settings) Pg. 8 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...

  • Page 9: Jumpers

    Note: in Floor heat configuration, the fan will JP5 – Enable/Disable PIR detector remain OFF in 1 stage heating (floor heating). Open Enable PIR detector Close Disable PIR detector Pg. 9 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 10 1, 3...8 – OFF 2 3 4 5 6 7 8 MAC Address 3: 1,2 – ON 3...8 – OFF Use the following MAC address table for all combinations. Pg. 10 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 11 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Not in use Pg. 11 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 12 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Pg. 12 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...

  • Page 13: Technician Settings

    Limit cool Limit cool (°C) (°F) P03 – Set point limit for heating Range: 5…35°C / 41…90°F. Default: 35°C / 90°F. Limit heat Limit heat (°C) (°F) Pg. 13 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 14 “01” - External sensor Not in use (External sensor) sensor (hotel config.) “02” - Soft start in heat sensor “03” - Hotel config.: “03” - Door switch Pg. 14 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 15 “00” - Normally close Door switch Door switch Normally close Normally open P13 – Door switch delay time Range: 0…999 seconds. Default: 180 seconds. Door switch delay time (sec.) Pg. 15 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 16 0…250 minutes. Default: 20 minutes. PIR ON delay (sec.) P19 – PIR (Occupancy sensor) polarity “00” - Normally open “01” - Normally close Normally open Normally close Pg. 16 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 17 P26 – Economy set point for heating Range: 5…35°C / 41…90°F. Default: 10°C / 50°F. EC set point EC set point In heating (°C) In heating (°F) Pg. 17 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 18 LCD Backlight ON “bL” + “OFF” LCD Backlight OFF Backlight Backlight P30 – Beeper ON or OFF “bP” + “ON” Beeper ON “bP” + “OFF” Beeper OFF Beeper Beeper Pg. 18 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 19 Default: 0 seconds (no delay) Fan ON delay in heating (seconds) P34 – Fan OFF delay in heating (seconds) Range: 0…120 seconds Default: 30 seconds Fan OFF delay in heating (seconds) Pg. 19 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 20 (°F) P37 – Freeze protection cut-out set point Range: 10...17°C / 50…63°F Default: 10°C / 50°F FP cut-out FP cut-out set point (°C) set point (°F) Pg. 20 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 21 (keep counting) P42 – Adjust filter alarm delay time counter (hours) Range: 0…999 hours Default: 0 hours (0 = Disable) Adjust filter alarm delay time (hours) Pg. 21 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 22 The fan will stop if the temperature on T3 sensor drops below the cut-out temperature. Range: 14...37°C / 54…95°F Soft start heat Soft start heat Default: 32°C / 90°F Cut-out (°C) Cut-out (°F) Pg. 22 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 23 (°C) band (°F) P46 – Cool differential band offset Range: 0...5°C / 0…10°F Default: 0°C / 0°F Cool diff. band Cool diff. band offset (°C) offset (°F) Pg. 23 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 24 (°C) band (°F) P48 – Heat differential band offset Range: -5...0°C / -10…0°F Default: 0°C / 0°F Heat diff. band Heat diff. band offset (°C) offset (°F) Pg. 24 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 25 P84 – View T3 temperature sensor readings Note: If T3 is not connected, -9.8°C / -9.8°F will appear on display T3 Sensor T3 Sensor T3 Sensor Not connected readings readings Pg. 25 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...

  • Page 26: Technician Settings

    Press the [Mode] button or wait 60 seconds to return to normal display. Restore defaults Reset thermostat to factory settings Press and the [Mode], [Fan] and [On/Off] buttons simultaneously for 10 seconds to reset the thermostat to factory settings. Pg. 26 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 27 10 minutes pass between removing the old icon) using the [+] or [-] buttons. batteries and installing the new ones. Press the [On/Send] button to send the information to the thermostat. Pg. 27 Tel: +972-3-9626462 ETNC24-FC-BAC-PIR-02 Fax: +972-3-9626620 Owner’s manual & Technician Settings support@meitavtec.com...
  • Page 28 Tel: +972-3-9626462 Fax: +972-3-9626620 support@meitavtec.com www.meitavtec.com...
