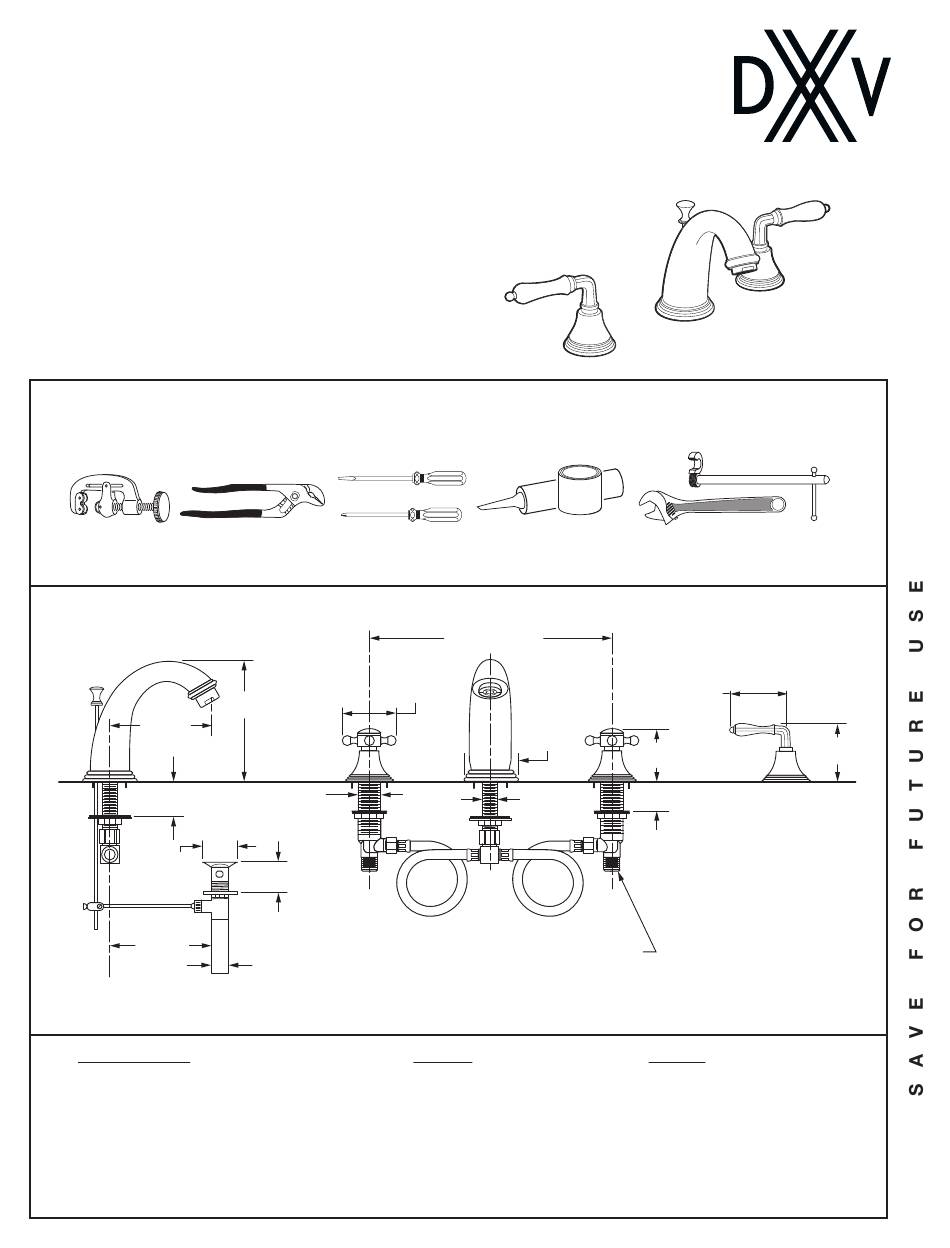

INSTALLATION INSTRUCTIONS

Ashbee
™
Widespread Lavatory Faucets
Cross Handle
Model D3510184C
Lever Handle
Model D3510180C
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work has begun.
Tubing Cutter
ROUGHING-IN DIMENSIONS:
• For reference
5-1/8"
(130 mm)
1-1/2" MAX.
(38 mm)
2-1/8" DIA.
(54 mm)
7-1/2" MAX.
(191 mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Flat Blade Screwdriver
Channel Locks
Phillips Screwdriver
6-1/8"
(150 mm)
1-1/16" DIA.
(27 mm)
2" MAX.
(51 mm)
1-1/4" O.D.
(32 mm)
NOTE: MOUNTING HOLES ARE 1-3/8" DIA. (35 mm)
Plumbers' Putty or Caulking
6" TO 12" MAX.
(152 to 305 mm)
3"
(70 mm)
CROSS
HANDLE
2-3/4" DIA.
(70 mm)
7/8" DIA.
(22 mm)
CONNECTIONS:
• 1/2" IPS FLEXIBLE SUPPLIES
• 3/8" O.D. BULL-NOSE RISERS
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Basin Wrench
Adjustable Wrench
3-5/8"
(92 mm)
3-1/8"
(90 mm)
(78 mm)
1-1/4" MAX.
STRAIGHT
(32 mm)
LEVER
HANDLE
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965703 1.0 (5/17)
3-1/2"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ashbee D3510184C and is the answer not in the manual?

Questions and answers

Related Manuals for DXV Ashbee D3510184C

Summary of Contents for DXV Ashbee D3510184C

  • Page 1: Installation Instructions

    Cross Handle Model D3510184C Lever Handle Model D3510180C Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
  • Page 2 SPOUT ASSEMBLY TEE ASSEMBLY Turn off hot and cold water CAUTION supplies before beginning. • Thread TEE BODY (1) COUPLING NUT (2) to SPOUT SHANK (3). • Insert SPOUT SHANK (1) through center hole of sink or mounting surface. Make sure RUBBER WASHER (2) is seated into groove in SPOUT ESCUTCHEON BASE (3).
  • Page 3 INSTALL POP-UP DRAIN FIG. 4a FIG. 4a FIG. 4b • A FOAM SEAL (1) is installed on underside of FLANGE (2). (Plumbers Putty may be used in place of FOAM SEAL (1) if desired.) • Drop FLANGE (2) into LAVATORY DRAIN (3). From below assemble RUBBER GASKET (4), PLASTIC WASHER (5) and LOCK NUT (6) onto DRAIN FLANGE (2).
  • Page 4 Ashbee ™ Widespread Lavatory Faucets MODEL NUMBERS Cross Handle D3510184C Lever Handle D3510180C H960551.XXX H960752.XXX H960752.XXX HANDLE CAP (HOT) POP-UP KNOB H960758.XXX M964511-YYY0A H960526.XXX CROSS HANDLE TAPERED HANDLE CAP (COLD) SET (HOT) CONNECTOR H960759.XXX CROSS HANDLE SET (COLD) M964573-YYY0A H960019.XXX AERATOR STRAIGHT LEVER H960141.XXX...
