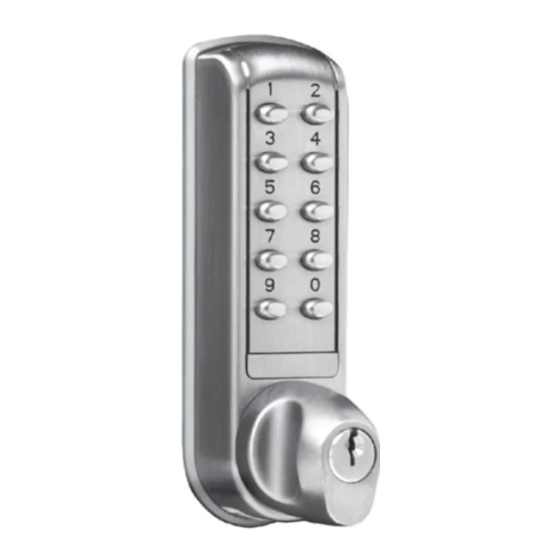

Briton 9365-990 Push Button Digital Lock
Installation Instructions
TOOLS REQUIRED
FOR INSTALLATION:
Power drill
25mm, 20mm & 8mm drill bits
Bradawl
Philips screwdriver size 2
Chisel - maximum 25mm
Hammer/Mallet
Stanley knife
Adhesive tape
Pencil
Tape measure

1. PREPARE DOOR

• Prepare door and install mortice lock as per template
on page two.

2. POSITIONING THE SPINDLE

• The spring-loaded spindle will fit doors between 35mm
and 50mm thick. For doors more than 50mm thick, ring
the Helpline for advice. The spring keeps the spindle firmly
engaged in the outside handle when the lock is assembled
on the door.
• Insert the spindle, with the spring on the external side,
through the 20mm hole in the door, and ensure that it
engages the mortice lock correctly.

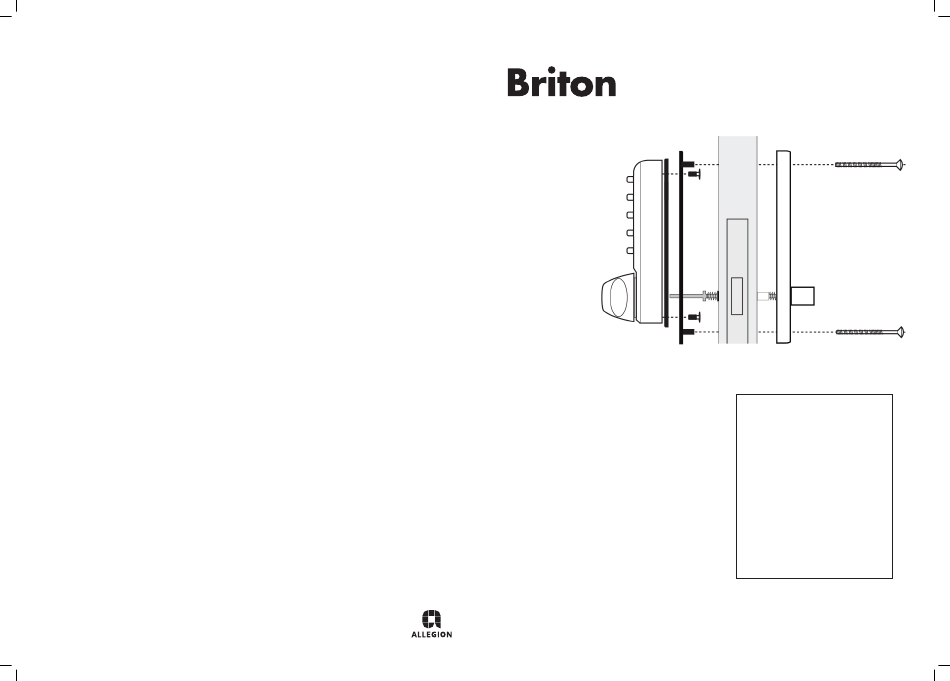

3. FIXING THE LOCK

Cut the fixing bolts to suit the door thickness, length of
bolts measured beneath the bolt head should be door
thickness plus 15mm.
DO NOT CLOSE THE DOOR UNTIL YOU ARE SURE
THAT THE CODE WORKS.

SPECIAL NOTES

You are advised to test lock
(see below) and familiarise yourself with
the instructions before starting work.
• Install the 2 x AAA cells supplied.
• Enter the factory Master Code, 1234
(note: when programming, # must prefix
the Master Code). The blue light will flash
and the front knob can be turned using
finger and thumb.
• Spindle adaptor - The lock is supplied
with a spindle adaptor. To use adaptor
slide onto the flat spindle making sure
the spindle is at the correct angle to
suit the hand of your door - See note 2.
Positioning the spindle.
