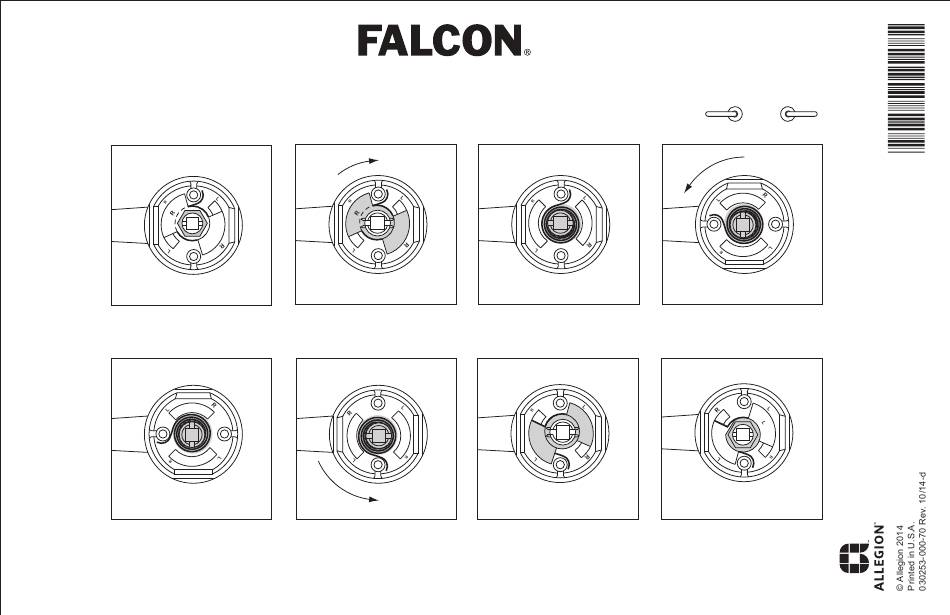

RE-HANDING INSTRUCTIONS FOR LM SERIES LOCK TRIM
Example shown is a right hand being changed to a left hand
Reverse sequence to change from left to right hand
Note: Inside trim is always opposite the outside trim
1. Holding lever as shown,
bend tab of lockwasher back
flat. Remove nut.
4. Remove spring and reinstall
with spring hook on opposite
side of post.
2. Holding lever securely, rotate
rose assembly clockwise
slightly, and remove plate and
lockwasher.
5. Holding lever securely,
rotate rose assembly
counterclockwise slightly
past 90 deg.
6. Reinstall plate with "L" side
up and in line with "L" on
rose assembly.
VIEWED FROM OUTSIDE
RH/RHR
LH/LHR
3. Using caution, allow rose
assembly to rotate counter-
clockwise to relieve spring
tension.
7. Reinstall lockwasher and nut.
Tighten nut and then back off
slightly until rose assembly
rotates freely under plate.
Bend up one tab of
lockwasher against nut.
