3 Description of the unit

3.1 Overview of the unit

3.2 Features

3.2.1 Characteristics

n
m
l
k
j

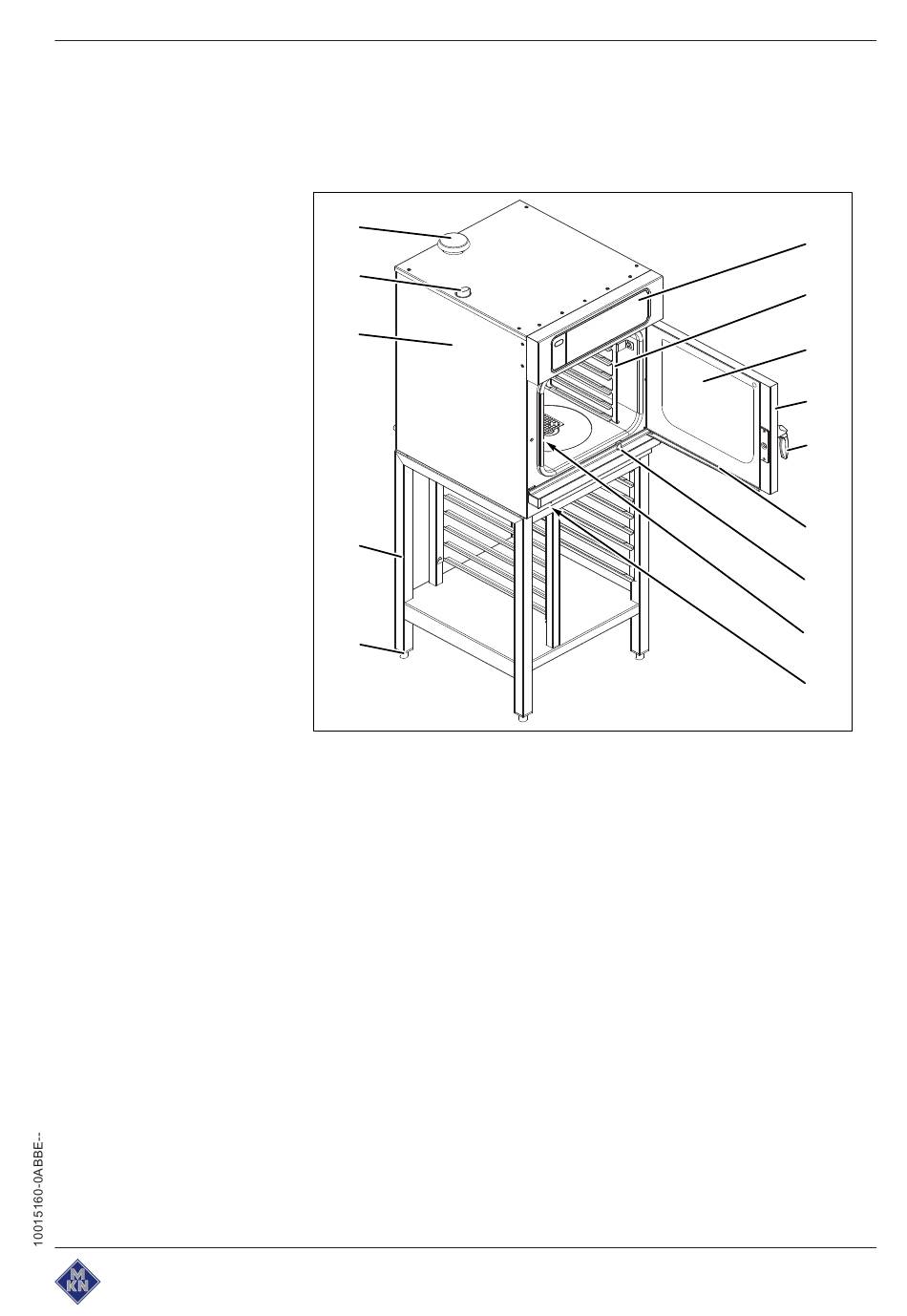

Image: SpaceCombi with base frame
a Operating control
b Support rack
c Insulated window
d Cooking zone door
e Door handle
f Discharge chute, door
g Discharge chute, unit
• 1-point core temperature sensor
• 4-point core temperature sensor (optional)
• Cooking zone door with hygienic glazing
• Single-stage door latch
• Power optimisation system (optional)
Operating instructions
Description of the unit
h Core temperature sensor
(covered)
i USB port (covered)
j Frame foot (adjustable)
k Base frame (optional)
l Housing
m Steam outlet connection fitting
n Air intake connection fitting
