Error Screens

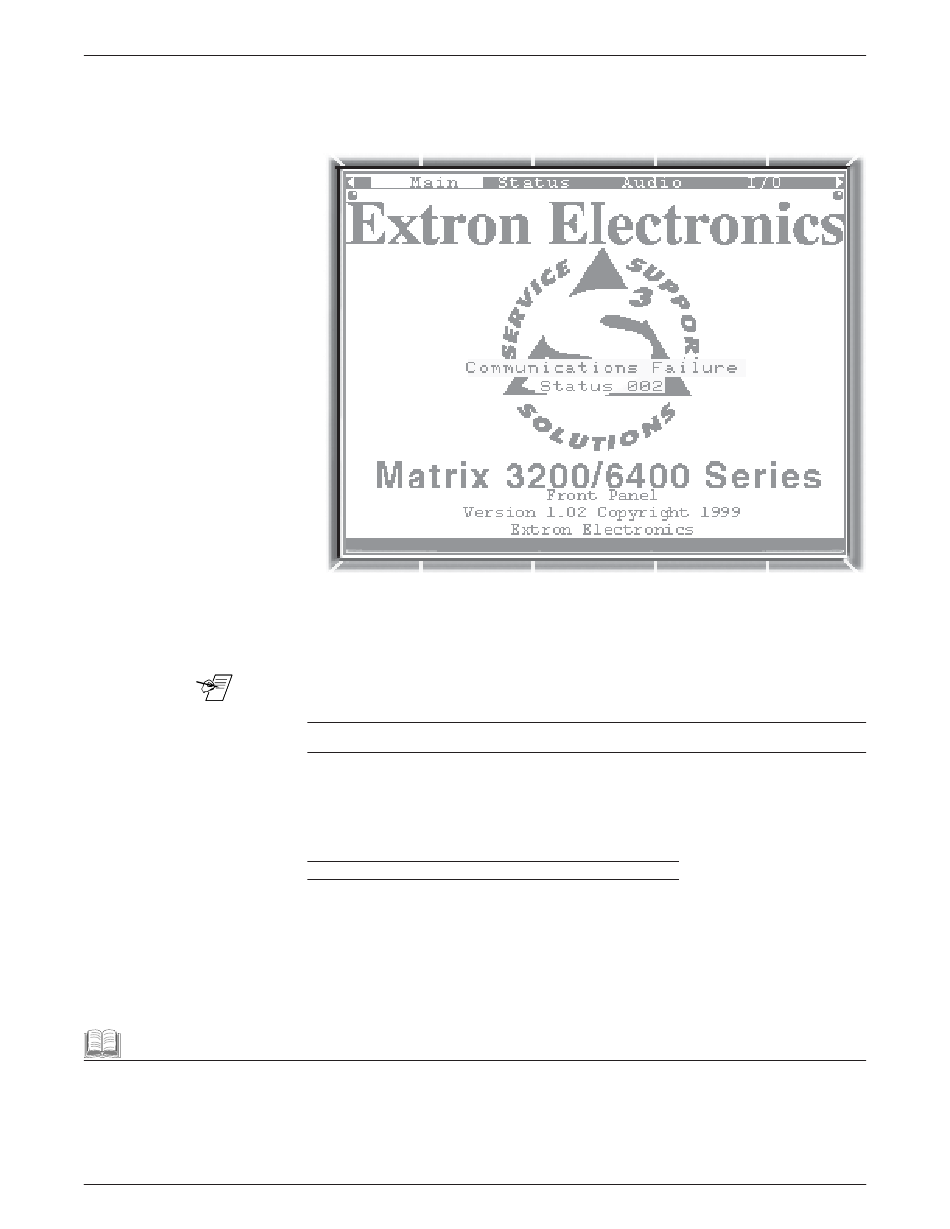

Figure 3-18. Error screen showing message, category and number
_______ Should an error occur, write this information down and call Extron support.
Terms
Tie – A connection between an Input and an Output.
Set of Ties – Connections between one Input and more than one Output.
Configuration – Any Tie, Set of Ties, or Sets of Ties between Input(s) and Output(s).
Active Configuration – The configuration that is currently being used by the matrix.
Global Preset – A configuration that has been stored that deal with physical input and output numbers (not virtual).
Room Preset – Virtual ties that have been configured and stored for use only by a specific room.
www.camboard.de
3-19
CAMBOARD Electronics
Using the FPC 1000 Front Panel Controller • Chapter 3
If an error occurs, the FPC 1000 returns to the Main menu display and flashes a
message in the center of the screen, similar to the one in Figure 3-18.
The first line is the error message "Communications Failure". The next line gives
a category (in this case, "Status") and a number.
If an FPC 1000 is connected to a BME other than address #0, an error message
will appear across the bottom of the Main menu screen. This could happen, for
example, if there is more than one FPC on a system. The error message is:
Unit probably not
If this message appears, the FPC cannot be used. Check that there is only one
FPC on the system and that it is installed in the BME with its address switch set
to #0 (master).
Tel. 07131 911201
Matrix 3200/6400 Series Switchers • FPC 1000 • User's Manual • Extron
Fax 07131 911203
the master BME.
