Chapter 3 • Using the FPC 1000 Front Panel Controller

Room Presets Menu

Press any menu title
button at any time
to "escape" without
making changes.
To get here from the Main Menu,
• Presets
Instruction message appears here >
Use option selections with buttons >

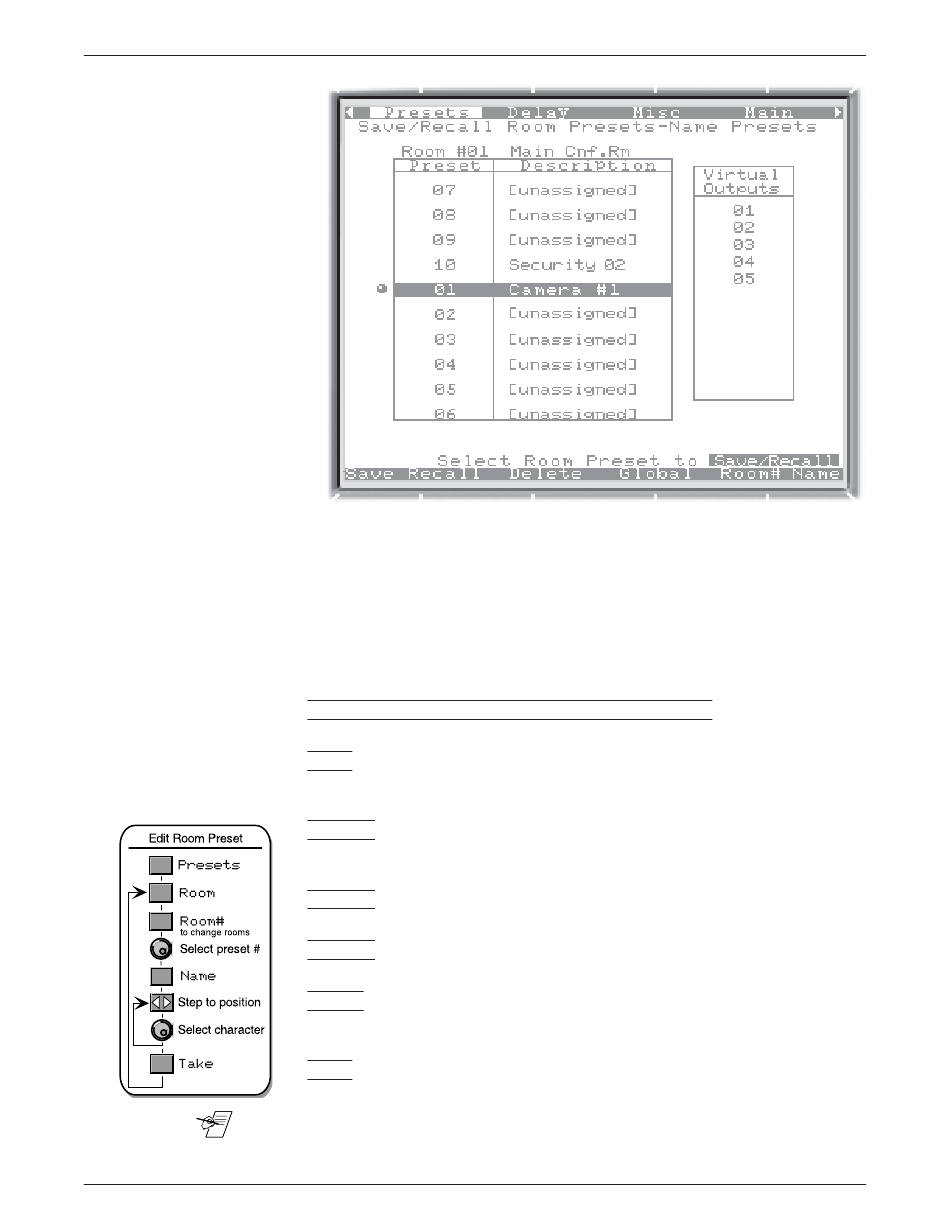

Figure 3-7. Room Presets menu
_______ Rooms cannot be created or reconfigured from the FPC 1000; that must be done
www.camboard.de
Extron • Matrix 3200/6400 Series Switchers • FPC 1000 • User's Manual
CAMBOARD Electronics
press:
• Room
The Room Preset menu will show room #01, with its 10 presets listed below it
and any virtual outputs to the right. Press Room# to select a different room with
its presets and virtual outputs listed. Room Preset #01 is highlighted in the center
of the screen. Use the speed knob to scroll through the ten selections. The
description at the top is: "Save/Recall Room Presets – Name Presets". The
instruction message at the bottom is: "Select Room Preset to Save/Recall". The
buttons at the bottom of the screen are:
Save Recall
Each of these options will bring up an appropriate menu.
S a v e
To review or edit, press Save. The menu to allow the name of the selected
preset to be changed. The knob symbol appears over the preset name.
R e c a l l
Press Recall to activate the selected Preset.
The response message is: "Preset recalled".
D e l e t e
Press this button to delete the selected Room Preset.
G l o b a l
To view global presets, press the Global button.
R o o m #
Press Room# to step through the ten room choices. As each room is selected,
its number and name are displayed above its ten possible presets.
N a m e
The instruction message is: "Enter Name – Take/ESC to Execute/Abort".
through RS-232 programming. However, rooms can be viewed, activated
(Recalled), deleted or renamed from the FPC 1000.
