A/V Mute Menu

Press any menu title
button at any time
to "escape" without
making changes.
Audio Mute/Unmute
Instruction message appears here >
Use option selections with buttons >

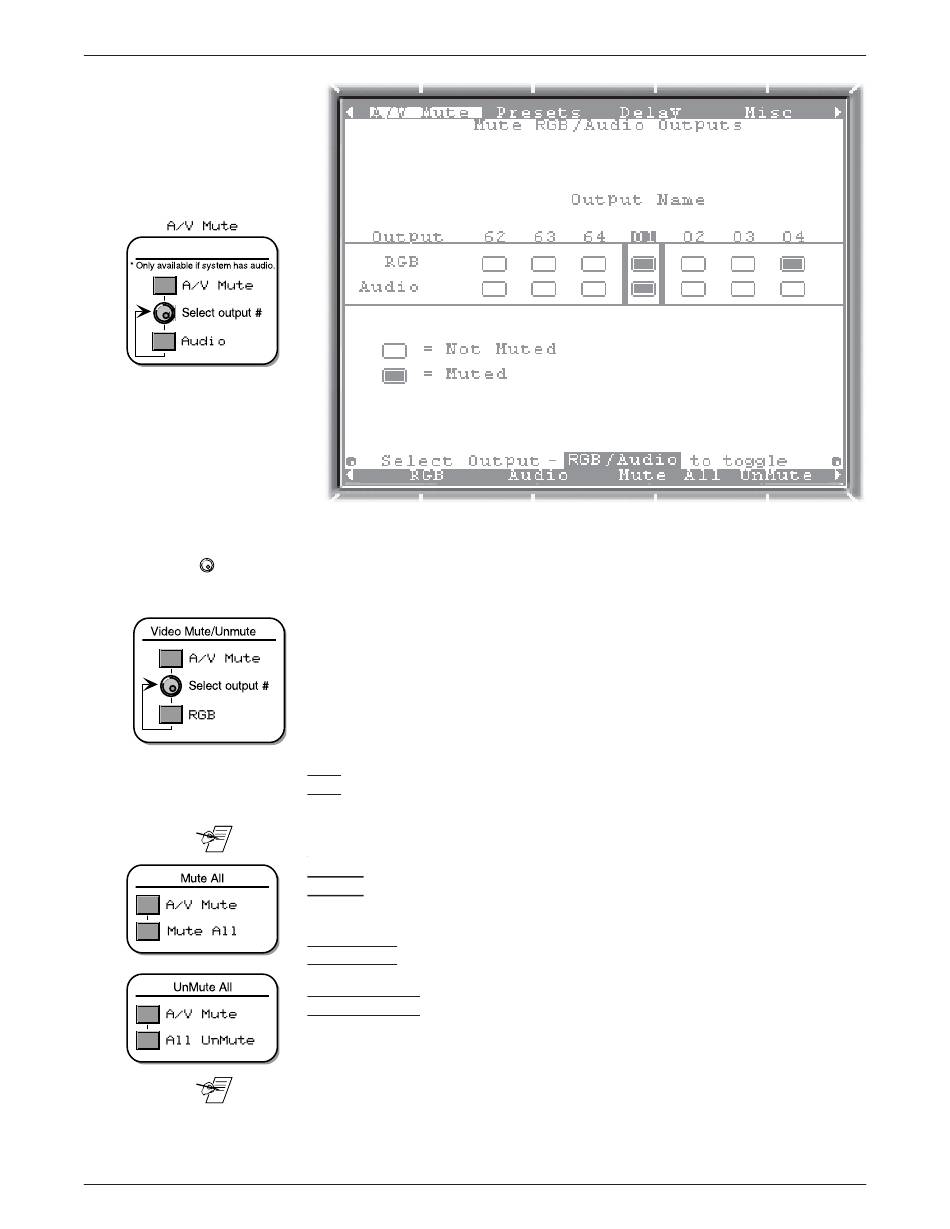

Figure 3-10. A/V Mute menu, with RGB and Audio Muted for Output 01.
________ Use the speed knob or the scroll buttons to select the output to be muted or
_______ This option does not operate with composite or S-video system.
_______ Unlike the buttons to the left of the front panel screen, any outputs that had
www.camboard.de
3-11
CAMBOARD Electronics
Using the FPC 1000 Front Panel Controller • Chapter 3
unmuted.
The A/V Mute screen above shows examples of muted and not muted (unmuted)
conditions on the left. Press RGB button to toggle the RGB mute function On or
Off for the selected output. (Composite video or S-video cannot be muted.)
Likewise, press the Audio button to toggle the audio mute function On or Off for
the selected output.
The other two mute buttons, Mute All and All UnMute, are global because they
affect all outputs. The mute functions in this menu operate differently from the
instant mute buttons on the panel to the left of the LCD screen (on Page 3-3).
R G B
Press this button to toggle RGB (video) Mute On or Off for the selected output.
A u d i o
Press this button to toggle Audio Mute On or Off for the selected output.
This option will not be available if the system has no audio.
Mute All
Press this button to mute both RGB and Audio for all outputs.
All UnMute
Press this button to unmute both RGB and Audio for all outputs.
previously been muted will not return to that state, but will be unmuted.
See page 3-3 for a description of the RGB Mute and Audio Mute "instant" buttons
that are separate from the LCD screen buttons.
