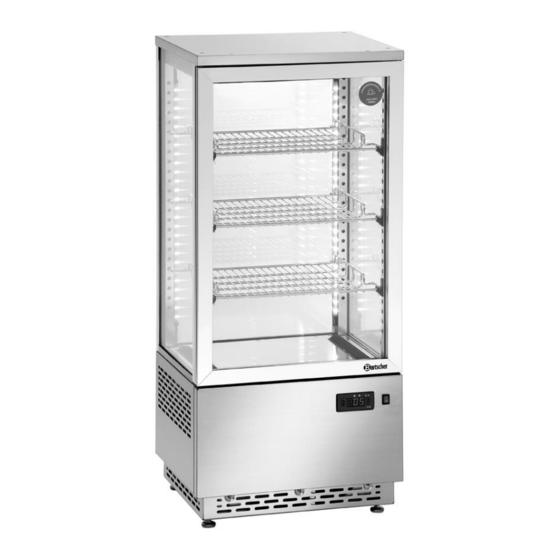

Bartscher 700478G Instruction Manual
  1. Manuals
  2. Brands
  3. Bartscher Manuals
  4. Refrigerator
  5. 700478G
  6. Instruction manual

Bartscher 700478G Instruction Manual

78l
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
78L
700478G
Original-Gebrauchsanleitung
V2/0218

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700478G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartscher 700478G

Summary of Contents for Bartscher 700478G

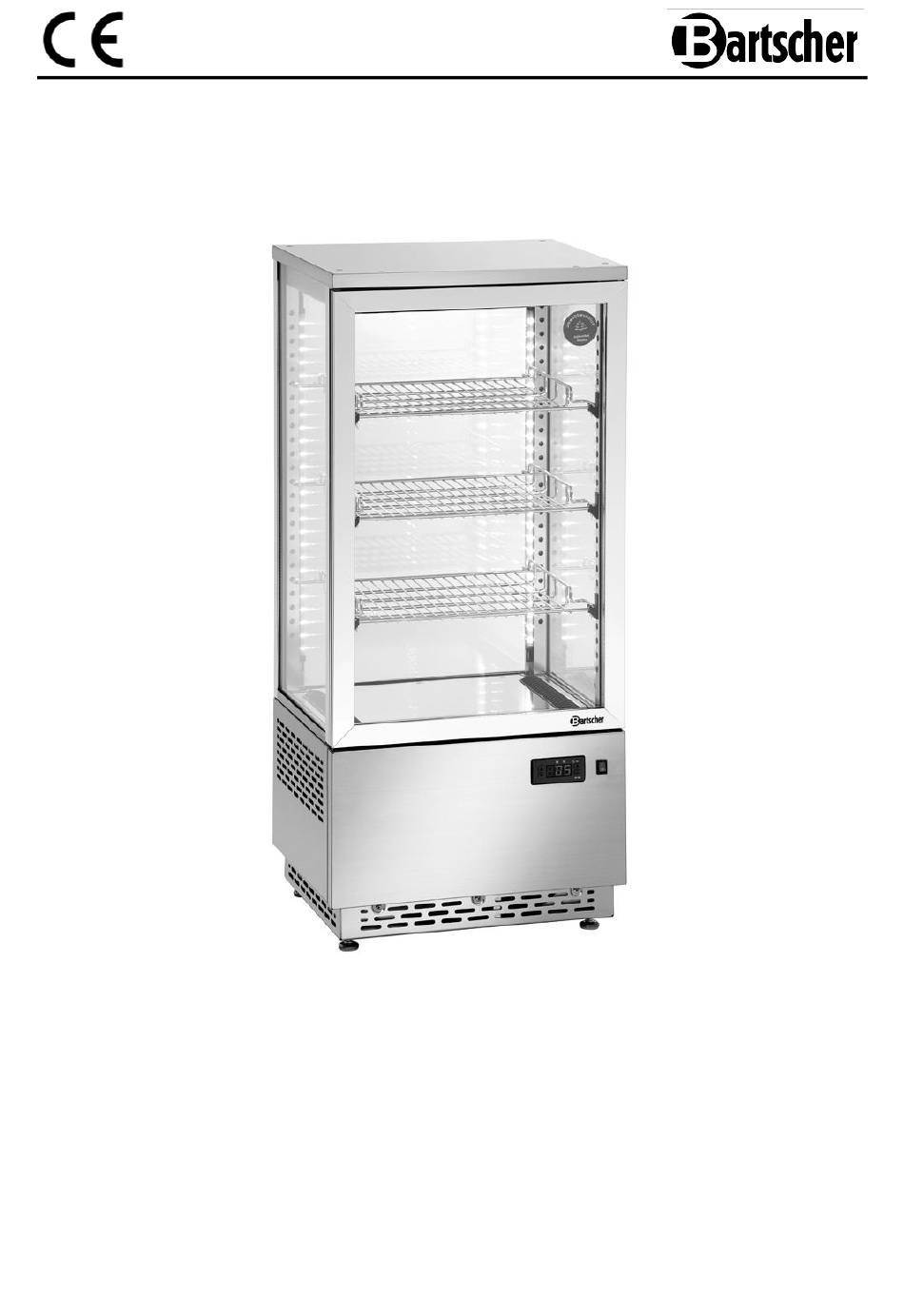

  • Page 1 700478G Original-Gebrauchsanleitung V2/0218...

  • Page 2: Table Of Contents

    5. Installation and operation ..................29 5.1 Installation ......................29 5.2 Operation ......................31 6. Cleaning ........................34 7. Possible Malfunctions .................... 35 8. Waste disposal ......................36 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120 33154 Salzkotten...

  • Page 3: Safety

    Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Safety Instructions

    FIRE HAZARD / FLAMMABLE MATERIALS HAZARD / EXPLOSION HAZARD! This symbol highlights potentially dangerous situations which could lead to injury or death. CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation.
  • Page 5  Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard!  Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. ...
  • Page 6  The supply cable must be disconnected from the socket only by pulling the plug.  Never carry or lift the device by the supply cable.  In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.

  • Page 7: Proper Use

     Do not store gasoline or other flammable substances in the vicinity of the device. The vapours may cause fire or explosion.  Do not store the explosive objects in the device, like cans with explosive work substances.  Do not allow for the cooling circuit damages. 1.3 Proper use The operational safety of the device is assured only in case of proper use, according to the operation manual.

  • Page 8: General Information

    2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.

  • Page 9: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

  • Page 10: Technical Data

    4. Technical data 4.1 Overview of parts Glass frame Grids (3) Lower baseplate ON/OFF switch Digital temperature regulator Lower casing Height adjustable feet (4) Ventilation holes Glass door LED lighting strip (4) - 27 -...
  • Page 11 Grids The height of the grids may be adjusted to the height of stored products. Place the grids at the desired height taking into account the following instructions. Rails for mounting grids at the desired height Grid bracket Grid 1. Mount the grid brackets at the desired height in the rails at the front of the frame.

  • Page 12: Technical Specification

    4.2 Technical specification Name Mini cooler 78L, stainless steel 700478G Code-No.:  ON/OFF switch  LED lighting Design:  Ventilated cooling  Automatic defrost Capacity: 78 litres Coolant: R600a 2 °C – 12 °C Temperature range: Climate class: Power: 0.18 kW / 230 V 50 Hz...
  • Page 13  Do not place the device in the vicinity of open fire, electric ovens, heating furnaces, or other heat sources like direct sunlight. High temperature may damage the device surface and may impact the cooling capacity and energy consumption.  When placing the device, make sure that the ambient temperature is in the range from 10 °C to 32 °C.

  • Page 14: Operation

    5.2 Operation Preparation  Before the first use, clean the device thoroughly following the instructions in section 6 „Cleaning“.  Connect the device to a single grounded socket.  Turn the device on using the ON/OFF switch located on the front of the lower casing. The digital display will show the set temperature value, and the LCD cooling indicator will come on.
  • Page 15 LCD indicators LCD cooling indicator: This indicator comes on during the cooling process, remains off when the cooling temperature is stable and flashes during the activation delay mode. LCD defrost indicator: This indicator comes on during the defrosting process, goes off when the defrosting process is finished and flashes during the defrost delay mode.
  • Page 16 Defrosting Automatic defrost The device’s automatic defrost cycle runs 4 times every 24 hours. Manual defrost When the cooling capacity decreases, e.g. after opening the door for a long time, it is necessary to perform the manual defrosting. To start the defrosting, press the button and hold it pressed for 6 seconds.

  • Page 17: Cleaning

    6. Cleaning WARNING! Before cleaning, switch the device off via ON/OFF switch and disconnect it from the power supply (pull the plug out the socket!). Do not use pressurized water jest for cleaning! Protect the device from the water penetration. CAUTION! Never use hot water for cleaning the device! Never use aggressive or coarse cleaning agents such as scouring powder,...

  • Page 18: Possible Malfunctions

    7. Possible Malfunctions In case of malfunction, disconnect the device from its power source. Before contacting the service or sales agent, verify - based on the table below - whether it is possible to eliminate disruption in operation. Malfunction Cause Solution ...

  • Page 19: Waste Disposal

    For that purpose disconnect device from mains supply and remove mains connection cable from the device. The propellant used in the device is flammable. Its utilization should be realized according to the valid regulations. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax:...
