Summary of Contents for Bartscher GTK3-121

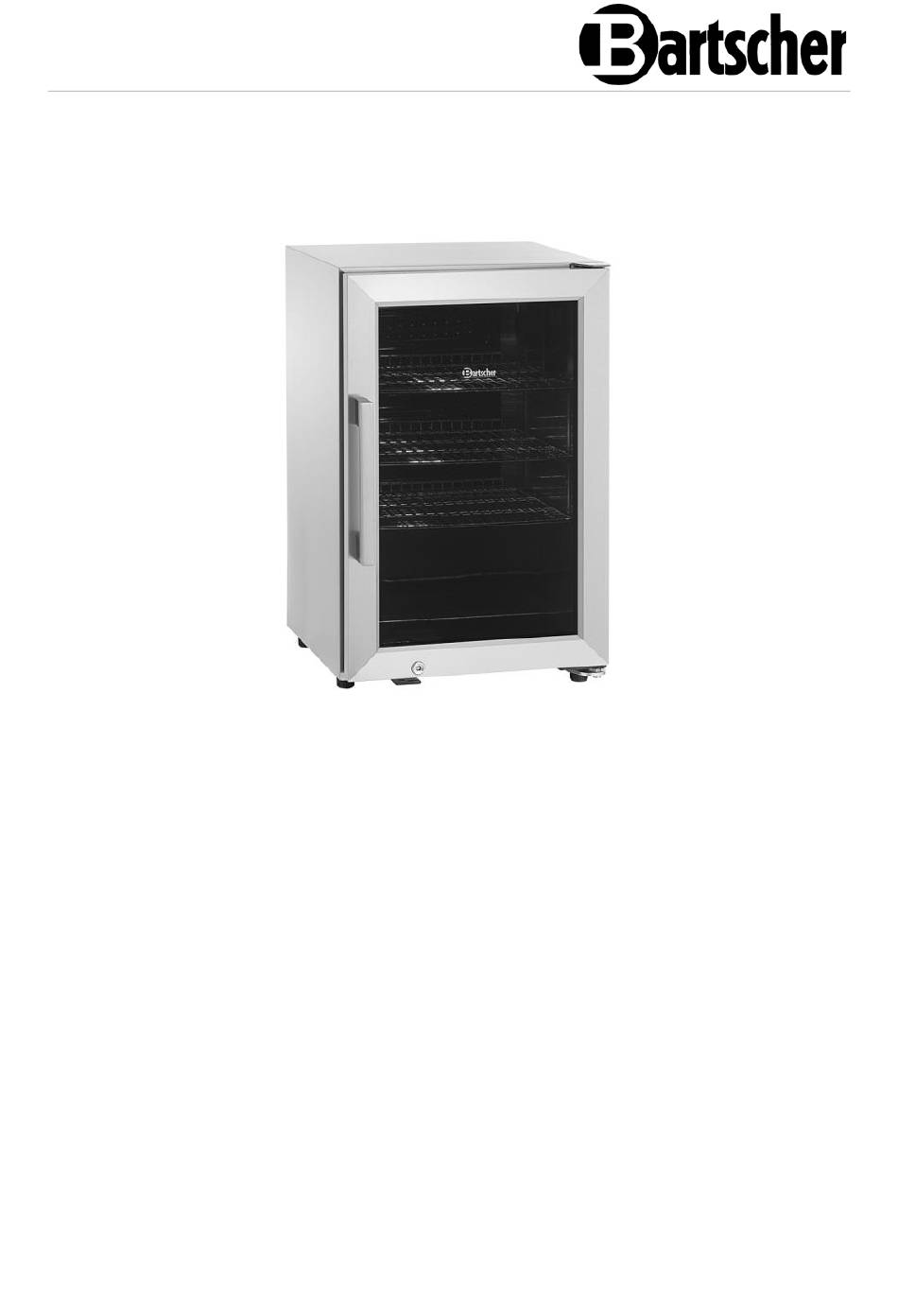

- Page 1 GTK3-121 700851...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-09-18...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Z najom ość w szystkich zaw artyc h w ni ej wsk az ówek dotycz ącyc h bezpi ecz eńs twa i obsł ugi stanowi w arunek bez pi ecz nej i prawi dłow ej pr acy z urządz eni em. Ponadto należy przestrzeg ać odpowi ednio do mi ejsca użytk owani a urządz eni a l okal nyc h przepis ów dotycz ącyc h z apobieg ani a wy padk om oraz og ólnyc h zas ad BH P. This ins truc tion m anual is an integral part of the pro duct and m ust be kept i n the imm edi ate vici nity of the devic e for installati on, operation, m aintenanc e and cleani ng pers onnel to acc ess at all times . If the devic e is pass ed on to a thir d pers on, the operating instructions m us t al so be handed over. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Halten Sie Verpack ungsmateriali en und Styropor teile v on Ki ndern fern. They m ay g et em broiled and suffocate. Operating Personnel • The device can be used by children of 8 years old and older, as well as by people with reduced physical, sensory or mental abilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on safe use of the device and possible risks.
-
Page 8: Intended Use
Safety Intended Use This appliance is only intended for use described in the operating instructions, with the supplied and approved components. Any other use is considered against the intended purpose. The manufacturer shall not be liable for any damage due to unintended use. In such cases the responsible party shall only be the user/operator The following is an intended purpose –... -
Page 9: General Information
General information General information Liability and Warranty The appliance was built in accordance with the current state of the art and recognized technical safety principles. Nevertheless, during its use, there may be a threat to the health and life of the user or bystanders, or the danger of damage to the device or other assets. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Glass-doored refrigerator GTK3- Name: 700851 Art. No.: Material: CNS 18/10 | tinted glass Inner material: plastic Volume, in l: Usable volume in sq.m: 0,19 Temperature range, min.– max., in °C: 2 - 14 Ambient temperature, min.– max., in °C: 16 - 38 Amount of coolant, in kg: R600a / 0,023... - Page 12 – possibility to be built-in provided there is a min. 15 cm of free space around More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2018, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model.
-
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. LED lighting 2. Ventilation openings 3. Control elements 4. Glass door 5. Glass pane door handle 6. Glass door seal 7. Lock 8. Foot (4 pcs) 9. Bottom display surface 10. -
Page 14: Functions Of The Appliance
Installation and operation Functions of the Appliance In the compact glass-doored refrigerator with a modern design, suitable beverages and food can be kept cool on 3 shelves behind the glass door with UV filter. The optimum cooling temperature can be set steplessly via a rotary controller inside the appliance. - Page 15 Installation and operation • Do not place the appliance in direct sunlight or in the vicinity of heat sources (cooker, radiator, heating devices, etc.). Heat sources may negatively affect power consumption, and restrict functions of the appliance, too. • The el ectric soc ket s hould be easily accessibl e s o it is pos sibl e to quic kly disconnect the pow er c ord when nec ess ary. The el ectric soc ket s hould be easily accessibl e s o it is pos sibl e to quic kly disconnect the pow er c ord when nec ess ary.
-
Page 16: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 17 Installation and operation Control Elements Fig. 3 14. LED lighting ON/OFF switch 15. Temperature controller Appliance Operation Temperature Setting 1. By rotating the temperature controller (15, Fig. 2) inside the appliance, set the selected temperature to one of available values in the range of 1–6. The temperature can be set between 2°C and 14°C.
-
Page 18: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance The operator must ensure that the device and its safety components are kept in good condition. Control and safety systems should be checked for their effectiveness. Maintenance, cleaning and repairs must only be carried out by suitably trained and specialised personnel. -
Page 19: Maintenance
Cleaning and Maintenance Door Seal 1. Clean the door seal regularly only with a soft, damp cloth. 2. In order to assure correct closing of the glass door and operation of the appliance, make sure that particularly the door seal is clean. Housing 1. -
Page 20: Possible Malfunctions
Possible Malfunctions Spare Parts Spare parts for the purpose of repairing this appliance, as stipulated in Annex II to the REGULATION (EU) 2019/2018, are available for at least eight years, counted from the date of introduction of the last appliance of this model to market. Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to... - Page 21 Possible Malfunctions Malfunction Possible Cause Solution Lighting does not Damaged lighting Contact the service company work Appliance is Appliance is not placed Place the appliance on an even vibrating on even surface surface Appliance Loose elements (e.g. Check all screws and nuts, operation is too nuts/screws) tighten if necessary...
-
Page 22: Disposal
Disposal The following phenomena are not malfunctions: Various sounds that are generated by the appliance during operation are a normal phenomenon and do not indicate any malfunctions. – Splashing, bubbling and hums are generated by the coolant that circulates the system. –...
