Summary of Contents for Bartscher 700183

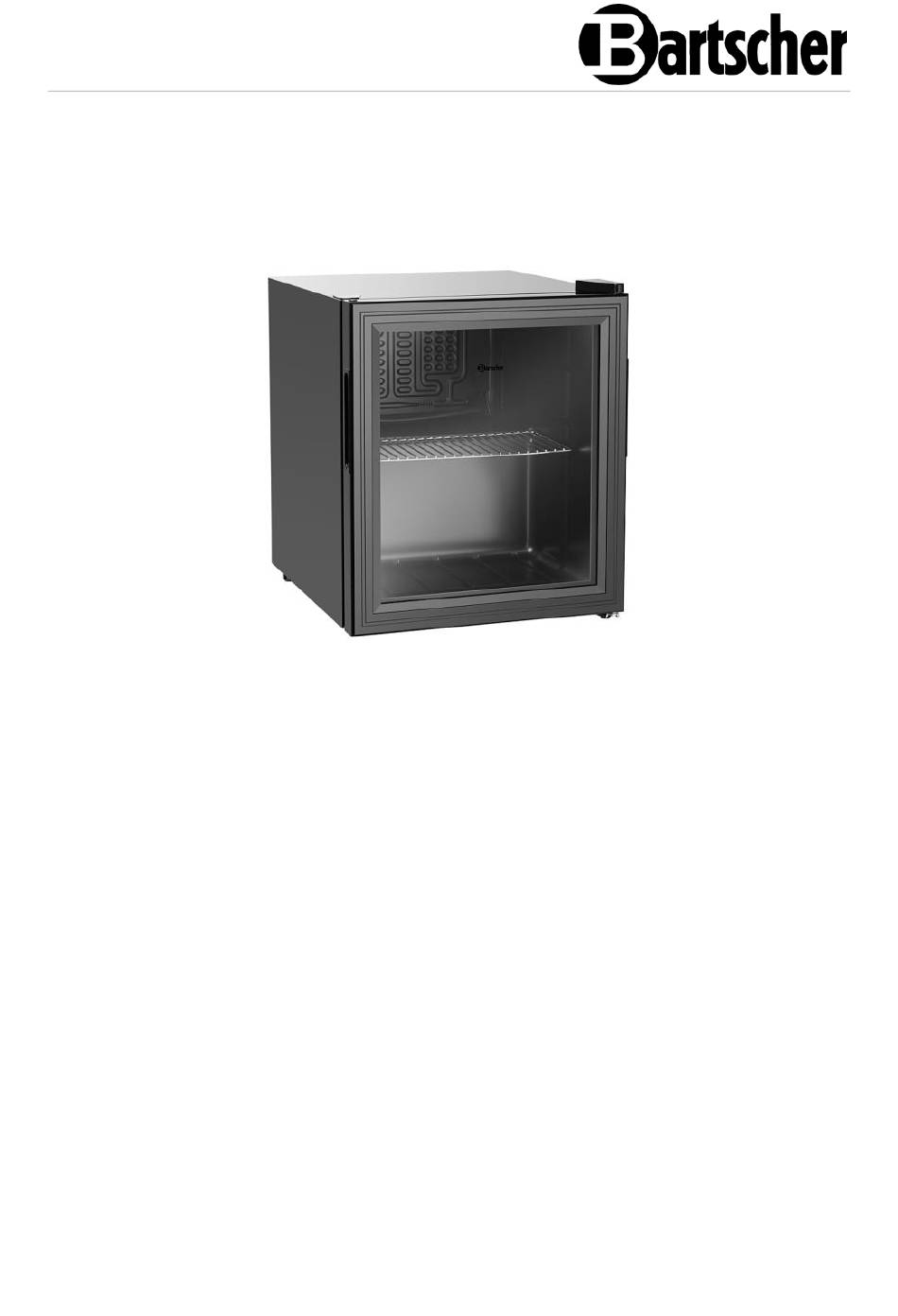

- Page 1 700183...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2023-02-17...
-
Page 3: Table Of Contents
List of Components of the Appliance ............. 11 Installation and operation ................12 Installation ....................12 Operation ....................16 Cleaning and Maintenance ................18 Safety Instructions for Cleaning ............. 18 Cleaning ....................18 Maintenance ..................19 Possible Malfunctions .................. 20 Disposal ....................... 22 700183 1 / 22... -
Page 4: Safety
You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 22 700183... -
Page 5: Safety Instructions
Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 700183 3 / 22... - Page 6 (candles or heaters) nor with any other means. Vapour produced may cause short-circuit and too high temperatures may damage the appliance. • All ventilation slots should not be obstructed during operation. • Never attempt to damage cooling installation of the appliance. 4 / 22 700183...
- Page 7 • Do not introduce any changes in the appliance nor modify it. • Do not drill hole in the appliance nor install any objects on it. • Do not place any heavy objects on the appliance. 700183 5 / 22...
-
Page 8: Intended Use
The following is an unintended use: – Storing flammable or explosive objects and liquids, such as ether, petroleum or adhesives; – Storing explosive materials, like sprays filled with flammable propellants; – Storing pharmaceutical products or preserved blood; – Storing live pets. 6 / 22 700183... -
Page 9: General Information
Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 700183 7 / 22... -
Page 10: Transport, Packaging And Storage
– in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 8 / 22 700183... -
Page 11: Technical Data

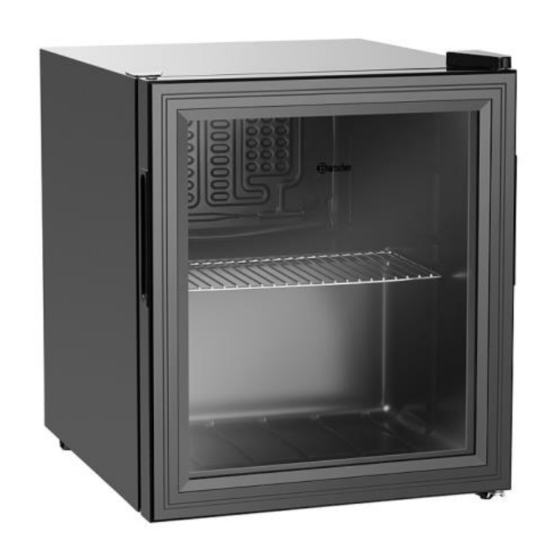

Technical Data Technical Data Technical Specifications Name: Glass-doored refrigerator 46 700183 Art. No.: Material: galvanized steel sheet Inner material: plastic Volume, in l: Temperature range, min.–max., in °C: 4 - 18 Temperature control, levels: Ambient temperature, max., in °C: Coolant, amount in kg:... -
Page 12: Functions Of The Appliance
Thanks to the height-adjustable shelves, it is possible to load it according to your needs. Also, in the self-service area of kiosks, snack bars or petrol stations, the appliance is an ideal solution for storing small refrigerated food items in a small space. 10 / 22 700183... -
Page 13: List Of Components Of The Appliance
3. Door handle recess (2 pcs) 4. Appliance door 5. Rear mounting rail 6. Front leg (2 pcs), height-adjustable 7. Bottom display area 8. Grate (shelf) 9. Power cord 10. Temperature controller 11. Compressor 12. Condensed water drip tray 700183 11 / 22... -
Page 14: Installation And Operation
(inside or at the back of the appliance) and in the 'Technical data' section of this manual. • Do not use the appliance in unheated rooms nor on a balcony. 12 / 22 700183... - Page 15 If maintaining the above-mentioned minimum clearances is not possible, fix a suitable insulation plate for it to reflect heat radiation. Fig. 2 ATTENTION! If the provided clearance values are not observed, the power consumption rises or the compressor overheats. 700183 13 / 22...
- Page 16 8. Loosen the screws and remove the upper door hinge. 9. Place the upper door hinge on the opposite side and tighten with screws. 10. Re-fix the door hinge cap. 11. Ensure that the door is in the upright position and can be easily closed. 14 / 22 700183...
- Page 17 15 minutes. • Ensure that the plug is accessible after installing the appliance. • Ensure that the mains plug is not crushed or damaged by the rear of the appliance. 700183 15 / 22...
-
Page 18: Operation
5 – min. temperature setting Fig. 4 NOTE! To save energy and avoid wasting food, the temperature controller should be set as follows: – levels 1–2 in winter – levels 4–5 in summer – level 3 in intermediate seasons 16 / 22 700183... - Page 19 Fig. 5 Switching the Appliance OFF 1. If the appliance is not used any more, rotate the temperature controller to '0' position (10, Fig. 1). 2. Disconnect the appliance from power supply (pull the plug out). 700183 17 / 22...
-
Page 20: Cleaning And Maintenance
8. Clean the door and the appliance door seal of the appliance with a soft, damp cloth. 9. Dry washed surfaces thoroughly afterwards. 10. After cleaning, leave the door open for the appliance to dry completely. 18 / 22 700183... -
Page 21: Maintenance
Never clean the compressor with water! Use a soft, dry brush, electrostatic cloth or vacuum cleaner. Maintenance Let the appliance to be inspected by professional technician at least once a year or as required. 700183 19 / 22... -
Page 22: Possible Malfunctions
Door is not closed properly Close the door tightly; limit or it has been opened for the door opening time to too long minimum Damaged or deformed door Contact the service seal company 20 / 22 700183... - Page 23 – splashing, bubbling and hums are generated by the coolant that circulates the system. – short, louder whirring/hooting or clicking sounds may be heard when the compressor of the appliance starts. 700183 21 / 22...
-
Page 24: Disposal
Electrical appliances should be returned to designated collection points. Coolant The propellant used in the appliance is flammable. It should be utilised pursuant to national regulations in force. 22 / 22 700183...
