Summary of Contents for Bartscher 700932

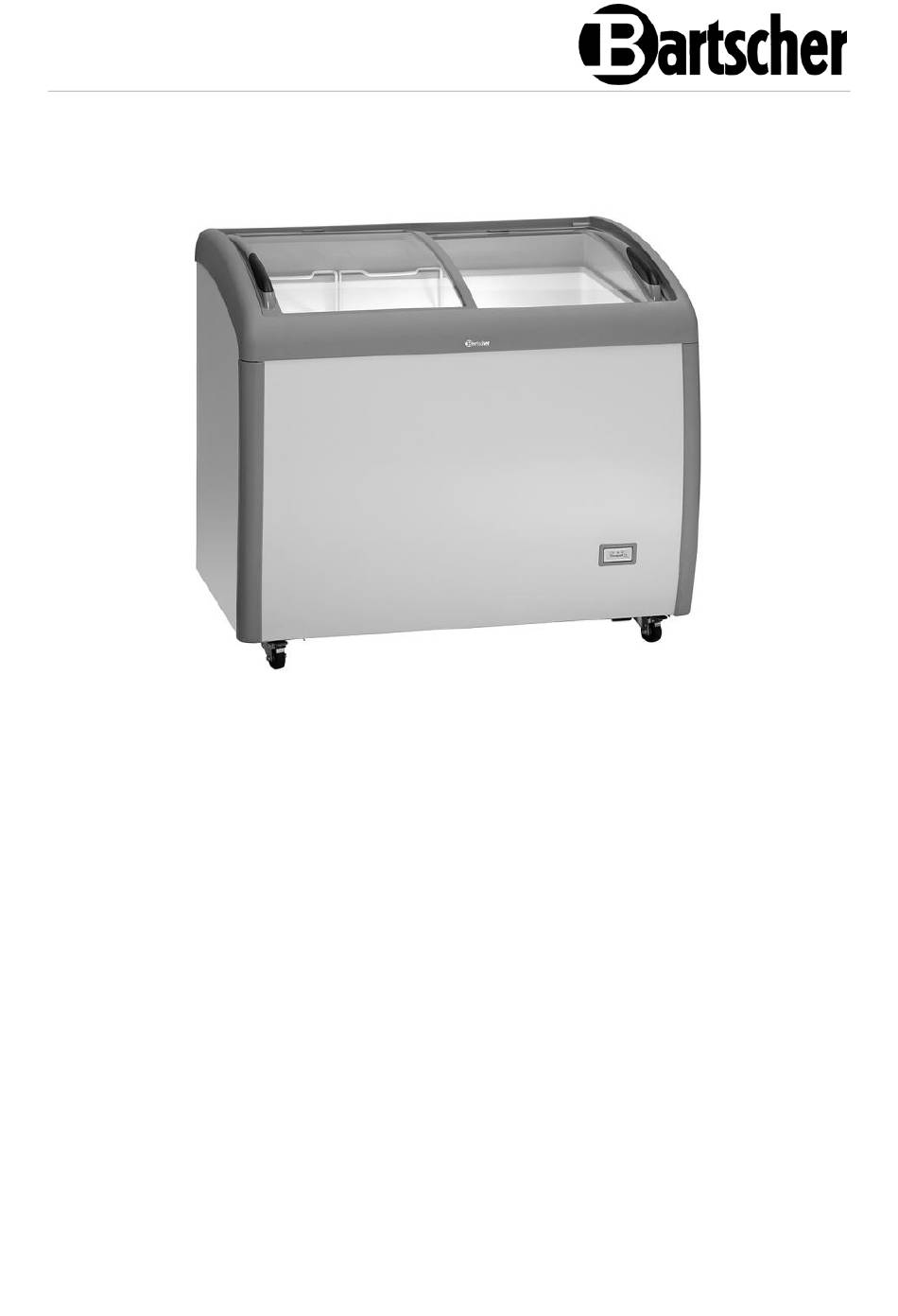

- Page 1 300L 700932...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-10-26...
-
Page 3: Table Of Contents
List of Components of the Appliance ............. 11 Installation and operation ................12 Installation ....................12 Operation ....................13 Cleaning and Maintenance ................16 Safety Instructions for Cleaning ............. 16 Cleaning ....................16 Possible Malfunctions .................. 18 Disposal ....................... 20 700932 1 / 22... -
Page 4: Safety
You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 22 700932... -
Page 5: Safety Instructions
Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 700932 3 / 22... - Page 6 • Children should be supervised to ensure that they are not playing with or switching the appliance on. • Children aged 3 to 8 may load and unload the refrigerator. 4 / 22 700932...
- Page 7 • Do not introduce any changes in the appliance nor modify it. • Do not drill hole in the appliance nor install any objects on it. • Do not place any heavy objects on the appliance. 700932 5 / 22...
-
Page 8: Intended Use
The following is an unintended use: – Storing flammable or explosive objects and liquids, such as ether, petroleum or adhesives; – Storing explosive materials, like sprays filled with flammable propellants; – Storing pharmaceutical products or preserved blood. 6 / 22 700932... -
Page 9: General Information
Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 700932 7 / 22... -
Page 10: Transport, Packaging And Storage
– in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 8 / 22 700932... -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Ice-cream cabinet 300L 700932 Art. No.: Material: steel plate, painted; plastic Inner material: plastic Volume, in l: Number of baskets: Basket dimensions (W x D x H), in mm: 250 x 520 x 200 Temperature range, min.–max., in °C:... -
Page 12: Functions Of The Appliance

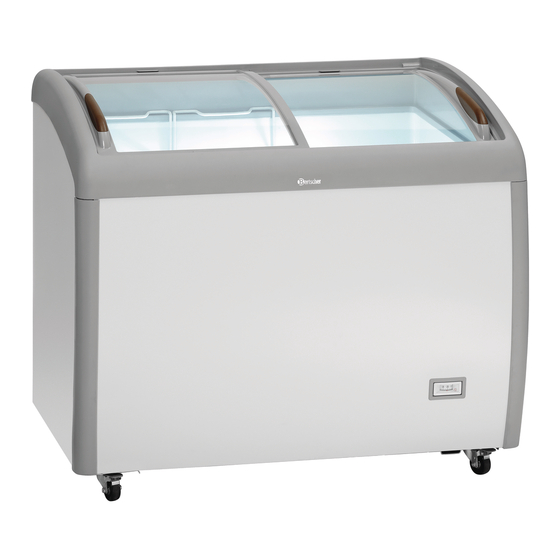

Ice-cream cabinet with LED lighting and volume of 300 litres is intended for storing ice-cream and may be located in a check-out register area of a supermarket, at a gas station or in a small retail store. 10 / 22 700932... -
Page 13: List Of Components Of The Appliance
2. Basket (2 pcs) 3. MAX marking 4. Condensate water drain opening 5. Sliding lid (2 pcs) 6. Housing 7. Operating elements 8. Ventilation openings 9. Analogue temperature display 10. Swivel castors (4 pcs, 2 with brakes) 700932 11 / 22... -
Page 14: Installation And Operation
In order to avoid damage to the compressor, do not tilt the appliance more than 45° when positioning or transporting it. • If the appliance is to be relocated, follow the instructions below: – switch the appliance off; – disconnect the plug from the socket; 12 / 22 700932... -
Page 15: Operation
Make sure that ventilation openings inside the appliance are not obstructed. • If the appliance is switched off for an extended period, remove all food products, clean the appliance and leave the sliding lids open. Before First Use 700932 13 / 22... - Page 16 1. If needed, use the ON/OFF switch (14) to switch the LED lighting on (ON position) or off (OFF position). Temperature Control The temperature may be changed by rotating the temperature controller steplessly. The adjustment is possible only with the use of a screwdriver. 14 / 22 700932...
- Page 17 For a prolonged ice-cream storage use the setting of approx. -18°C. CAUTION! If the ice-cream storage temperature will not be kept, they may perish. Switching the Appliance Off After use, disconnect the appliance from the socket (pull the plug out). 700932 15 / 22...
-
Page 18: Cleaning And Maintenance
5. Drain the condensate through the drain opening inside the appliance, screwing the nut out and pulling the plug out (to the outside) at the back wall of the appliance. 16 / 22 700932... - Page 19 Maintenance We recommend you to have the appliance serviced at least once a year; if needed, we recommend entering into a service agreement. 700932 17 / 22...
-
Page 20: Possible Malfunctions
Sliding lid is not entirely Close the sliding lid closed or has been open for completely too long Limit the opening time to minimum 18 / 22 700932... - Page 21 Spare parts for the purpose of repairing this appliance, as stipulated in Annex II to the REGULATION (EU) 2019/2024, are available for at least eight years, counted from the date of introduction of the last appliance of this model to market. 700932 19 / 22...
-
Page 22: Disposal
Electrical appliances should be returned to designated collection points. Coolant The propellant used in the appliance is flammable. It should be utilised pursuant to national regulations in force. 20 / 22 700932...
