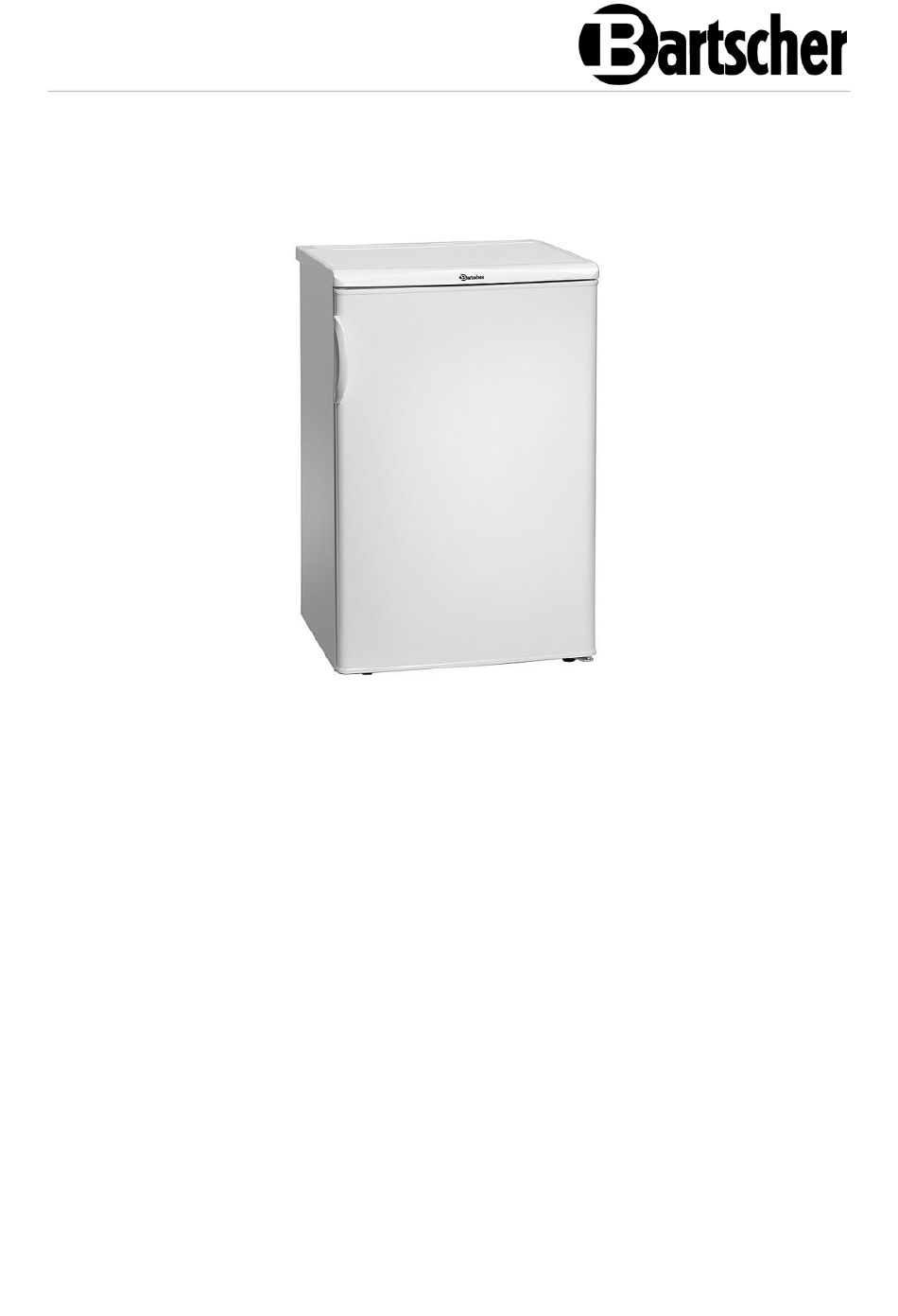

- Page 1 Bartscher Compact 700274...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2022-11-24...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle un d N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • Cleaning and user maintenance may not be performed by children. • Children that are 8 or younger may not get close to the appliance nor the power cord. Improper Use • Unintended or prohibited use may cause damage to the appliance. •...
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling and storage of suitable beverages and food products. The appliance is intended for operation in maximum ambient temperature of 32°C and relative humidity of 65%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Storage refrigerator Bartscher Name: Compact 700274 Art. No.: Material: steel, painted Inner material: plastic Volume, in l: Temperature range, min.–max., in °C: 0 - 8 Temperature control, levels: Ambient temperature, min.–max., in °C: 16 - 32... - Page 12 • Height adjustment: 0–15 mm More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2016, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. 10 / 26...
-
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Temperature controller 2. Internal LED lighting switch 3. Door handle 4. Appliance door 5. Door seal 6. Feet (4 pcs) 7. Cleaning tool for condensed water 8. Shelves (3 pcs) drain tray 9. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. - Page 15 Installation and operation • In order to avoid damage to the compressor, do not tilt the appliance more than 30° when positioning or transporting it. • If the appliance is to be relocated, follow the instructions below: – disconnect the plug from the socket; –...
- Page 16 Installation and operation Fig. 2: Side view Fig. 3: Top view with doors of the appliance open • The ventilation opening in the top part of the cooler may not be obstructed; it is necessary to provide for uninterrupted air circulation. •...
- Page 17 Installation and operation • If needed, adjust height by rotating front feet (Fig. 4): – clockwise, to raise the front part of the appliance; – counter-clockwise, to lower the front part of the appliance. • If the refrigerator is set with very minute tilt Fig.
- Page 18 Installation and operation • Always pay attention to the number of washers on bearing pivots and screws. • Always align the door carefully so that it closes tightly. • When adapting, proceed as follows. Fig. 5 1. Remove the bracket (1, Fig. 5) and undo screws (2). 2.
- Page 19 Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •...
-
Page 20: Operation
Installation and operation Operation Tips for the user • Shelves may be positioned at various heights. Arrange them adequately to the size of beverage/containers with food product, so that the inner space of the appliance is used optimally. • Beverages and food products in containers should be arranged on the shelves so that proper distances between them allow for sufficient air circulation inside the appliance. - Page 21 Installation and operation Before First Use 1. Prior to first operation, clean the appliance and its equipment according to instructions in section 6 'Cleaning'. 2. To end with, dry the appliance and accessories thoroughly. 3. Introduce the shelves into the appliance at the selected height.
- Page 22 Installation and operation Temperature Control The temperature is set by rotating the temperature controller (Fig. 7) in the inner chamber of the appliance. The temperature is indicated by the settable point next to the rotary temperature controller. Fig. 7 The temperature may be set in the range of 0–5: 0 —...
-
Page 23: Cleaning And Maintenance
Cleaning and Maintenance Internal LED Lighting The internal LED lighting switches on when the appliance door is opened by activating a switch on the control unit. When the appliance door is closed, the internal LED lighting is switched off. Switching the Appliance OFF 1. - Page 24 Cleaning and Maintenance 5. The discharge opening of the condensed water drain tray should be cleaned regularly with the provided cleaning tool. Fig. 8 6. Wipe the internal and external surfaces of the appliance with a soft, damp cloth. Use mild cleaning agent if required. 7.
- Page 25 Cleaning and Maintenance Drip Water Evaporation Ice droplets that form at the back of the cooling chamber melt during compressor breaks, and the melting water flows through the condensation water collection trough to the condensation water drip tray on the compressor, where it evaporates. LED Interior Lighting Lamp Replacement 1.
-
Page 26: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. - Page 27 Possible Malfunctions Error Possible Cause Solution Noise level of the Appliance is not placed on Place the appliance on even appliance rises even surface surface Appliance touches walls or Keep sufficient clearance other objects from walls or other objects Objects in the appliance in Assure sufficient clearance contact with each other between objects...
-
Page 28: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
