Summary of Contents for Bartscher 700 GN211

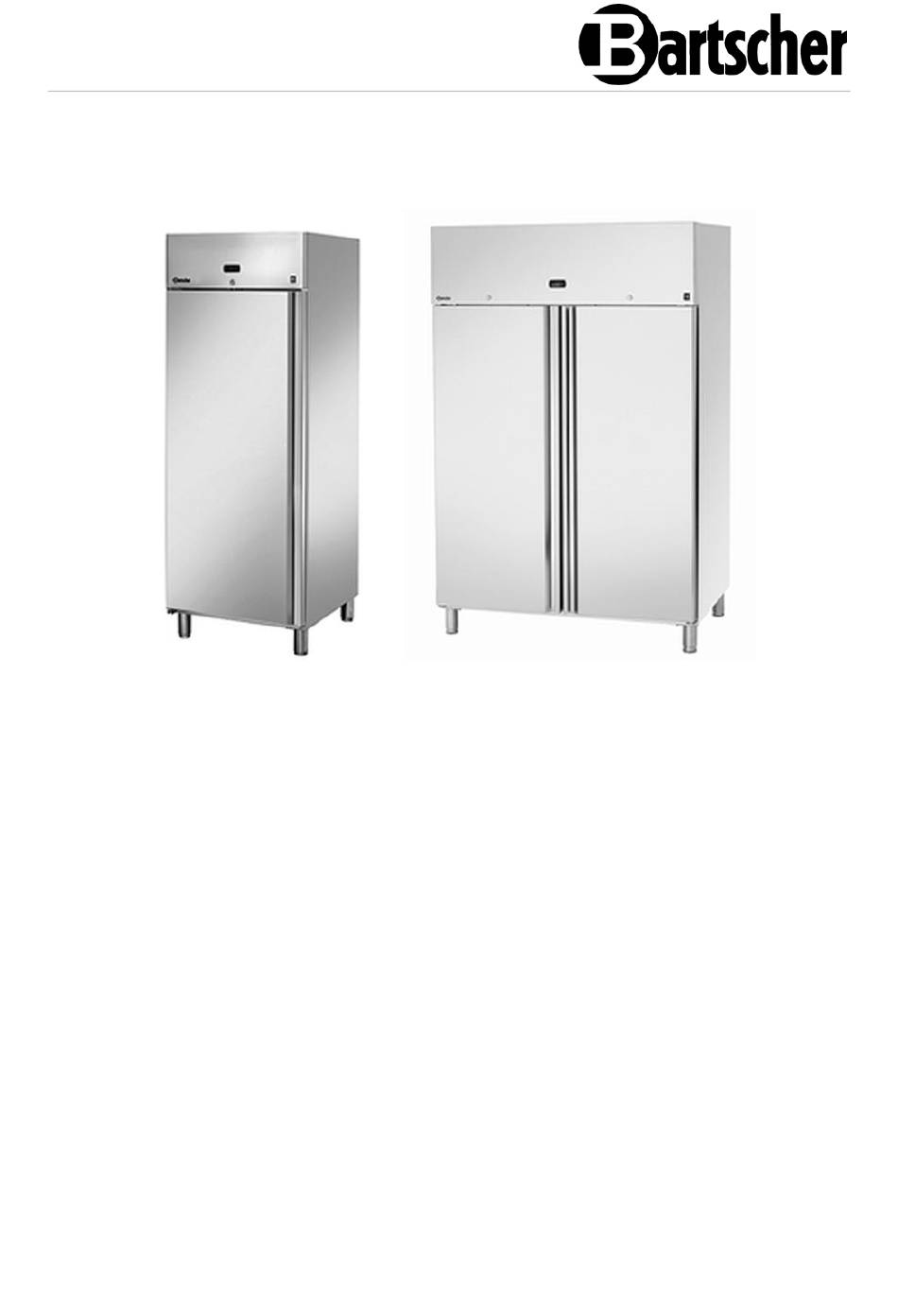

- Page 1 700 GN211 - 1400 GN211 700415 - 700416...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2023-05-16...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Operating Personnel • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling and storage of suitable beverages and food products. The appliance is intended for operation in maximum ambient temperature of 30°C and relative humidity of 55%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Version / Characteristics 700415 / 700416 • Cooling: circulating air • Insulation: polyurethane, 60 mm • Temperature control: thermostatic • Control: button • Automatic defrost function • Evaporation of condensed water • Thermostat • Digital display •... - Page 12 Technical Data Name: Refrigerator 700 GN211 700415 Art. No.: Material: CNS 18/10 Inner material: Stainless steel Volume, in l: Temperature range, min.–max., in °C: -2 - +8 Ambient temperature, max., in °C: Amount of coolant, in kg: R600a / 0,098...
- Page 13 We reserve the right to implement technical modifications! More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2015/1094-IV, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model.
-
Page 14: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Refrigerator 700415 1. Digital temperature regulator 2. Lock 3. ON/OFF switch with integrated power 4. Door indicator light (red) 5. Door seal 6. Shelf guides (4 pcs.) 7. Shelves (3x) 8. Height-adjustable feet (4 pcs.) 9. -
Page 15: Functions Of The Appliance

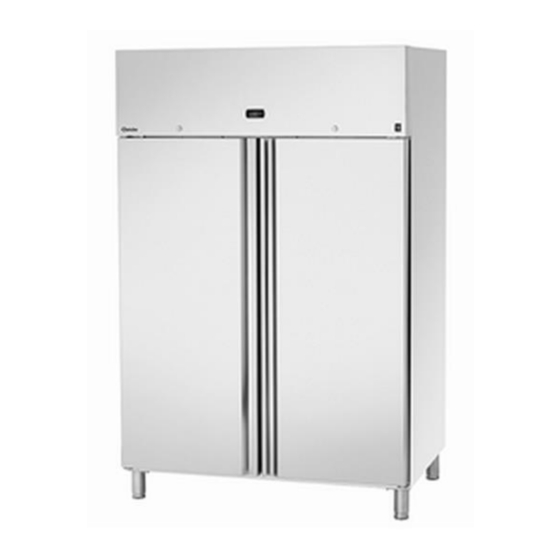

Technical Data Refrigerator 700416 1. Digital temperature regulator 2. Lock (2 pcs) 3. ON/OFF switch with integrated power 4. Door (2 pcs.) indicator light (red) 5. Door seal (2 pcs.) 6. Shelf guides (8 pcs.) 7. Shelves (6x) 8. Height-adjustable feet (4 pcs.) 9. -
Page 16: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. - Page 17 Installation and operation • The appliance should be installed only in rooms, in which ambient temperature does not exceed 30 °C. • Nie nal eż y umies zcz ać urządz eni a w g orąc ym otoczeniu ani w pobliż u materiał ów łatwopalnyc h. •...
-
Page 18: Operation
Installation and operation Operation Tips for the user • Shelves may be positioned at various heights. Arrange them adequately to the size of beverage/containers with food product, so that the inner space of the appliance is used optimally. • Beverages and food products in containers should be arranged on the shelves so that proper distances between them allow for sufficient air circulation inside the appliance. - Page 19 Installation and operation Preparation of the appliance 1. Prior to first operation, clean the appliance and its equipment according to instructions in section 6 “Cleaning”. 2. To end with, dry the appliance and accessories thoroughly. 3. Introduce the shelves into the appliance at the selected height. 4.
- Page 20 Installation and operation Messages Assigned Normal Operation Start-up Function Flashes Compressor Required Required Defrosting Auxiliary Active output Inactive output output RTC clock RTC available, RTC unavailable activated / deactivated (tEN=1) and at (tEN=0) and no least 1 programmed time cycle programmed time cycle Alarm...
- Page 21 Installation and operation Functions of Buttons Button Normal Operation Start-up Single press of the Combo press button of buttons – For more than 3 sec.: ON/OFF interchangeable Pressed display of the concurrently: ON/OFF status Activation/dea – For more than 3 ctivation of DOWN Pressed for...
- Page 22 Installation and operation Setting the set temperature 1. To introduce the setting or to change the set value, perform the following steps: – press the button and hold it for one seconds — the set value starts to blink; – press the button to increase or decrease the value;...
-
Page 23: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. -
Page 24: Maintenance
Cleaning and Maintenance Maintenance The following operations should be regularly performed by a qualified specialist: – cleaning the condenser with suitable tools (vacuum cleaner or soft brush); – checking of electrical connections; – checking of the thermostat and the sensor; –... -
Page 25: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. - Page 26 Possible Malfunctions Error Possible Cause Solution Temperature inside Too little clearance between Provide for sufficient the appliance is too objects inside the appliance clearance between objects high / too low inside the appliance Appliance is overloaded Reduce the number of stored objects Incorrectly set temperature Set the temperature control...
- Page 27 Possible Malfunctions Active External alarm Automatically Active Open door alarm Automatically Active Low temperature alarm Automatically Active High temperature alarm Automatically Inactive Appliance parameters Impossible error Inactive Operation parameters Manually error Inactive Defrosting due to With the first, exceeded time limit correctly completed defrosting Inactive...
-
Page 28: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
