Summary of Contents for Bartscher 700455

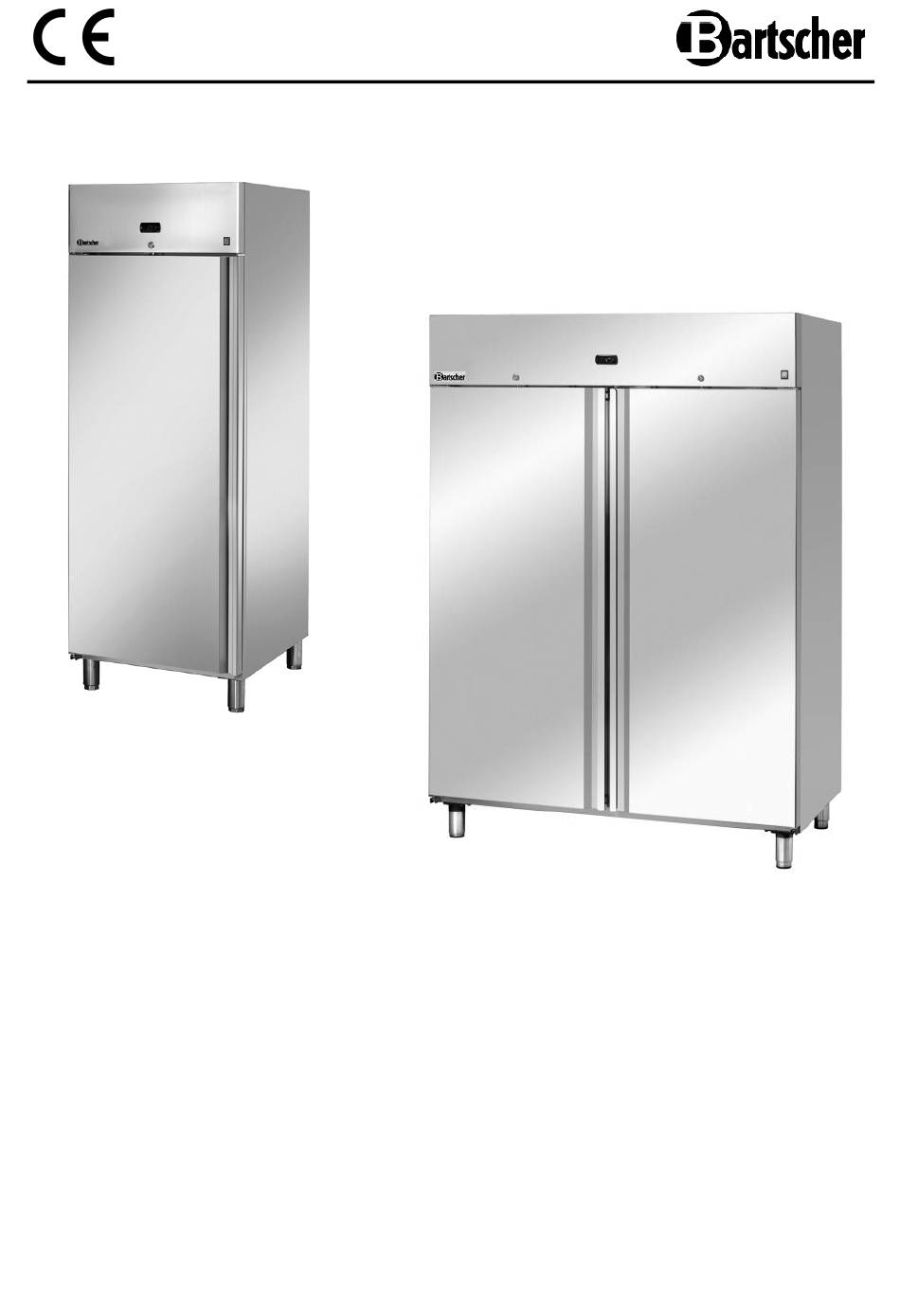

- Page 1 700455 700485 Original-Gebrauchsanleitung V3/1116...
-
Page 2: Table Of Contents
5. Installation and operation ..................30 5.1 Installation ......................30 5.2 Operation ......................32 6. Cleaning and care ....................35 7. Possible Malfunctions .................... 37 8. Waste disposal ......................40 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read these instructions before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.2 Safety instructions • The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or... - Page 5 • Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires. • To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.
- Page 6 • The supply cable must be disconnected from the socket only by pulling the plug. • Never carry or lift the device by the supply cable. • In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
-
Page 7: Proper Use
• Do not store gasoline or other flammable substances in the vicinity of the device. The vapours may cause fire or explosion. • Do not store the explosive objects in the device, like cans with explosive work substances. • Do not allow for the cooling circuit damages. 1.3 Proper use The operational safety of the device is assured only in case of proper use, according to the operation manual. -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
4. Technical data Name Refrigerators for 2/1 GN grids 700455 700485 Code-no.: Material: CNS 18/10 Insulation: polyurethane, 60 mm changeable door hinge ventilated cooling adjustable grids Realization: height adjustable feet lockable automatic defrost function water drip evaporation Gross volume: 700 litres... -
Page 11: Installation And Operation
5. Installation and operation 5.1 Installation CAUTION! Installation and maintenance operations may only be performed by qualified professionals! Positioning • Unpack the device and remove the packing materials. CAUTION! Never remove the identification plate or warning signs from the device. •... - Page 12 • Place the device in such a manner that the ventilation ducts are neither blocked or covered. • Do not place the device where humidity or temperature are high as the device may be damaged. • Do not drill holes in the device nor mount other objects to it. •...
-
Page 13: Operation
5.2 Operation Prior to first use • Before the first use, clean the device thoroughly according to the instructions included in section 6 „Cleaning and maintenance“. • Connect the device to a single, grounded socket. • Turn the device on using the ON/OFF switch at the front. •... - Page 14 Button functions Tab. 2 Normal operating mode Button Pressing Start-up Pressing once multiple buttons ➀ Over 3 sec.: Displays ON/OFF Pressing together: ON/OFF Activation/ ➂ deactivation Over 3 sec.: Pressing of continual for 1 sec.: Defrost activation/ Down operation deactivation Display Defrost mode...
- Page 15 Setting desired values To regulate and set desired values: • press for one second: set value will begin flashing; • to raise or lower value, press • confirm new value by pressing Manual defrost Besides automatic defrost, manual defrost is available to be activated by pressing over 3 seconds.
-
Page 16: Cleaning And Care
• In the case of a sudden power outage lasting up to 20 minutes, do not open the device’s door to avoid loss of cold. • If the power outage lasts longer than 20 minutes, check all food products to ensure they have not reached critical temperature. - Page 17 o Dry thoroughly all cleaned surfaces. o Use a soft brush or dust brush to regularly remove dust and fibers from the rear wall of the device. If the refrigerator is to be unused for a longer period of time: o Remove the plug from its socket;...
-
Page 18: Possible Malfunctions
7. Possible Malfunctions In case of malfunction, disconnect the device from its power source. Before contacting the service or sales agent, verify - based on the table below - whether it is possible to eliminate disruption in operation. Problem Cause Solution •... - Page 19 If the problems in operation cannot be eliminated: do not open the body, inform the service or contact the supplier providing: kind of a problem; code number and serial number (see identification plate at the rear wall of the device). The following does not indicate any problem or failure: •...
- Page 20 Alarm Error Assistance code Check parameters dt, dP and d4; Check if defrost conducted Last defrost cycle ended as a result of properly. max. time being exceeded, and not because of normal end of cycle The message will disappear when the next defrost cycle finished normally.
-
Page 21: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
