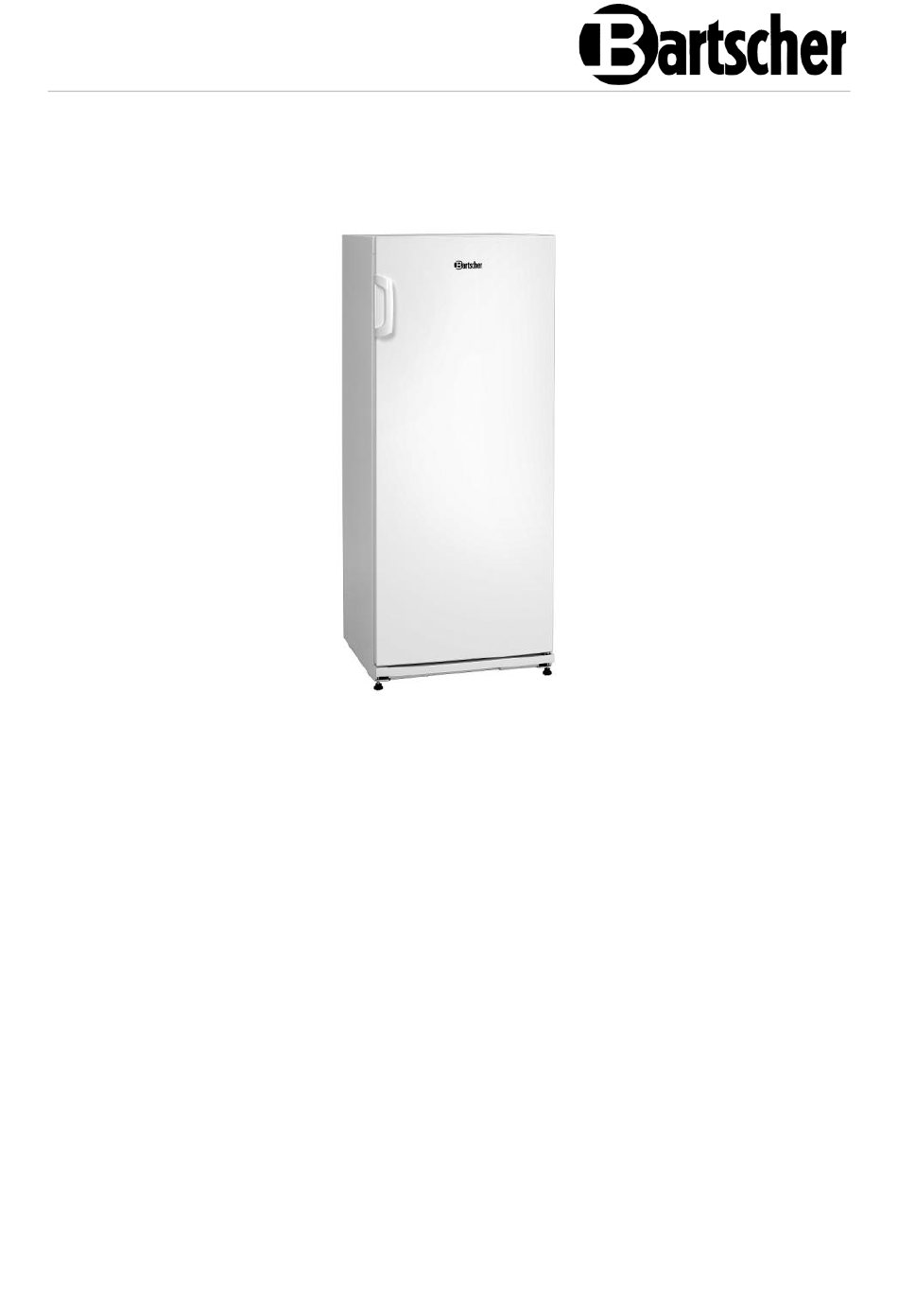

- Page 1 K1-111 700473V1...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-10-07...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Z najom ość w szystkich zaw artyc h w ni ej wsk az ówek dotycz ącyc h bezpi ecz eńs twa i obsł ugi stanowi w arunek bez pi ecz nej i prawi dłow ej pr acy z urządz eni em. Ponadto należy przestrzeg ać odpowi ednio do mi ejsca użytk owani a urządz eni a l okal nyc h przepis ów dotycz ącyc h z apobieg ani a wy padk om oraz og ólnyc h zas ad BH P. This ins truc tion m anual is an integral part of the pro duct and m ust be kept i n the imm edi ate vici nity of the devic e for installati on, operation, m aintenanc e and cleani ng pers onnel to acc ess at all times . If the devic e is pass ed on to a thir d pers on, the operating instructions m us t al so be handed over. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Operator’s responsibility The operator is responsible for complying with the currently applicable laws, regulations, ordinances and existing national regulations on accident prevention, environmental protection, as well as the internal operation, operating and safety instructions that apply at the respective installation site. Obligations of the operator: •...
- Page 8 Safety Improper Use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.
-
Page 9: Intended Use
Safety Intended Use This appliance is only intended for use described in the operating instructions, with the supplied and approved components. Any other use is considered against the intended purpose. The manufacturer shall not be liable for any damage due to unintended use. In such cases the responsible party shall only be the user/operator. -
Page 10: General Information
General information General information Liability and Warranty The appliance was built in accordance with the current state of the art and recognized technical safety principles. Nevertheless, during its use, there may be a threat to the health and life of the user or bystanders, or the danger of damage to the device or other assets. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Technical Data Technical Data Technical Specifications Name: Bottle cooler K1-111 700473V1 Art. No.: Material: plastic Inner material: HIPS (High Impact Polystyrole) Volume, in L: Usable volume, in L: Temperature range, min.–max., in °C: 0 - 8 Temperature control, levels: Ambient temperature, min.–max., in °C:... - Page 13 Internal lighting • Internal lighting ON/OFF switch More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2016, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. 700473V1...
-
Page 14: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Temperature controller 2. Interior lighting switch 3. Shelves (5 pcs) 4. Door handle 5. Condenser 6. Condensed water drip tray 7. Compressor 8. Appliance door 9. Cleaning tool for condensed water 10. -
Page 15: Functions Of The Appliance
Installation and operation Functions of the Appliance The cooler has been designed for cooling and storage of suitable beverages. The height-adjustable shelves allow you to use the internal compartment as required. Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. - Page 16 Installation and operation • Place the appliance in a way making the connections easily accessible, so that they may be quickly disconnected if such a need arises. • When selecting the installation site, please consider the following items: – The mounting surface must be even, sufficiently load-bearing, waterproof, dry and resistant to high temperatures.
- Page 17 Installation and operation 7. Remove the red adhesive tape, which is needed for transportation purposes only. 8. Use two supports (1) and insert them in guides (2) in the top section of the rear wall (Fig. 2). Fig. 2 9. Remove all red elements from shelves (Fig.
- Page 18 Installation and operation Fig. 4 Fig. 5 • The ventilation opening in the top part of the cooler may not be obstructed; it is necessary to provide for uninterrupted air circulation. • Maintain a minimum clearance of 10 cm between the top side of the appliance and objects that are above it (e.g., a cabinet) (Fig.
- Page 19 Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •...
- Page 20 Installation and operation Fig. 6 1. Remove cover strips (c, Fig. 6) from the housing and the internal side of the door. 2. Remove the top support (6) together with washers and a plastic gasket under the support. 3. Remove the cooler door. 4.
-
Page 21: Operation
Installation and operation 13. Undo bolts of the door handle. 14. Screw the handle anew at the other side. 15. Press the caps into openings in the door, and place blind plugs on bolts. 16. Remove the cover (10) of the bottom guard (1) and insert it in guides at the other side of the bottom cover (1) (symmetrically with the previous position). - Page 22 Installation and operation Temperature Control The appliance temperature is set by rotating the temperature controller. The temperature may be set in the range of 0–7: 0 — compressor is disconnected ATTENTION! The appliance is still connected to the power supply. 1 —...
-
Page 23: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance The operator must ensure that the device and its safety components are kept in good condition. Control and safety systems should be checked for their effectiveness. Maintenance, cleaning and repairs must only be carried out by suitably trained and specialised personnel. - Page 24 Cleaning and Maintenance 5. The discharge opening of the condensed water drain tray should be cleaned regularly with the provided cleaning tool. Fig. 7 6. Wipe the internal and external surfaces of the appliance with a soft, damp cloth. Use mild cleaning agent if required. 7.
-
Page 25: Maintenance
Cleaning and Maintenance Maintenance We recommend having the appliance serviced at least twice a year by an authorised service centre, and to conclude a service contract if necessary. Regular maintenance is essential to maintain the best performance and ensure the safe operation of the appliance. -
Page 26: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. The works may only be performed by suitably qualified technical personnel. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model and serial number. - Page 27 Possible Malfunctions Error Possible Cause Solution Noise level of the Appliance is not placed on Place the appliance on even appliance rises even surface surface Appliance touches walls or Keep sufficient clearance other objects from walls or other objects Bottles in the cooler in Assure sufficient clearance contact with each other between bottles...
-
Page 28: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
