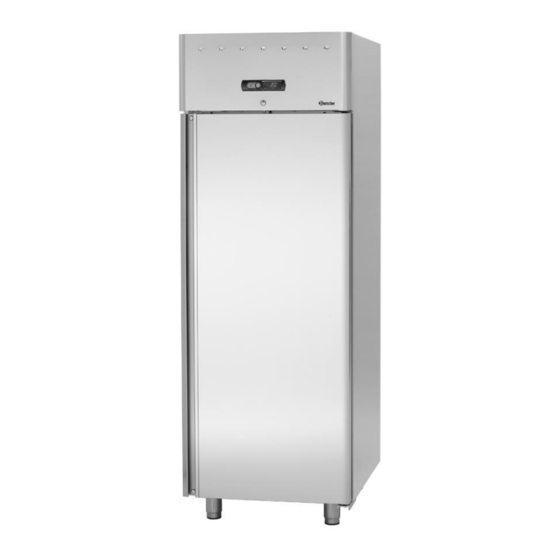

- Page 1 ECO 700L GN210 700820 Original-Gebrauchsanleitung V1/1217...
-
Page 2: Table Of Contents
5.4 Tips for the user ....................38 6. Cleaning and maintenance ..................39 7. Possible Malfunctions .................... 41 8. Error messages ....................... 42 9. Discarding old devices ................... 44 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
FIRE HAZARD / FLAMMABLE MATERIALS HAZARD / EXPLOSION HAZARD! This symbol highlights potentially dangerous situations which could lead to injury or death. CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. - Page 5 The device must be operated in correct and safe technical condition only. In case of operational problems disconnect the device from the power supply (pull the plug from the socket) and contact the service company. Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device.
- Page 6 The supply cable must be disconnected from the socket only by pulling the plug. Never carry or lift the device by the supply cable. In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
-
Page 7: Proper Use
Do not put any explosive materials, like sprays filled with flammable propellants, into the device. The cooling system in the device may be damaged. 1.3 Proper use The operational safety of the device is assured only in case of proper use, according to the operation manual. -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Package, Storage
3. Transport, package, storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
4. Technical data 4.1 Overview of parts Electronics module Pre-formed bearing rails Digital temperature controller Height-adjustable feet (4x) Electronics module lock Grid (3x) Door Housing Door seal LED lighting - 31 -... -
Page 11: Technical Specification
4.2 Technical specification Name Refrigerator ECO 700L GN210 700820 Code-No.: Material: inside and outside: stainless steel Insulation: Polyurethane foam, 87.5 mm Number of doors: 1, Type of door: leaf right side, door hinge side cannot be changed Cooling: Circulating air ... -
Page 12: Installation And Operation
5. Installation and operation 5.1 Installation CAUTION! The installation and connection of the device should be made only by qualified specialist establishment. To avoid personal injury or damage to the device, we recommend two people unpack and install the device. Location ... - Page 13 Before the first use, remove the protective foil from the device. Remove the foil slowly not to leave glue residues. Remove possible glue residues with appropriate solvent. CAUTION! Never remove the rating plate and any warning signs from the device. Electric connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation!
-
Page 14: Control Panel Elements
5.2 Control panel elements Main switch Main switch control light “SET” function key Telethermostat ON/OFF key ON /OFF control light Temperature decrease button Manual defrost button Temperature increase button LED light, ready Digital telethermostat - 35 -... -
Page 15: Control Panel Functions
5.3 Control panel functions Device switch on / off Connect the device to a single grounded socket. Switch the device on with the main switch on the control panel The green on/ff control light at the main switch comes on. Thermostat switch on / off ... - Page 16 Button lock / unlock Keypad lock: 1. Make sure no procedure is in progress. 2. Do not key in anything for 30 seconds; the display shows “Loc” message for 1 second and the keypad will be locked automatically. To unblock the keypad: 1.
-
Page 17: Tips For The User
5.4 Tips for the user Placing items for cooling To ensure that the device is correctly operated and to obtain the best results, follow the tips below: When placing items inside the refrigerator, make sure there is sufficient air circulation. ... -
Page 18: Cleaning And Maintenance
Unused for longer time When the device is not be used for a longer time, follow the instructions below: Switch the device off with the main switch and disconnect from the power supply. Clean the device and the surrounding area according to the instructions in section 6 “Cleaning and maintenance”... - Page 19 o Thoroughly wipe the external and internal surfaces of the device. Use warm water, soft cloth and mild cleaning agent for cleaning. o Clean the door seal with a soft cloth soaked in warm water without using a cleaning agent. o Finally, thoroughly dry the cleaned surfaces and grids.
-
Page 20: Possible Malfunctions
7. Possible Malfunctions In case of malfunction, immediately disconnect the device from the power supply. Before contacting the customer service department or vendor check the troubleshooting table below. Problem Possible reason Solution Defrosting terminated The device will start after 3 minutes The device has been Switch the device on again, Refrigeration unit... -
Page 21: Error Messages
8. Error messages Problem Cause Solution Message ”AL” flashes Contact the service company. and a throbbing signal is Recorded evaporator heard. probe temperature - Check evaporator blower exceeds the set value. performance. (Alarm: evaporator high temperature) Message ”AL” flashes Recorded probe - Check the unit temperature. - Page 22 Problem Cause Solution Message ”Pr1” flashes and a throbbing signal is heard. Contact the service - Wrong probe type. company Unit probe error - Probe damaged. - Check if the cooling - Incorrect connection Message ”Pr2” flashes area probe is in order. between the probe and a throbbing signal is - Check connection...
-
Page 23: Discarding Old Devices
The propellant used in the device is flammable. Its utilization should be realized according to the valid regulations. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax:...
