Summary of Contents for Bartscher 252LW

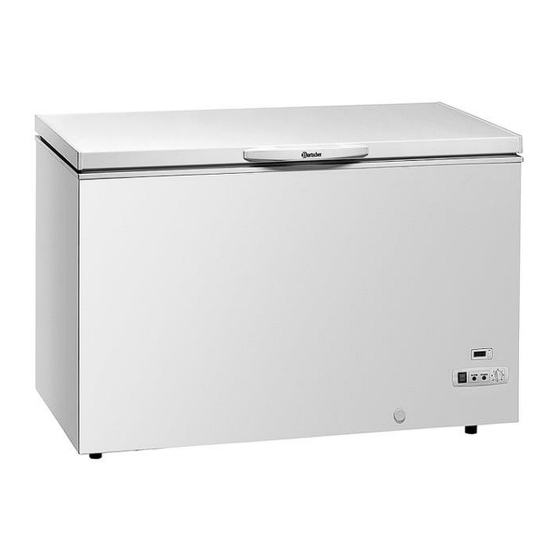

- Page 1 252LW - 368LW - 548LW 700963 - 700965 - 700966...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 5.0 Date of preparation: 2024-05-15...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle un d N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Operating Personnel • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Freezing and storage of deep-frozen food products. The appliance is intended for operation in maximum ambient temperature of 43 °C and relative humidity of 70%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Version / Characteristics 700965 / 700963 / 700966 • Cooling: static • Temperature control: thermostatic, 7 levels • Control: button electronc, toggle • Digital display • Thermostat • Temperature range: from -25 °C to -15 °C •... - Page 12 0,125 kW | 220-240 V | 50 Hz Dimensions (W x D x H) in mm: 1.275 x 750 x 850 Weight in kg: 54,8 Name: Chest freezer 252LW 700963 Art. No.: Material: steel, painted | plastic ABS Inner material:...
-
Page 13: Functions Of The Appliance
We reserve the right to implement technical modifications! More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2016, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. -
Page 14: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Lifting door handle 2. Lifting door 3. Appliance interior 4. Hanging baskets (2x or 3x) 5. Digital temperature display 6. Control elements 7. Drain plug 8. Height adjustable feet (4x) 9. -
Page 15: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 16: Operation
Installation and operation – tape firmly all loose elements in the internal chamber and tape the door; – the appliance may only be transported in vertical position. Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. - Page 17 Installation and operation Control panel / indicators Fig. 2 ① Digital temperature display Digital temperature display indicates the current temperature inside the frezer. It is battery powered. The battery compartment is next to the display. ② Temperature control The temperature may be adjusted with the temperature control in the range 1-7.
- Page 18 Installation and operation ⑤ ON/OFF switch Starting 1. Switch the device with ON/OFF switch placed on the front of the device. The operation indicator (red), integrated with the switch, will glow. The current temperature inside the freezer will be displayed. 2.
- Page 19 Installation and operation • The items for freezing should be described as follows: – name of the product (eg. beef steak) – weight of the portion – quantity (number of pieces) – freezing date – use by date. • Use popular labels to describe the frozen food items. How to proceed: 1.
- Page 20 Installation and operation artially or fully thawed food produc ts s houl d be immediately us ed. Low temperatur e pres erves food pr oducts , but it does not er adic ate micr o-organisms. They r eactiv ate at an accel erated pace and food products turn r api dly. Partial thawing r educ es the nutritional v alue of food pr oducts, es peci ally the nutritional val ue of fr uits and veg etabl es, as well as r eady-m ade m eals . Storage of deep-frozen food products in the chest freezer •...
-
Page 21: Cleaning And Maintenance
Cleaning and Maintenance LED lighting The device is equipped with the LED (6 LED) lighting. It is placed on a hinged lid of the device under the transparent cover. The LED lighting is on automatically when the lid is open and it is on automatically when the lid is closed. Switching the appliance off 1. - Page 22 Cleaning and Maintenance 4. Clean the door seal with a soft cloth soaked in warm water, without using detergent. After cleaning dry it well. 5. The layers of ice and frost that form on the inner walls of the freezer, when they reach a certain level, act as insulation and impair the ability of the inner walls to pass off cold.
-
Page 23: Maintenance
Cleaning and Maintenance HINT! To prevent the frozen products taken out of the freezer from defrosting, the defrosting process should be carried out as efficiently as possible. 12. Reinsert the drain plug. 13. Close the lifting door of the appliance and plug the power cord into the appropriate socket. -
Page 24: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. - Page 25 Possible Malfunctions Error Possible cause Solution Appliance does not The lifting door is not To check the tightness, put a cool sufficiently closing tightly sheet of paper between the seal and the lifting door and Freezing process The seal is not properly close the door.
-
Page 26: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
