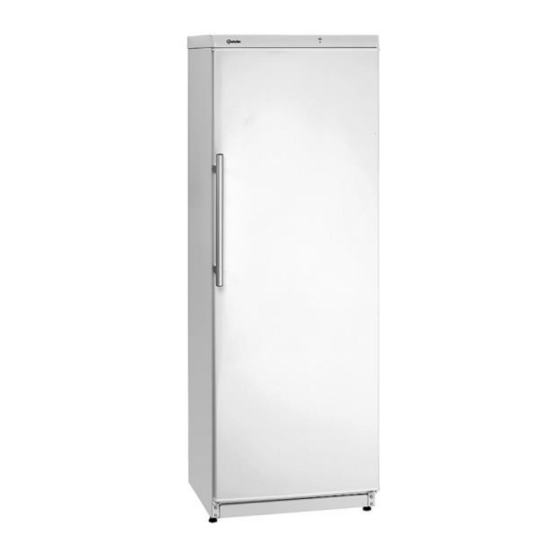

Bartscher 350 Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
350
700276

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 350 and is the answer not in the manual?

Questions and answers

Related Manuals for Bartscher 350

Summary of Contents for Bartscher 350

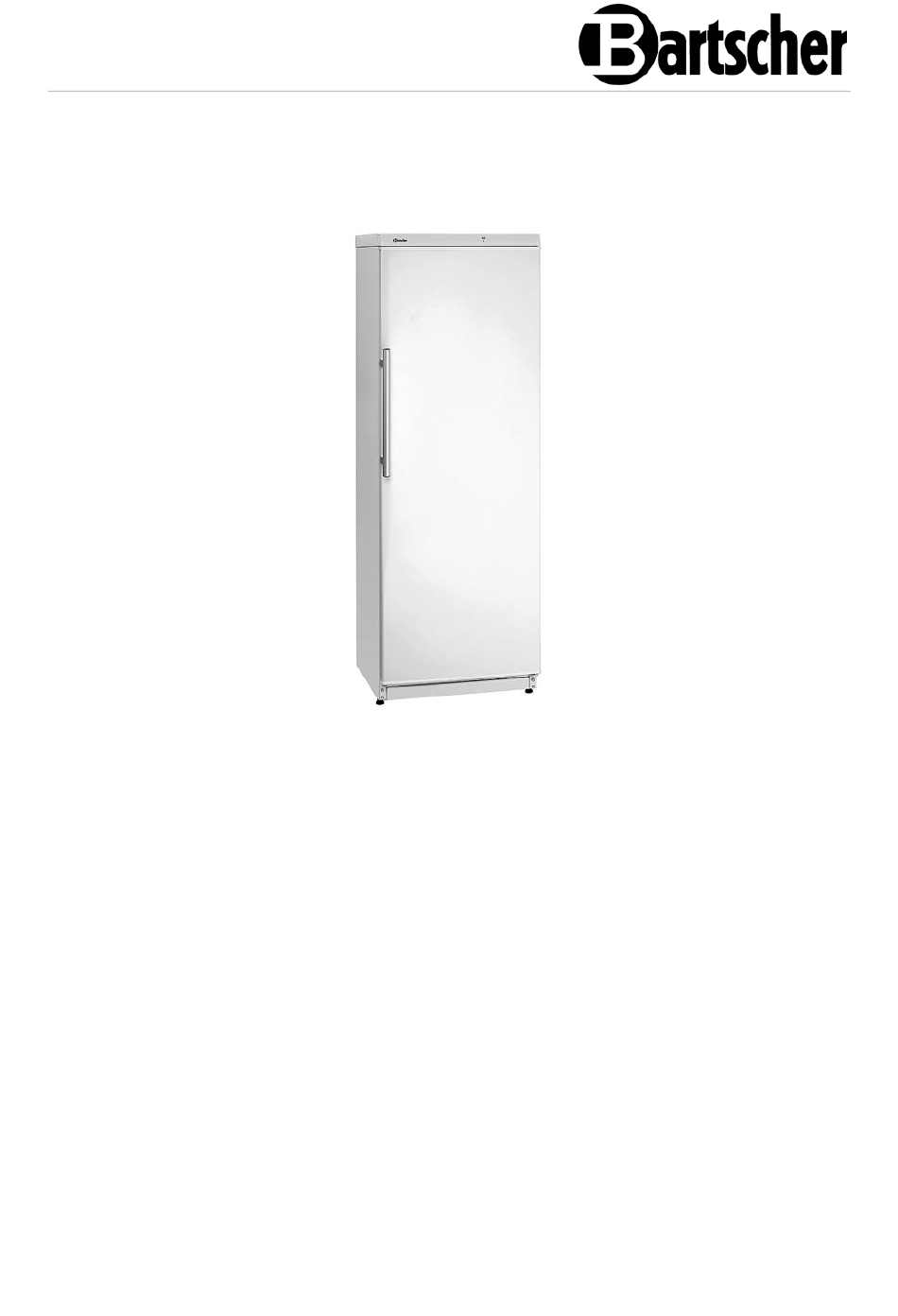

  • Page 1 700276...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2022-06-17...

  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage ..............

  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle un d N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.

  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
  • Page 7 Safety • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.

  • Page 8: Intended Use

    Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling and storage of suitable beverages and food products. The appliance is intended for operation in maximum ambient temperature of 30°C and relative humidity of 55%.

  • Page 9: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.

  • Page 10: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Name: Storage refrigerator 350 700276 Art. No.: Material: plastic, steel Inner material: plastic Volume, in l: Temperature range, min.–max., in °C: -2 - 8 Temperature control, levels: 1 - 5 Ambient temperature, min.–max., in °C:...

  • Page 12: Functions Of The Appliance

    – 2 castors, 2 feet – fan stopped when door is open More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2015/1094-I, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model.

  • Page 13: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance Fig. 1 1. LED lighting switch 2. Temperature controller 3. Temperature level display 4. Power light (green) 5. LED lighting 6. Fan 7. Shelves (5 pcs) 8. Drain system 9. Cleaning tool for condensed water 10.

  • Page 14: Installation And Operation

    Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it.
  • Page 15 Installation and operation Preparation of the Appliance 1. Remove the appliance from the foam pad. 2. Remove the adhesive tape from the exterior of the appliance. ATTENTION! The appliance is equipped with bolted door handle. If used incorrectly, it may break off. Do not use the door handle for raising nor for moving the appliance.
  • Page 16 Installation and operation • Do not place the appliance in direct sunlight or in the vicinity of heat sources (cooker, radiator, heating devices, etc.). Heat sources may negatively affect power consumption, and restrict functions of the appliance, too. • Place the appliance so that sufficient air circulation is ensured. •...
  • Page 17 Installation and operation ATTENTION! If the provided clearance values are not observed, the power consumption rises or the compressor overheats. • If the appliance is to be installed in a corner, maintain a lateral clearance of at least 200 mm (Fig. 4). •...
  • Page 18 Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •...
  • Page 19 Installation and operation Fig. 6 1. Undo two bolts (7, Fig. 6) and remove the bottom support from the hinge (8), together with the set of washers (6) on the axis, as well as intermediate element (5). 2. Undo bolts (7) and remove the support from the hinge (11). 3.

  • Page 20: Operation

    Installation and operation 10. First, slide the bearing journal (2) in the door, and then install the bottom hinge support (8) with the set of washers and gaskets at the opposite side of the cooler. 11. Install the hinge support (11) at the opposite side of the cooler. Operation Tips for the user •...
  • Page 21 Installation and operation Before First Use 1. Prior to first operation, clean the appliance and its equipment according to instructions in section 6 'Cleaning'. 2. To end with, dry the appliance and accessories thoroughly. 3. Introduce the shelves into the appliance at the selected height. 4.

  • Page 22: Cleaning And Maintenance

    Cleaning and Maintenance Switching the LED Lighting ON/OFF 1. If needed, switch the LED lighting off with a suitable switch (1, Fig. 1). Switching the Appliance OFF 1. If the appliance is not used any more, rotate the temperature controller to '0' position (2, Fig.
  • Page 23 Cleaning and Maintenance 5. The discharge opening of the condensed water drain tray should be cleaned regularly with the provided cleaning tool. Fig. 7 6. Wipe the internal and external surfaces of the appliance with a soft, damp cloth. Use mild cleaning agent if required. 7.

  • Page 24: Possible Malfunctions

    Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate.
  • Page 25 Possible Malfunctions Error Possible Cause Solution Noise level of the Appliance is not placed on Place the appliance on even appliance rises even surface surface Appliance touches walls or Keep sufficient clearance other objects from walls or other objects Objects in the appliance in Assure sufficient clearance contact with each other between objects...

  • Page 26: Disposal

    Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
