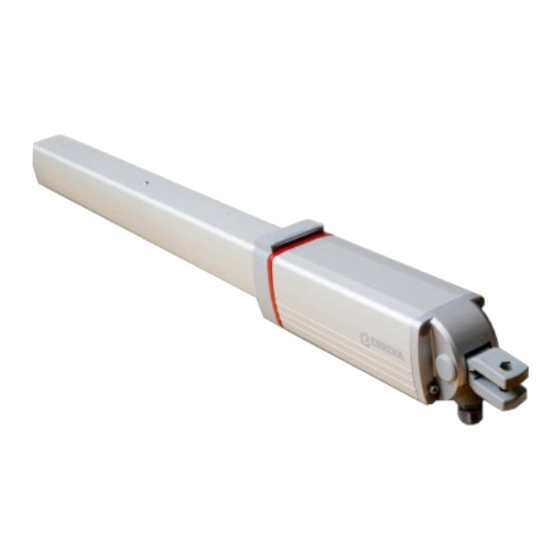

VULCAN D

Quick installation and programming guide

This quick guide is a summary of the complete installation manual. The manual contains safety warnings and

other explanations which must be taken into account. The installation manual can be downloaded by going

WARNING

to the "Downloads" section of Erreka website:

http://www.erreka.com/Automatismos/descargaDocumentos.aspx

VERY IMPORTANT:

The TC closing stopper and the TA

opening stoppers must be installed

in all cases.

A: Main power supply

B: LUMI Flashing light

C: Photocells (Rx/Tx)

D: Pushbutton / key switch

E: Operator

F: LUMI Built-in antenna

G: Electrolock

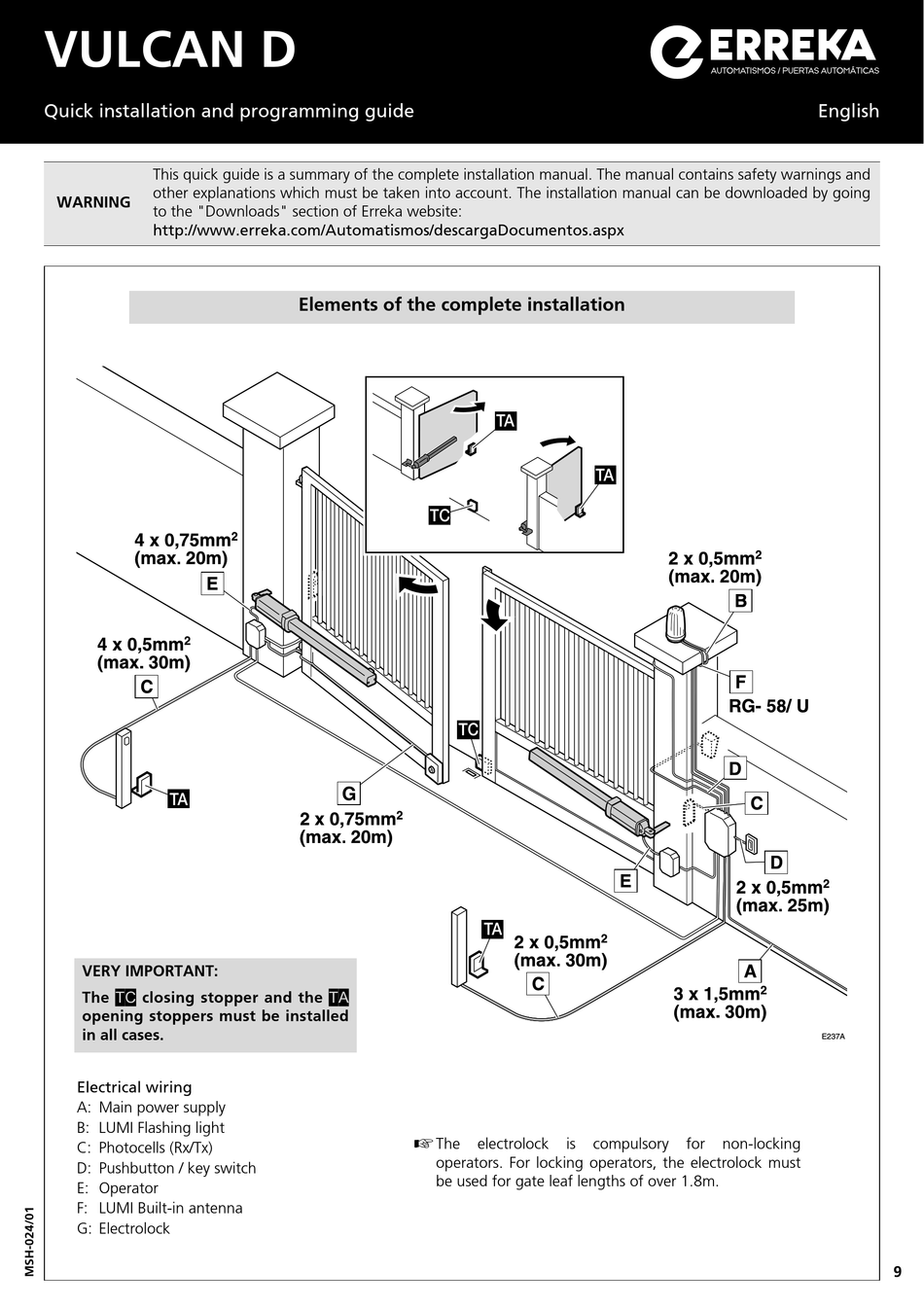

Elements of the complete installation



The

operators. For locking operators, the electrolock must

be used for gate leaf lengths of over 1.8m.

electrolock

compulsory

English

E237A

for

non-locking

Table of Contents

Do you have a question about the VULCAN D and is the answer not in the manual?

Page 1 This quick guide is a summary of the complete installation manual. The manual contains safety warnings and other explanations which must be taken into account. The installation manual can be downloaded by going WARNING to the "Downloads" section of Erreka website: http://www.erreka.com/Automatismos/descargaDocumentos.aspx Elements of the complete installation...
Page 2 Unlocking Unlocking for manual operation: • Open the cover (1). • Turn the unlocking key (2) 90º until it is perpendicular to the operator spindle. Motorised operation locking: • Turn the unlocking key (2) 90º until Locked Unlocked it is parallel to the operator spindle. •...
Page 3 Levelling T h e o p e r a t o r m u s t w o r k horizontally: to do this, the supports must be positioned at the same height. Check horizontality with a spirit level. M237I Assembly 1 Mount the fork in the operator.
Page 4 Electrical connections   The VIVO-M101(M) or VIVO-M201(M) control Since this is a stationary unit for permanent board can be used for the VULCAN D operator. connection, an external cut-off must be installed. FCA2 COM FCC2 P1 P2 P3 P4 P5 P6...
