Erreka VULCAN S Manual

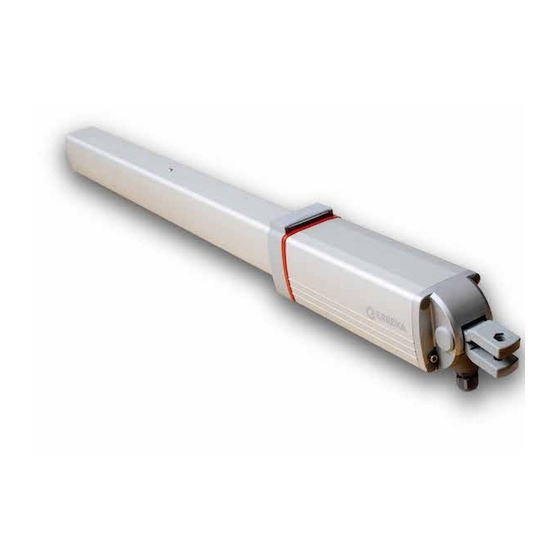

Hydraulic operator
Hide thumbs Also See for VULCAN S:
Table of Contents

Advertisement

Quick Links

Download this manual
INDEX
Symbols used in this manual__________________________________ 38
Importance of this manual ___________________________________ 38
Envisaged use ______________________________________________ 38
Installer's qualifications ______________________________________ 38
Automatic gate safety elements_______________________________ 38
Elements of the complete installation __________________________ 39
General characteristics of the operator _________________________ 40
Main operator parts_________________________________________ 40
General characteristics of the operator _________________________ 41
Declaration of conformity ____________________________________ 41
Unpacking_________________________________________________ 42
Content___________________________________________________ 42
Necessary tools_____________________________________________ 43
Initial conditions and checks __________________________________ 43
Installing the operator _______________________________________ 44
Final preparation ___________________________________________ 53
Maintenance_______________________________________________ 54
Failure diagnosis____________________________________________ 54
Spare parts ________________________________________________ 54
Scrap _____________________________________________________ 54
English
38
39
42
43
54
VULCAN S hydraulic operator
37

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VULCAN S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Erreka VULCAN S

Summary of Contents for Erreka VULCAN S

  • Page 1: Table Of Contents

    Installation Necessary tools_____________________________________________ 43 Initial conditions and checks __________________________________ 43 Installing the operator _______________________________________ 44 Final preparation ___________________________________________ 53 Maintenance and diagnosis of failures Maintenance_______________________________________________ 54 Failure diagnosis____________________________________________ 54 Spare parts ________________________________________________ 54 Scrap _____________________________________________________ 54 VULCAN S hydraulic operator...

  • Page 2: General Safety Instructions

     For further details, see “Fig. 1 Elements of the  The safety of the complete installation depends on complete installation” on page 39. all the elements installed. Install only Erreka components order guarantee proper operation.

  • Page 3: Description Of The Product

    Coaxial cable 50k (RG-58/U) Fig. 1 Elements of the complete installation   The safe and correct operation of the For greater safety, Erreka recommends installing the installation is the responsibility of the installer. photocells (4) and (10). VULCAN S hydraulic operator...

  • Page 4: General Characteristics Of The Operator

    DESCRIPTION OF THE PRODUCT GENERAL CHARACTERISTICS OF THE OPERATOR The VULCAN S operator is constructed to form part of This safety system is capable of detecting the collision of a hinged gate automation system. Allows the the gate with an obstacle, informing the control panel requirements of standard EN 12453 to be fulfilled.

  • Page 5: General Characteristics Of The Operator

    Directive 89/392 EEC and successive modifications. • 89/366 EEC and successive modifications 92/31 EEC and 93/68 EEC The VULCAN S electromechanical operator allows us to • UNE-EN 60335-1 carry out installations in line with the standards: EN 13241-1 and EN 12453.

  • Page 6: Unpacking And Content

    12 Piston rod cover top 20 Rear support ø = 10mm, L = 57.2mm) 13 Piston rod cover tops 21 Rear support bracket Gland cover screws 14 Piston rod cover rods 22 Faston terminals Fig. 3 VULCAN S Operator Content Installation manual...

  • Page 7: Installation

    Electrical power supply installation   The electrical connections shall be made in line The electrical cable section is indicated in: “Fig. 1 with the instructions in the control panel Elements of the complete installation” on page 39. manual. VULCAN S hydraulic operator...

  • Page 8: Installing The Operator

    INSTALLATION INSTALLING THE OPERATOR  Horizontality of the operator  The operator must work horizontally: to do Check horizontality using a Spirit level. this, the supports must be positioned with a height difference of 19 mm.  Assembly positions and dimensions ...
  • Page 9 2 Following the grid, move from the dimension to determined by the characteristics of the installation the line corresponding to the required opening (size of the pillar, presence of walls, etc). angle. 3 Following the grid, move to the other dimension. VULCAN S hydraulic operator...
  • Page 10 INSTALLATION Short operator, outward opening Opening Dimension Dimension angle 80º 85º 90º 90º 95º 100º 110º Use of the chart: 1 Select the specified dimension in the chart. For a specific opening angle, multiple A-B pairs can be chosen. Generally, one of them will be 2 Following the grid, move from the dimension to determined by the characteristics of the installation the line corresponding to the required opening...
  • Page 11 2 Following the grid, move from the dimension to determined by the characteristics of the installation the line corresponding to the required opening (size of the pillar, presence of walls, etc). angle. 3 Following the grid, move to the other dimension. VULCAN S hydraulic operator...
  • Page 12 INSTALLATION Long operator, outward opening Opening Dimension Dimension angle 80º 85º 90º 90º 95º 100º 110º Use of the chart: 1 Select the specified dimension in the chart. For a specific opening angle, multiple A-B pairs can be chosen. Generally, one of them will be 2 Following the grid, move from the dimension to determined by the characteristics of the installation the line corresponding to the required opening...
  • Page 13 4 Introduce the horizontal pin (6), crossing the gudgeon and the top.  ø Horizontal pin: = 10mm, L = 57.2mm 5 Secure the pin using the safety washers (7). 6 Position the caps (8) to close the housing. VULCAN S hydraulic operator...
  • Page 14 INSTALLATION Mount the operator on the front support 1 Introduce the operator ball bearing joint (1) in the front support pin (2). 2 Secure the ball bearing joint using the safety washer (3). Mount the operator on the rear support 1 Introduce the gudgeon (1) in the support (2).
  • Page 15 1 Introduce the cable (3) through the gland PG11 (1). 2 Position the gland in the end cap (4) and attach using the nut PG11 (2). 3 Crimp the Faston connectors in the electrical cables (5). VULCAN S hydraulic operator...
  • Page 16 INSTALLATION Connect the motor to the switchboard  Before making any electrical connections, check the switchboard instructions manual.  We recommend using switchboard VIVO-D101(M). CLOSE OPEN 1 Connect the operator (VUS) to the switchboard. 2 Connect the capacitor (C) in cable connectors Turn 1 and Turn 2.

  • Page 17: Final Preparation

    2 Point to the gate, showing that it opens maintenance of the facility and provide him/her with automatically, and indicating how to operate it the use manual. manually. Where appropriate, indicate that operation is using the remote control. VULCAN S hydraulic operator...

  • Page 18: Maintenance And Diagnosis Of Failures

    MAINTENANCE AND DIAGNOSIS OF FAILURES MAINTENANCE  Before carrying maintenance 1 Regularly check installation in order to discover any operation, disconnect the device from the imbalance or signs of deterioration or wear. Do not use power supply. the device if any repair or adjustment is necessary. If you have to dismount the operator from its 2 Clean and lubricate the articulations of the gate, so supports, first tighten the discharge screw in...
