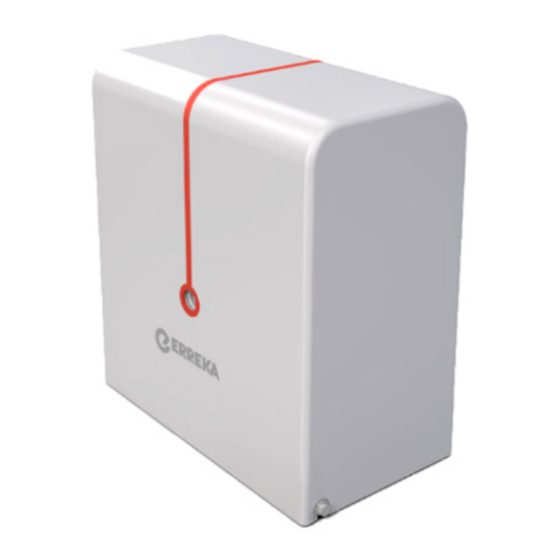

Erreka Dingo Quick Installation And Programming Manual

Erreka Dingo Quick Installation And Programming Manual

Advertisement

Quick Links

DINGO
Quick installation and programming guide
This quick guide is a summary of the complete installation manual. The manual contains safety warnings and
other explanations which must be taken into account. The most recent version of this guide and the
installation manual are available at the "Downloads" section on Erreka's website:
http://www.erreka-automation.com
WARNING
The options and functions described in this guide apply for the firmware version indicated on the circuit. The
firmware, as part of a process of continuous improvement, is subject to new functionalities or upgrades being
included as a result of new versions which are not necessarily compatible with previous ones. For this reason,
some options or functions may differ or be unavailable if your firmware is older than shown in this guide.

Electrical wiring

A:
Main power supply
B/E: Flashing light with
antenna
C:
Photocells (Tx / Rx)
D:
Pushbutton/wall key

Assembly levels

Unlocking

Unlocking for manual operation:
• Insert the key (1) and turn clockwise 180º without
forcing it: the rack drive pinion will come down from
its operating position, releasing the rack.
Install the rack at a height between 75 and 95 mm.
90 mm is recommended as the reference height.
Unlocking
180º
D259A

Elements of the complete installation

Locking
Motorised operation locking:
• Insert the key and turn it anti-clockwise 180º as far as
it will go. The pinion will return to its work position, in
contact with the rack.
• Activate a key device in order for the gate to carry out
a "reset".
English
E259A
180º
D259B
5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dingo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Erreka Dingo

  • Page 1 This quick guide is a summary of the complete installation manual. The manual contains safety warnings and other explanations which must be taken into account. The most recent version of this guide and the installation manual are available at the "Downloads" section on Erreka's website: http://www.erreka-automation.com WARNING The options and functions described in this guide apply for the firmware version indicated on the circuit.
  • Page 2 General connections  Disconnect power supply before connecting disconnecting component. DL13 24Vac power supply DL36 5Vdc power supply DL37 Closing relay activated ADN01 DL38 Opening relay activated L: line F: mains fuse N: neutral 230Vac: 2.5A T: earth 125Vac: 4A ...
  • Page 3 Turning direction change and check (C1)  This operation is only necessary if the operator opens the leaf instead of closing it when making a reset (rS). P71Z P71X P71W P71V P71Y Total opening radio code programming P1 (with RSD receiver only, C801) ...
  • Page 4 Complete programming chart Parameter Preset option Options or values Motor turning direction Opening safety device (photocell or strip) Device not installed Device without testing Device with testing Closing safety device (photocell or strip) Device not installed Closing photocell with C520 or C521, also Device without testing prevents the start of gate opening Device with testing...
