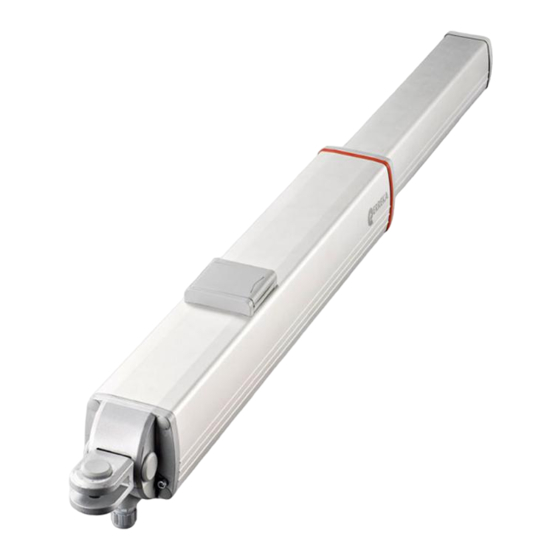

VULCAN / VULCAN S
Quick installation and programming guide
This quick guide is a summary of the complete installation manual. The manual contains safety warnings and
IMPORTANT
other explanations which must be taken into account. The installation manual can be downloaded by going
NOTE
to the "Downloads" section at the Erreka website:
http://www.erreka.com

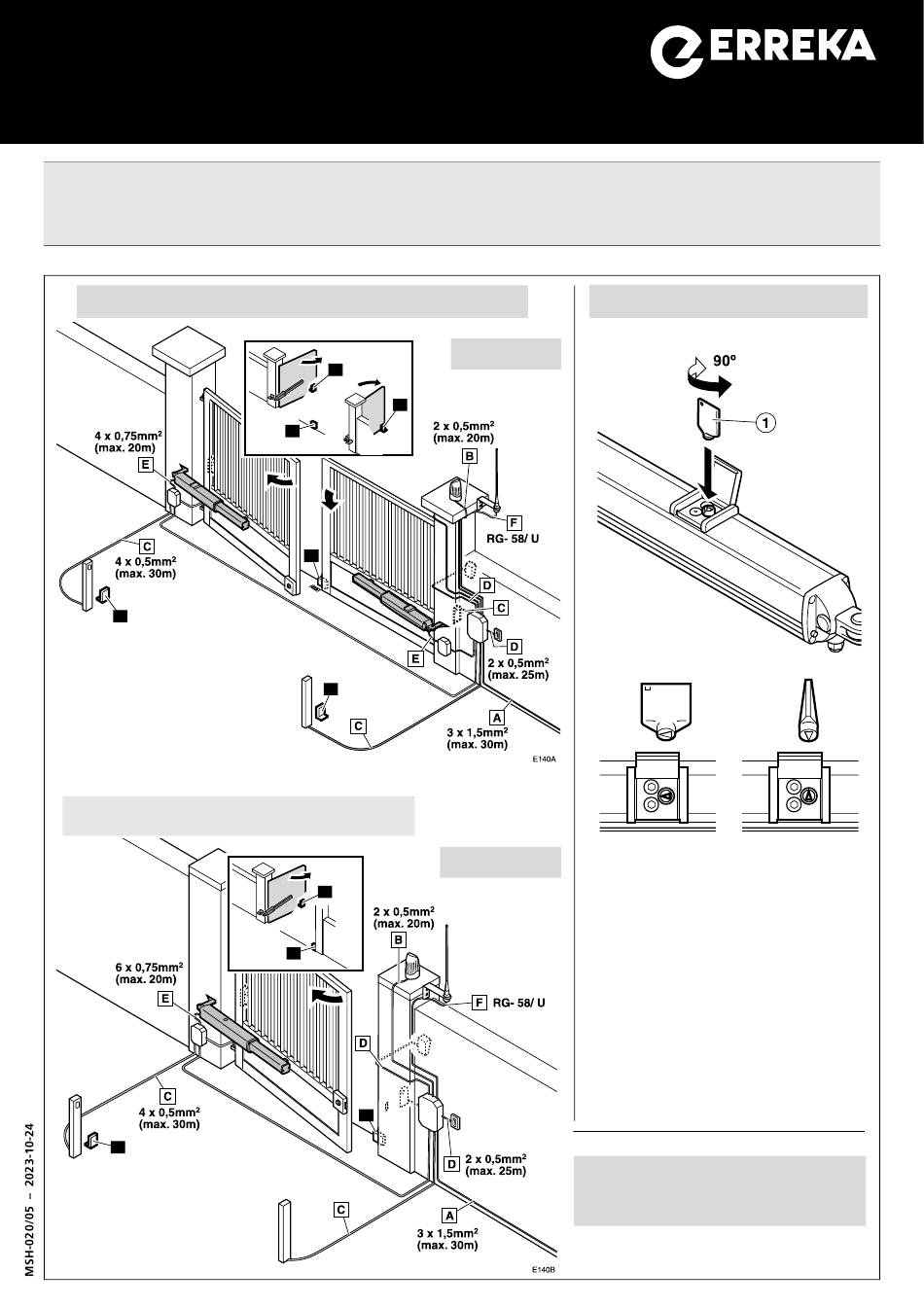

Elements of the complete installation
TA
Electrical cabling
A: Main power supply
B: Flashing light
C: Photocells
D: Pushbutton / key switch
E: Operator
F: Antenna
VERY IMPORTANT: The TC closing stopper and the
TA opening stoppers must be installed in all cases.
TA
TA
TA
TC
TC
TA
VULCAN S
TA
TC
TC
VULCAN
Locked
Unlocking for manual operation:
Turn the release key (1) in any direction
until it is perpendicular to the operator
spindle.
Motorised operation locking:
Turn the release key (1) in any direction
until it is parallel to the operator spindle.
V E R Y
electrolock with closing position
microswitch is essential for VULCAN S.
English
Unlocking
Unlocked
I M P O R T A N T :
u s i n g
E140C
a n
5
