Dahua HD IR Vari-focal Bullet Network Camera Quick Start Guide

1 Framework

1.1 Device External Cable

Note:

The following figure is for reference only, which is used to know the functions of cable port.

The cable structure may be different according to different devices, please refer to the actual
device for more details.

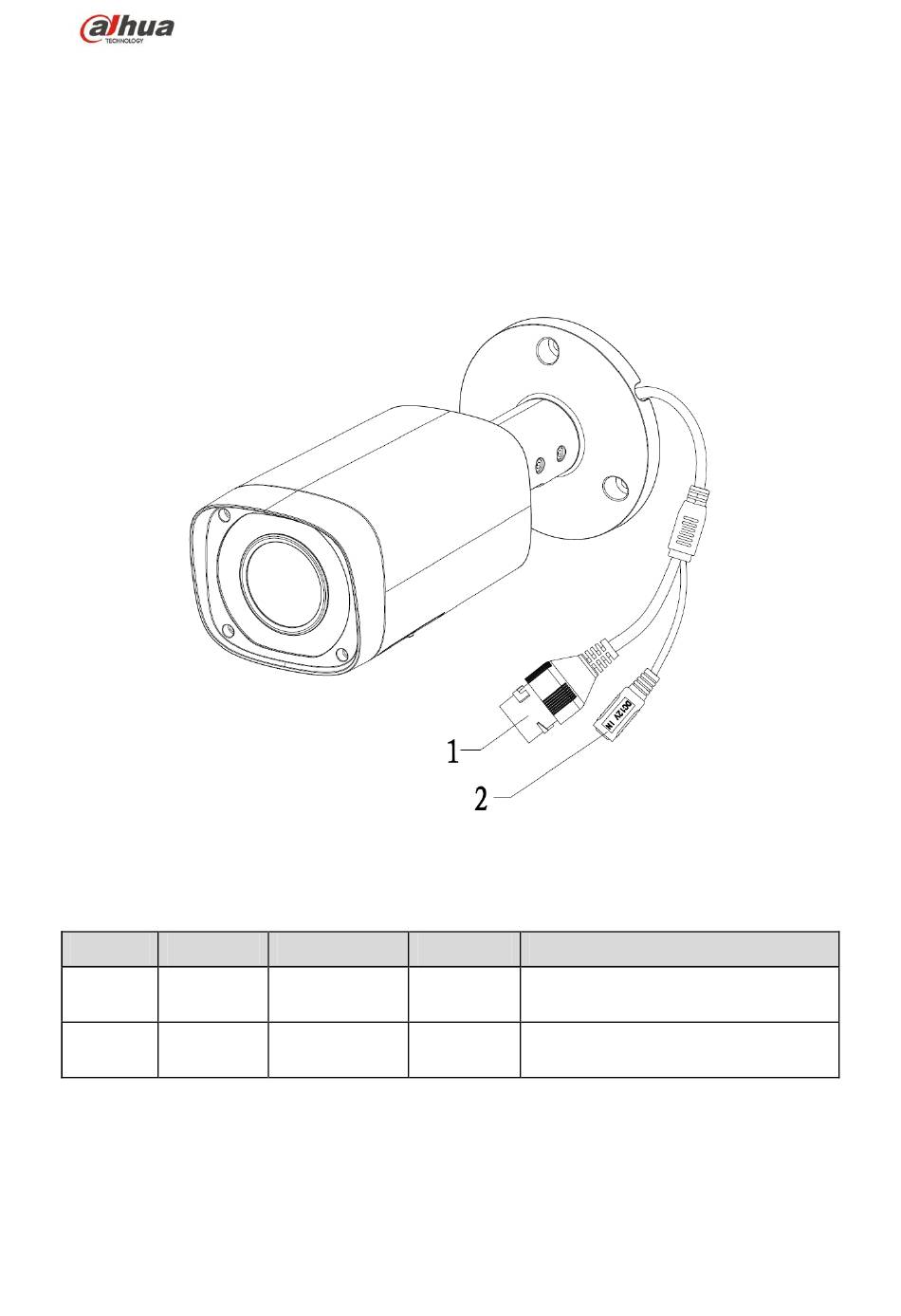

You can refer to the following figure for device external cable information. See Figure 1-1
Please refer to the following sheet for detailed information.
SN Port
1 LAN
2 DC 12V
Figure 1-1
Port Name Connection
Ethernet
Network port
port
Power input
-
port
Note
Connect to standard Ethernet cable.
Power port. Input DC 12V.
.
