Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide

1 Framework

1.1 Device External Cable

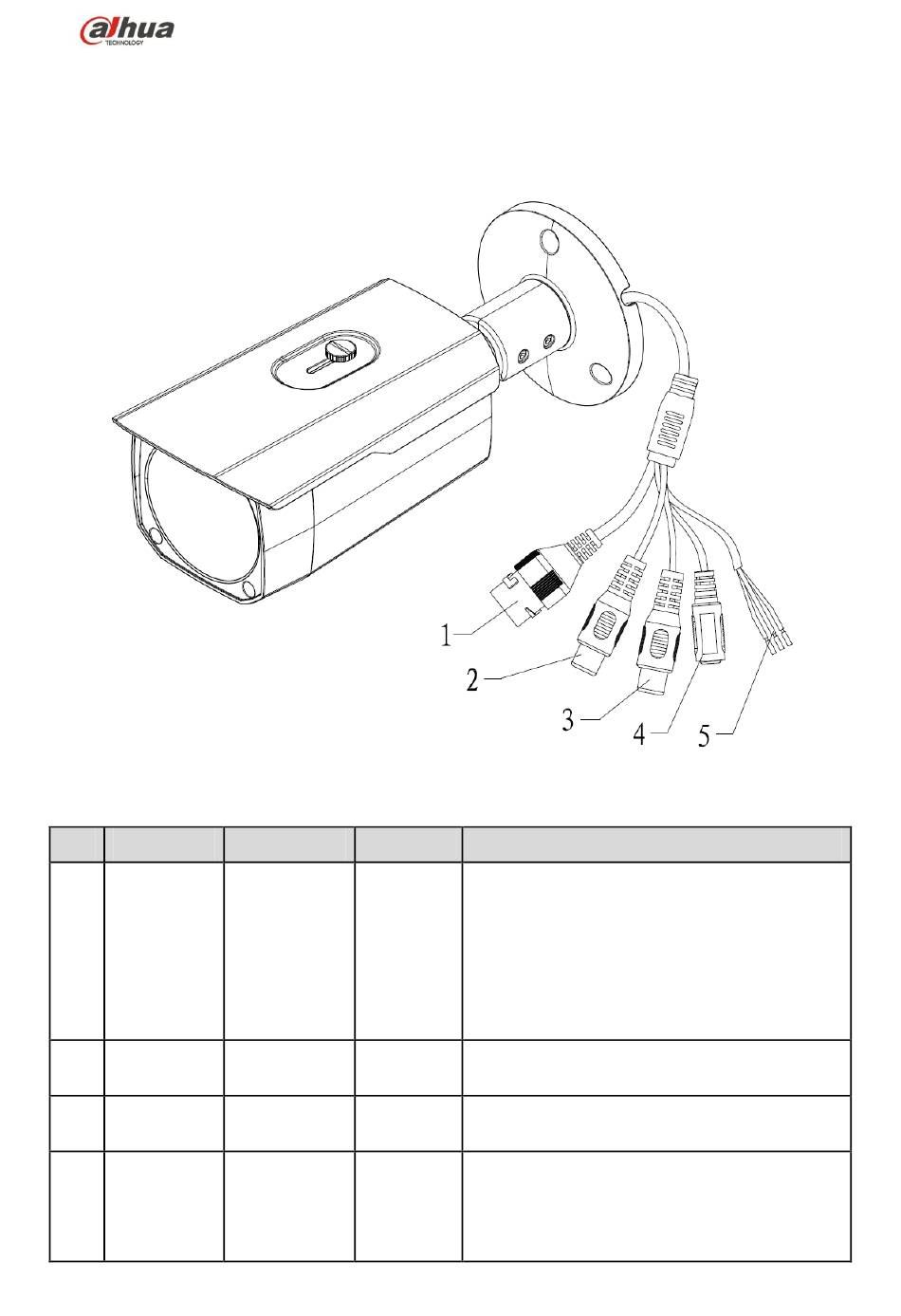

You can refer to the following figure for device external cable information. See Figure 1-1
Please refer to the following sheet for detailed information about cable ports.
SN Port
1 LAN
2 AUDIO IN
3 AUDIO OUT
4 DC 12V
Port Name Connector
Ethernet
Network port
Port
Audio input
RCA
port
Audio output
RCA
port
Power input
-
port
Figure 1-1
Note
Connect to standard Ethernet cable.
Note:
 Some devices don't support PoE power
supply.

Before making crystal head, pull the
waterproof
network cable.
Input audio signal, receive analog audio signal
from sound pick-up and etc.
Output audio signal to sound box and etc.
Power port. Input DC 12V.
Note:

Actual use in accordance with device label
instruction.
.
cover (optional) through
