Summary of Contents for Rockwell Automation 1734-OE4C
-
Page 1: Table Of Contents
Installation Instructions POINT I/O 4 Channel Analog Current Output Module Catalog Number 1734-OE4C Topic Page Important User Information Environment and Enclosure Prevent Electrostatic Discharge European Hazardous Location Approval North American Hazardous Location Approval About the Module Install the Mounting Base... -
Page 2: Important User Information
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. -
Page 3: Environment And Enclosure
POINT I/O 4 Channel Analog Current Output Module 3 Environment and Enclosure This equipment is intended for use in a Pollution Degree 2 industrial ATTENTION environment, in overvoltage Category II applications (as defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating. This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR 11. -
Page 4: Prevent Electrostatic Discharge
4 POINT I/O 4 Channel Analog Current Output Module Prevent Electrostatic Discharge This equipment is sensitive to electrostatic discharge, which can cause ATTENTION internal damage and affect normal operation. Follow these guidelines when you handle this equipment. • Touch a grounded object to discharge potential static. •... -
Page 5: European Hazardous Location Approval
Zone 2 environments. • This equipment shall be used within its specified ratings defined by Rockwell Automation. • Provision shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 40% when applied in Zone 2 environments. -
Page 6: North American Hazardous Location Approval
6 POINT I/O 4 Channel Analog Current Output Module North American Hazardous Location Approval The following information applies when Informations sur l'utilisation de cet équipement operating this equipment in hazardous en environnements dangereux: locations: Products marked "CL I, DIV 2, GP A, B, C, D" are Les produits marqués "CL I, DIV 2, GP A, B, C, D"... -
Page 7: About The Module

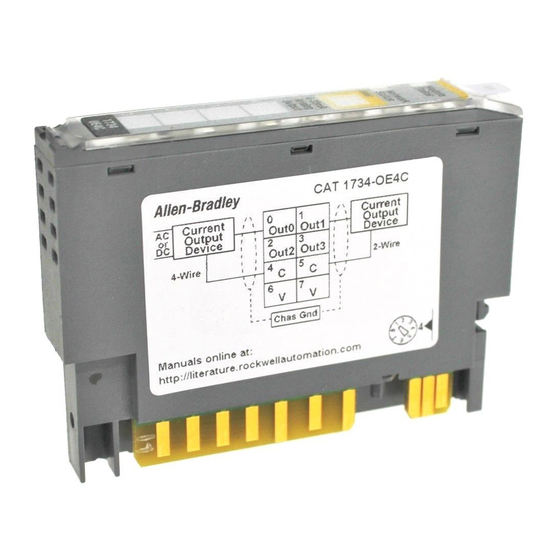

POINT I/O 4 Channel Analog Current Output Module 7 About the Module Note that this series C product can be used with the following: • DeviceNet and PROFIBUS adapters • ControlNet and EtherNet/IP adapters, using RSLogix 5000 software, version 11 or later See the figures to familiarize yourself with major parts of the module, noting that the wiring base assembly is one of the following: •... -
Page 8: Install The Mounting Base
8 POINT I/O 4 Channel Analog Current Output Module Module locking Slide-in mechanism writable label Module wiring diagram Insertable I/O module DIN rail locking screw (orange) Handle Mechanical keying (orange) Interlocking 1734-TOP or side pieces 1734-TOPS one-piece terminal base with screw or spring clamp 44221 Install the Mounting Base... -
Page 9: Install The I/O Module
POINT I/O 4 Channel Analog Current Output Module 9 Install the I/O Module The module can be installed before, or after base installation. Make sure that the mounting base is correctly keyed before installing the module into the mounting base. In addition, make sure the mounting base locking screw is positioned horizontal referenced to the base. - Page 10 10 POINT I/O 4 Channel Analog Current Output Module 1734-TOP Base Be sure the DIN-rail locking screw is in the horizontal position. Turn the keyswitch to align the number with the notch. Notch position 1 is shown. 44325 44228 1. Using a bladed screwdriver, rotate the keyswitch on the mounting base clockwise until the number required for the type of module being installed aligns with the notch in the base.
-
Page 11: Install The Removable Terminal Block (Rtb)
POINT I/O 4 Channel Analog Current Output Module 11 Install the Removable Terminal Block (RTB) A removable terminal block is supplied with your wiring base assembly. To remove, pull up on the RTB handle. This allows the mounting base to be removed and replaced as necessary without removing any of the wiring. -
Page 12: Communicate With Your Module
12 POINT I/O 4 Channel Analog Current Output Module Install a 1734-TOPS Base 1. Position the base vertically above the installed units, such as an adapter, power supply, or existing module. 2. Slide the base down, allowing the interlocking side pieces to engage the adjacent installed unit. - Page 13 POINT I/O 4 Channel Analog Current Output Module 13 Default Data Map for the 1734-OE4C Analog Output Module Message size: 4 Bytes Produces High Byte - Channel 1 Status Low Byte - Channel 0 Status (scanner Not used Not used...
-
Page 14: Wire The Current Output Analog Module
14 POINT I/O 4 Channel Analog Current Output Module Wire the Current Output Analog Module 1734 OE4C Output 0 connection 0 Output 1 connection 1 Output 2 connection 2 Output 3 connection 3 C = Common V = Supply 44352 Current Current Out 0... -
Page 15: Interpret The Status Indicators
POINT I/O 4 Channel Analog Current Output Module 15 Interpret the Status Indicators Module status Module Status Network status Network Status NODE: 4-20mA Analog Output Status of output 0 Status of output 1 Status of output 2 Status of output 3 44352 1734 OE4C... - Page 16 16 POINT I/O 4 Channel Analog Current Output Module Indicator State Description Network Device is not on-line Status - Device has not completed dup_MAC_id test - Device not powered - check module status indicator Flashing green Device is on-line but has no connections in the established state.
-
Page 17: Specifications
POINT I/O 4 Channel Analog Current Output Module 17 Specifications Output Specifications Attribute Value Number of outputs 4 analog, single-ended, non-isolated Resolution current 16 bits - over 0…21mA 0.32 μA/cnt) Output current terminal 0 mA output until communication established 4…20 mA user configurable 0…20 mA user configurable 0.4% (0.1% if calibrated) Absolute accuracy... - Page 18 18 POINT I/O 4 Channel Analog Current Output Module General Specifications Attribute Value Module location 1734-TB or -TBS wiring base assembly POINTBus current, max 75 mA 1.86W max @ 750 Ω on each output Power dissipation, max 2.15W max @ 0 Ω on each output 750 Ω...
- Page 19 POINT I/O 4 Channel Analog Current Output Module 19 General Specifications Attribute Value Weight, approx. 36.9 g (1.3 oz) North American temp code IEC temp code Use this conductor category information for planning conductor routing as described in Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1. Environmental Specifications Attribute Value...
- Page 20 20 POINT I/O 4 Channel Analog Current Output Module Environmental Specifications Attribute Value ESD immunity IEC 61000-4-2: 6 kV contact discharges 8 kV air discharges Radiated RF immunity IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80…2000 MHz 10V/m with 200 Hz 50% Pulse 100% AM at 900 MHz 10V/m with 200 Hz 50% Pulse 100% AM at 1890 MHz 3V/m with 1 kHz sine-wave 80% AM from 2000…2700 MHz...
- Page 21 POINT I/O 4 Channel Analog Current Output Module 21 Certifications Certification (when Value product is marked) c-UL-us UL Listed Industrial Control Equipment, certified for US and Canada. See UL File E65584. UL Listed for Class I, Division 2 Group A,B,C,D Hazardous Locations, certified for U.S.
-
Page 22: Additional Resources
Modules User Manual, publication 1734-UM001. to install, configure, and troubleshoot your module. You can view or download publications at http://www.literature.rockwellautomation.com. To order paper copies of technical documentation, contact your local Rockwell Automation distributor or sales representative. Publication 1734-IN034B-EN-P - November 2010... - Page 23 POINT I/O 4 Channel Analog Current Output Module 23 Notes: Publication 1734-IN034B-EN-P - November 2010...
- Page 24 New Product Satisfaction Return Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.
