Summary of Contents for Rockwell Automation Allen-Bradley 1734-IE2C

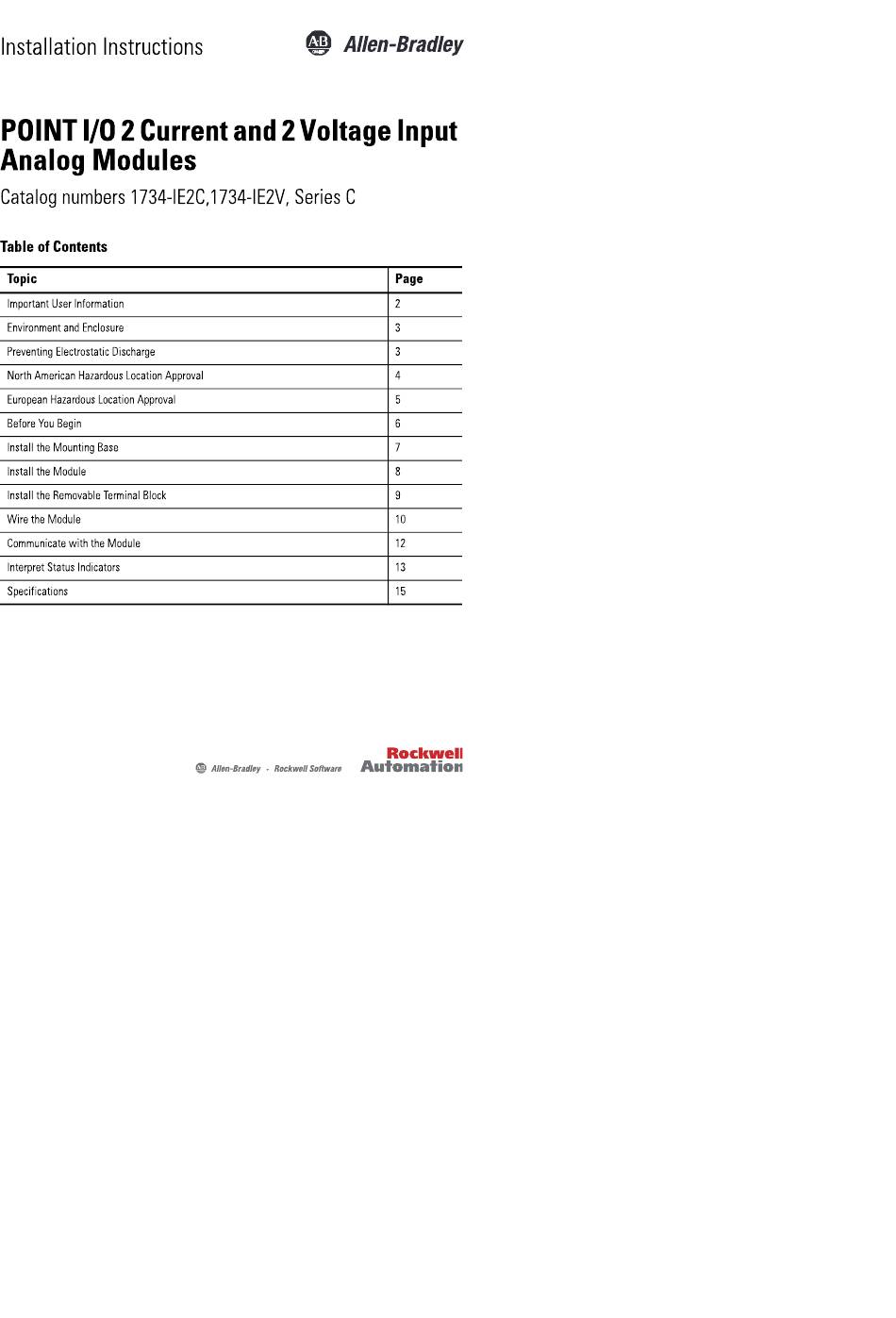

  • Page 6 Read this manual for information about how to install the following modules. • 1734-IE2C, Series C, POINT I/ O Current Input Analog Module • 1734-IE2V, Series C, POINT I/ O Voltage Input Analog Module Y ou can use these Series C POINT I/ O™ Input modules with DeviceNet and PROFIBUS adapters.
  • Page 7 To install the mounting base on the DIN rail, proceed as follows: 1. Position the mounting base vertically above the installed units (adapter, power supply, or existing module). 2. Slide the mounting base down allowing the interlocking side pieces to engage the adjacent module or adapter.
  • Page 8 The module can be installed before or after base installation. Make sure that the mounting base is correctly keyed before installing the module into the mounting base. In addition, make sure that the mounting base locking screw is positioned horizontal referenced to the base.
  • Page 9 A removable terminal block (RTB) is supplied with your wiring base assembly. To remove, pull up on the RTB handle. This allows the mounting base to be removed and replaced as necessary without removing any of the wirings. To reinsert the removable terminal block, proceed as follows: 1.
  • Page 10 To wire the module, refer to the diagrams and tables. Module Status Network Status NO DE: Analog Voltage Input 1734 IE2V...
  • Page 12 POINT I/ O modules send (produce) and receive (consume) I/ O data (messages). Y ou map this data into the processor’ s memory. The 1734-IE2C and 1734-IE2V modules produce 6 bytes of input data (scanner Rx) and fault status data. The modules do not consume I/ O data (scanner Tx).
  • Page 13 Refer to the following diagram and table for information on how to interpret the status indicators. Module Status Network Status NO DE: Analog Voltage Input 1734 IE2V...
  • Page 15 μ μ ± Ω Ω Ω Ω...
  • Page 20 Allen-Bradley, Rockwell Automation, ArmorBlock, and TechConnect are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
