Summary of Contents for Rockwell Automation DeviceNet ArmorBlock A Series
-
Page 1: Table Of Contents
Installation Instructions DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A Catalog Number 1732D-8X81212HD Topic Page Important User Information Environment and Enclosure Prevent Electrostatic Discharge About the Module Catalog Number Explanation Install the Module Mount the Module Communicate with Your Module Interpret the Status Indicators Specifications... -
Page 2: Important User Information
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. -
Page 3: Environment And Enclosure
DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A 3 Environment and Enclosure This equipment is intended for use in overvoltage Category II applications (as ATTENTION defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating. This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR 11. -
Page 4: About The Module

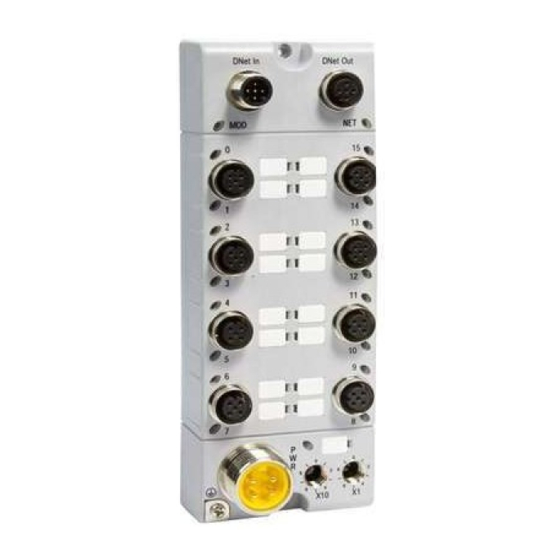

4 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A About the Module The DeviceNet 1732D ArmorBlock I/O family consists of stand-alone 24V DC I/O modules that communicate via the DeviceNet network. The sealed IP69K housing of these modules requires no enclosure. Note that it is possible that environmental requirements other than IP69K require an additional appropriate enclosure. -
Page 5: Catalog Number Explanation
DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A 5 Catalog Number Explanation The catalog number 1732D-8X81212HD identifies a DeviceNet 24V DC 8-port 8-input 8-output 1.4 A M12-style network connector module. Install the Module To install the module: • Set the node address •... -
Page 6: Mount The Module
6 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A To reset the node address: 1. Rotate the switches using a small blade screwdriver. 2. Line up the small black dot on the switch with the number setting you wish to use. 3. - Page 7 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A 7 Product Dimensions Refer to the mounting dimensions illustration to help you mount the module. Module Dimensions 65 mm 43.25 mm (2.56 in.) (1.70 in.) 26.5 mm (1.04 in.) DNet In DNet Out I - 0 O - 0...
- Page 8 8 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A Mounting the Module in High Vibration Areas If you mount the module in an area that is subject to shock or vibration, we recommend that you use a flat and a lock washer to mount the module. Mount the flat and the lock washer as shown in the mounting illustration.
- Page 9 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A 9 Network Connector Refer to the pinout diagram for the network connector. M12-style Input Connectors Male Female (View into Connector) Pin 1 Drain Pin 2 V+ (Red) Pin 3 V- (Black) Pin 4 CAN_H (White) Pin 5...
- Page 10 Pin 4 Output Power- 43906 Refer to publication M116-CA001 for Rockwell Automation cable and cord set offerings or access the Connection Systems website at http://www.ab.com/sensors/products/connection_systems/. If any I/O devices connected to this equipment require Class 2 power to ATTENTION operate, this equipment and all connected I/O must be powered by a Class 2 source.
-
Page 11: Communicate With Your Module
DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A 11 Communicate with Your Module This module’s I/O is exchanged with the master through a cyclic, polled, or change-of-state connection. Cyclic - allows configuration of the block as an I/O client. The block will produce and consume its I/O cyclically at the rate configured. -
Page 12: Interpret The Status Indicators
12 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A Interpret the Status Indicators This module has the following status indicators: • Network and Module status indicators for DeviceNet • Auxiliary Power indicator • Individual I/O status indicators for inputs and outputs DNet In DNet Out Network status... - Page 13 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A 13 Network Status Status Description Recommended action Device is not online. Wait until the device has completed the dup_MAC_id test or apply power to the device. Green Device is operating normally and is None.
- Page 14 Critical fault – device timed out or Cycle power to the device. If that has an unrecoverable fault. does not fix the fault, contact your Rockwell Automation representative. The device may need to be replaced. Auxiliary Status Status...
-
Page 15: Specifications
DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A 15 Specifications DeviceNet 1732 ArmorBlock Network Powered and Auxiliary Powered Output Module, Series A - 1732D-8X81212HD Inputs Attribute Value Number of inputs Off-state input voltage, max 5V DC On-state input voltage, max 25V DC On-state input voltage, nom 24V DC... - Page 16 16 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A DeviceNet 1732 ArmorBlock Network Powered and Auxiliary Powered Output Module, Series A - 1732D-8X81212HD Outputs Attribute Value Number of outputs On-state output voltage drop, max 0.5V DC Off-peak blocking voltage, min 30V DC On-state output voltage, max 30V DC...
- Page 17 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A 17 General Specifications (Continued) Attribute Value DeviceNet power voltage, min 11V DC DeviceNet current 100 mA plus sum of sensor currents Sensor source current per module, 500 mA Communication rate 125 Kbps @ 500 m (1640 ft) for thick cable, flat media length 375 m (1230 ft) 250 Kbps @ 200 m (600 ft) for thick cable, flat media length 150 m (492 ft)
- Page 18 18 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A Environmental Specifications Attribute Value Temperature, IEC 60068-2-1 (Test Ad, Operating Cold), operating IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -20…60 °C (-4…140 °F) Temperature, IEC 60068-2-1 (Test Ab, Unpackaged Non-operating Cold), non-operating...
- Page 19 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A 19 Environmental Specifications (Continued) Attribute Value EFT/B Immunity IEC 61000-4-4: ±3 kV at 5 kHz on power ports ±3 kV at 5 kHz on signal ports ±2 kV at 5 kHz on communications ports Surge transient IEC 61000-4-5: immunity...
- Page 20 20 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A Certifications Certification (when Value product is marked) c-UL-us UL Listed Industrial Control Equipment, certified for US and Canada. See UL File E322657. European Union 2004/108/EC EMC Directive, compliant with: EN 61326-1; Meas./Control/Lab., Industrial Requirements EN 61000-6-2;...
- Page 21 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A 21 Notes: Publication 1732D-IN011A-EN-E - April 2009...
- Page 22 22 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A Notes: Publication 1732D-IN011A-EN-E - April 2009...
- Page 23 DeviceNet ArmorBlock Network and Auxiliary Powered Module, Series A 23 Notes: Publication 1732D-IN011A-EN-E - April 2009...
- Page 24 New Product Satisfaction Return Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.
