E2S BExBGL1D Instruction Manual page 7

Flash Pattern Table
Stage 1 LED
Pattern Flash Pattern
1 ON
2 Rotating 3 LED on Fast
3 Rotating 6 LED on Fast
4 Rotating 3 LED on Slow
5 Rotating 6 LED on Slow
6 Double strike strobe 1 Hz
7 Single strike strobe 2 Hz
8 Double strike strobe 2 Hz
9 Alternate side flash 1:1 2 Hz

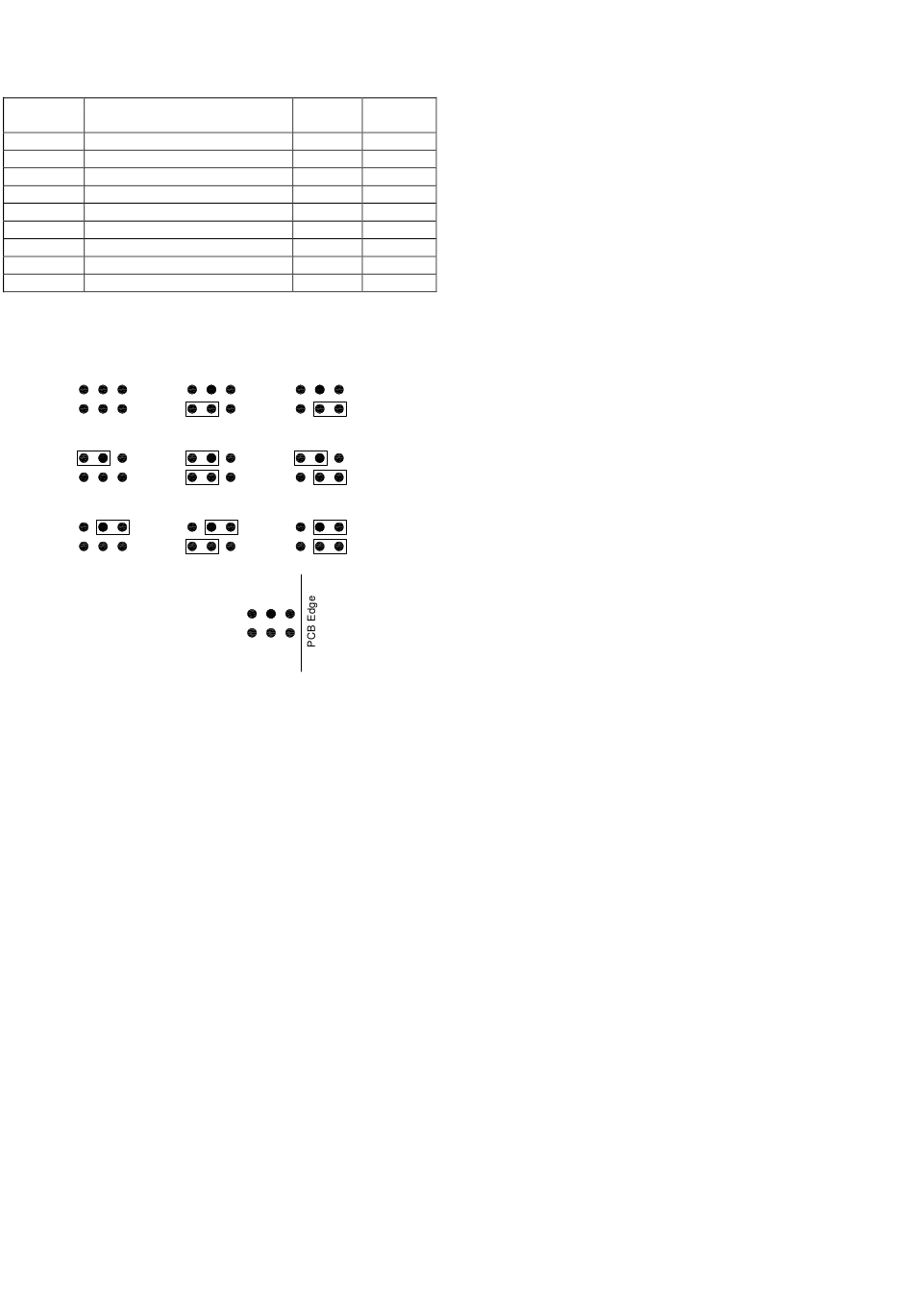

PIN HEADER POSITIONS
Pattern No. 1 Pattern No. 2
Pattern No. 4 Pattern No. 5
Pattern No. 7 Pattern No. 8
Pattern Selection
Pin Headers
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. BExBGL1D (Gas-Dust) English
Stage 2 Stage 3
Pattern Pattern
9 8
7 1
8 1
9 1
6 1
9 1
3 1
3 1
3 1
Pattern No. 3
Pattern No. 6
Pattern No. 9
