E2S D2xS1 Instruction And Service Manual

The D2xS1 alarm horn is CE marked for
compliance with the European
Explosive Atmospheres Directive
94/9/EC and the European EMC
Directive 89/336/EEC
1) Introduction

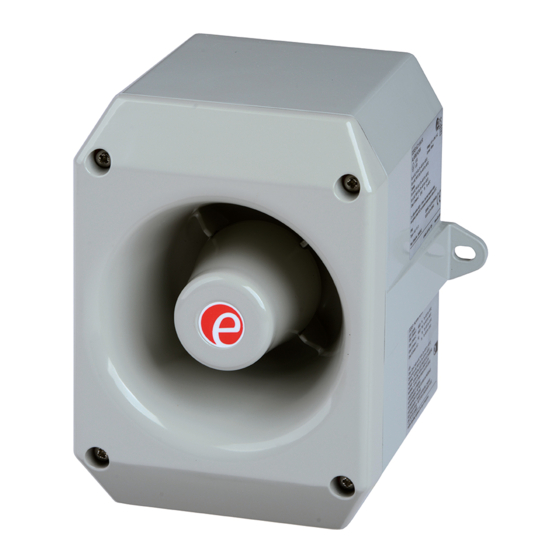

The D2xS1 is an ATEX, IECEx and UL certified alarm horn
which produces a loud warning signal in a hazardous area.
Sixty-Four first stage alarm sounds can be selected by internal
switches and each one can be externally changed to a second,
third or fourth stage alarm sound. The alarm horn may be used
for Gas applications in Zone 2 / Class I Zone 2 / Class I,
Division 2 as well as for Dust applications in Zone 22 / Class II
Zone 22 / Class II Division 2 / Class III Division 1 & 2. A D2xC1
combined alarm horn & strobe is also available. The 24Vdc
version is also listed for use in fire alarm systems –public
mode.
2) Warnings
SUITABLE FOR USE IN CLASS II, DIVISION 2, GROUPS A,
B, C AND D HAZARDOUS LOCATIONS
SUITABLE FOR USE IN CLASS II, DIVISION 2, GROUPS E, F
AND G HAZARDOUS LOCATIONS
WARNING: DO NOT OPEN WHEN EXPLOSIVE
ATMOSPHERE IS PRESENT
WARNING – EXPLOSION HAZARD – SUBSTITUTION OF
ANY COMPONENT MAY IMPAIR SUITABILITY FOR CLASS
I, DIVISION 2.
WARNING – EXPLOSION HAZARD – SUBSTITUTION OF
ANY COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS
II, DIVISION 2.
POTENTIAL ELECTROSTATIC CHARGING HAZARD –
CLEAN ONLY WITH A DAMP CLOTH
USE HEAT RESISTANT CABLES AND CABLE GLANDS
(RATED 90ºC OR HIGHER)
EXPLOSION HAZARD. DO NOT REMOVE OR REPLACE
LAMPS, FUSES OR PLUG-IN MODULES UNLESS POWER
HAS BEEN DISCONNECTED OR THE AREA IS KNOWN TO
BE FREE OF IGNITIBLE CONCENTRATIONS OF
FLAMMABLE GASES OR VAPORS.
EXPLOSION HAZARD. DO NOT DISCONNECT WHILE THE
CIRCUIT IS LIVE OR UNLESS THE AREA IS KNOWN TO BE
FREE OF IGNITIBLE CONCENTRATIONS.
__________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D189-00-001-IS
INSTRUCTION & SERVICE MANUAL
Issue: 9 01-06-16
D2xS1 ALARM HORN
For Use In Hazardous Locations
3) Ratings and Markings
3.1 ATEX / IECEx certification
The D2xS1 alarm horn complies with the following standards:-
EN60079-0:2012 / IEC60079-0: ed. 6.0 (2011-06)
EN60079-15:2010 / IEC60079-15: ed. 4.0 (2010-01)
EN60079-31:2009 / IEC60079-31:2009 ed. 1.0 (corr. 1 2009)
The Type
14ATEX4786493904X / IECEx ULD14.0004X has been issued
by UL. This confirms compliance with the European ATEX
Directive 94/9/EC for Group II, Category 3G/D equipment. The
alarm horn carries the Community Mark and subject to local
codes of practice, may be installed in any of the EEA member
countries. This instruction sheet describes installations which
conform to the current issue of EN60079-14/IEC60079-14
Electrical Installation in Hazardous Areas; EN60079-10-1 / IEC
60079-10-1 Explosive Atmospheres - Classification of Areas.
Explosive Gas Atmospheres; EN60079-10-2 / IEC 60079-10-2
Explosive Atmospheres - Classification of Areas. Explosive
Dust Atmospheres. When designing systems for installation
outside the UK, the local Code of Practice should be consulted.
The D2X Alarm horn is rated as follows:
II 3G
II 3D
CE Marking
Zones, Gas / Dust Groups and Temperature Classification
When connected to an approved system the D2X alarm horn
may be installed in:
Zone 2
Zone 22 explosive dust air mixture not likely to occur in
May be used with gases in groups:
Group IIA
Group IIB
Group IIC
Having a temperature classification
(for Gas applications) of:
T1
T2
T3
T4
May be used with Dust types:
Group IIIA combustible flyings
Group IIIB non-conductive dust
Group IIIC conductive dust
Sheet 1 of 7
Examination Certificate
Ex nA IIC T4 Gc (Ta -40ºC to +50ºC)
Ex tc IIIC T90ºC Dc (Ta -40ºC to +50ºC)
explosive gas air mixture not likely to occur in
normal operation, and if it does, it will only exist
for a short time.
normal operation, and if it does, it will only exist
for a short time.
propane
ethylene
hydrogen / acetylene
450ºC
300ºC
200ºC
135ºC
