T3Vk75F20 (Trove3) Enclosure Dimensions - Altronix Trove T1VK3F4 Installation Manual

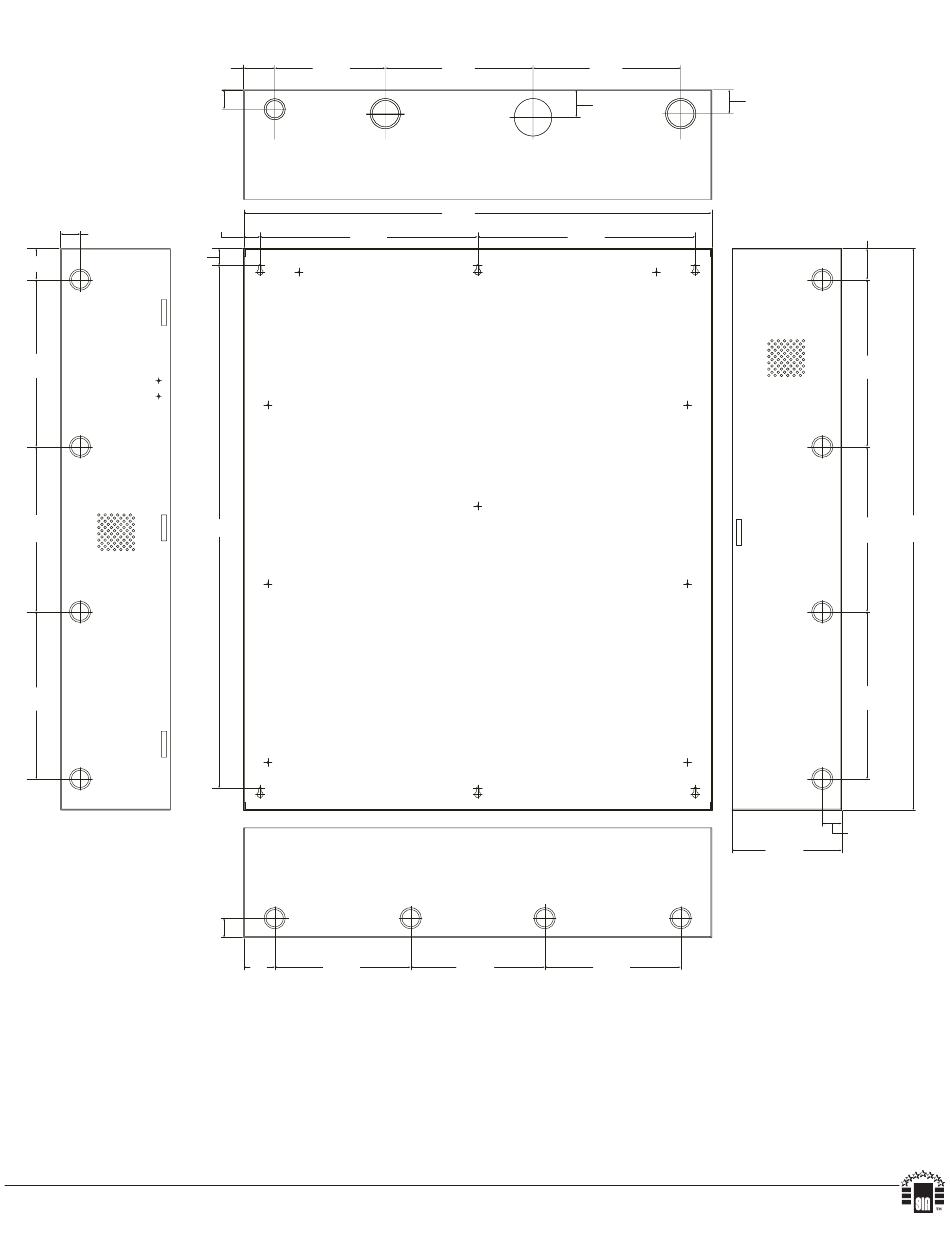

T3VK75F20 (Trove3) Enclosure Dimensions (H x W x D approximate):
1.25"
(31.8mm)
1.10"
2.00"
(27.9mm)
(50.8mm)
10.75"
(273.1mm)
G
G
10.62"
(269.8mm)
10.75"
(273.1mm)
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IITrove HID VertX Kits
- 8 -
36.12" x 30.125" x 7.06" (917.5mm x 768.1mm x 179.3mm)
2.00" 7.12"
(50.8mm) (222.25mm)
1.25"
(31.75mm)
1.07"
(27.2mm)
14.01"
(355.9mm)
33.63"
(854.20mm)
1.25"
(31.8mm)
2.00" 8.75"
(50.8mm) (222.3mm)
9.5" 9.5"
(241.3mm) (241.3mm)
1.78"
(45.21mm)
30.12"
(768.1mm)
14.01"
(355.9mm)
8.62" 8.75"
(219mm) (222.3mm)
D25S
1.55"
(39.37mm)
2.00"
(50.8mm)
10.75"
(273.1mm)
10.62" 36.12"
(269.8mm) (917.5mm)
10.75"
(273.1mm)
1.25"
(31.8mm)
7.06"
(179.3mm)
