- Page 1 PRIMERGY PRIMERGY RX220 Server System Service Supplement Joachim Pichol Fujitsu Siemens Computers GmbH Paderborn 81730 Munich e-mail: email: manuals@fujitsu-siemens.com Tel.: (05251) 8-14884 Fax: (++49) 700 / 372 00000 RX220 Sprachen: En Edition January 2006...
- Page 2 Gesellschaft für Technik-Dokumentation mbH www.cognitas.de Copyright and Trademarks Copyright © 2006 Fujitsu Siemens Computers GmbH. All rights reserved. Delivery subject to availability; right of technical modifications reserved. All hardware and software names used are trademarks of their respective manufacturers.
-
Page 3: Table Of Contents
Contents Introduction ......5 Overview of the documentation ....5 Notational conventions . -
Page 5: Introduction

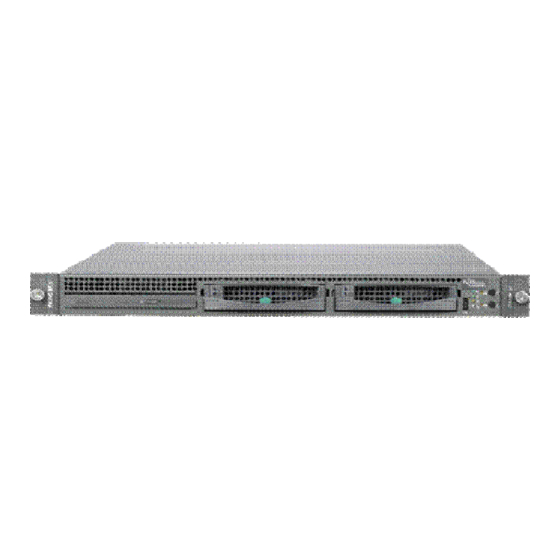

Introduction The PRIMERGY RX220 is an AMD-based server for mid-tier applications in server farms. The server is well suited for front end services as well as for use as an e-mail server, Internet server, or general applications server. Overview of the documentation... - Page 6 Overview of the documentation Introduction Information/activity Manual Detailed safety notes Safety Manual Features and technical data of the server Operating Manual Installation and operation, among other things: – External connections to the server – Operation – Configuration of the server –...
-
Page 7: Notational Conventions
Notational conventions Information/activity Manual Replacement routines: Service Supplement – Replacing the system fans – Replacing the control panel board – Replacing the power supply unit – Replacing the internal server power supply cable – Replacing the chassis ID module – Replacing the non-hot-plug hard disk –... -
Page 9: Procedure
Procedure CAUTION! The actions described in this manual should only be performed by service personnel. Ê First of all please familiarize yourself with the safety instructions in the chapter “Safety notes” on page Ê Make sure that all required manuals (see Service-DVD) are available, printing out the PDF files if necessary. -
Page 11: Safety Notes
Safety notes The following safety notes can also be found in the manual entitled “Safety”. This device complies with the relevant safety regulations for data processing equipment. CAUTION! The actions described in this manual should only be performed by service personnel. Before operating the device CAUTION! During installation and before operating the device, observe the... - Page 12 Safety notes CAUTION! This device has a specially approved power cable and must only be connected to a grounded insulated socket. Ensure that the power socket on the device or the grounded wall outlet is freely accessible. The ON/OFF button does not disconnect the device from the mains voltage.
- Page 13 Safety notes CAUTION! Only install system expansions that satisfy the requirements and rules governing safety and electromagnetic compatibility and relating to telecommunications terminal equipment. If you install other expan- sions, you may damage the system or violate the safety regulations and regulations governing RFI suppression.
- Page 14 Safety notes Notes on handling CDs/DVDs in CD/DVD drives CAUTION! Use only CDs/DVDs in proper condition in the CD/DVD drive of your server to prevent data loss, damage to the device, or injuries. Therefore, check each CD/DVD for damage, cracks, breakage etc. before inserting it in the drive.
- Page 15 Safety notes Note about the laserThe CD-/DVD-ROM drive is classified for laser class 1according to IEC 60825-1. CAUTION! The CD-/DVD-ROM drive contains a laser diode (LED). Sometimes the LED produces a stronger laser beam than laser class 1. Direct view into this laser beam is dangerous.
- Page 16 Safety notes CAUTION! Always hold components with ESDs at the points marked green (touch points). Do not touch any exposed pins or conductors on a component. Place all components on a static-free base. You will find a detailed description of handling ESD components in the relevant European or international standards (EN 61340-5-1, ANSI/ESD S20.20).
-
Page 17: Replacement Routines
Replacement routines CAUTION! When handling systems and boards, make sure you observe the safety information in the chapter “Safety notes” on page Preparation To replace non-hot-plug components, proceed as follows: Ê Shut down the operating system. Ê Switch the server off. Ê... - Page 18 Preparation Replacement routines CAUTION! The server has no cable management in the rack! Therefore you must unplug all cables connected to the server before you remove it. How to remove the server from the rack cabinet is described in the Operating Manual.
-
Page 19: Replacing The Fans
Replacement routines Replacing the fans Replacing the fans The server contains seven replaceable fan modules. memory fan system fans system fans system fans system fans memory fan power supply fans Figure 4: system fan (overview) – 4 system fan modules, consisting of 2 fans each. –... - Page 20 Replacing the fans Replacement routines System fans Figure 5: System fans CAUTION! A defective fan module must not be replaced during operation. Rotating parts involve an increased risk of injury. Make sure that the fan blades have stopped turning before removing the fan module. Ê...
- Page 21 Replacement routines Replacing the fans Figure 6: Removing a system fan module Ê Pull the plug of the defective system fan module out of the fan board (1). Ê Lift the defective system fan module out of the system. Ê Insert the new system fan module. Ê...
- Page 22 Replacing the fans Replacement routines Figure 7: Arrow indicating the direction of the outward airflow. CAUTION! Make sure you install the fan in the correct direction. The direction of the outward airflow is indicated on the top of the fan housing and must be the same as that of the other fans.
- Page 23 Replacement routines Replacing the fans Memory fans Figure 8: Removing / installing memory fans Ê Remove the fan module as described on page 21(removing of a system fan). Ê Install the fan module as described on page 21(installing of a system fan). Service Supplement RX220...
- Page 24 Replacing the fans Replacement routines Power supply fans Figure 9: Installing/removing power supply fans Ê Remove the fan module as described on page 21(removing of a system fan) Ê Install the fan module as described on page 21(installing of a system fan). Service Supplement RX220...
-
Page 25: Replacing The Control Panel Board
In case of defective control panel LEDs, buttons or connectors replace the complete control panel board. In the PRIMERGY RX220 server, the ambient temperature is measured on the control panel board. If the ambient temperature sensor is defective, replace the complete control panel board. - Page 26 Replacing the control panel board Replacement routines Figure 11: Removing the control panel board Ê Unplug the cable on the control panel board. Ê Undo both screws (see figure). Ê Remove the control panel board. Ê Insert the new control panel board. Ê...
-
Page 27: Replacing The Power Supply Unit
Replacement routines Replacing the power supply unit Replacing the power supply unit Ê Open the server as described in the section “Preparation” on page Figure 12: Removing the power supply unit dummy cover Ê Undo both screws (see figure) and remove the power supply unit dummy cover. - Page 28 Replacing the power supply unit Replacement routines Figure 13: Pulling out the internal power supply cable’s connector Ê Pull the internal power supply cable’s connector out of the power supply unit and bend it carefully to the side (see figure). Figure 14: Position of the connectors of the power supply Ê...
- Page 29 Replacement routines Replacing the power supply unit Figure 15: Opening the cable clamp Ê Open the cable clamp. Figure 16: Removing the power supply unit from the housing Ê Pull the power supply unit carefully out of the housing. When doing this ensure that the internal power supply cable (see circle) is not pinched.
- Page 30 Replacing the power supply unit Replacement routines Figure 17: Cable ducts inside the housing CAUTION! Push the cables and connectors carefully through the cable ducts inside the housing (see figure) to avoid damaging them. To install the power supply unit follow the above steps in reverse order. Ê...
-
Page 31: Replacing The Internal Server Power Supply Cable
Replacement routines Replacing the internal server power supply cable Replacing the internal server power supply cable Ê Open the server as described in the section “Preparation” on page Ê Remove the power supply unit as described in the section “Replacing the power supply unit”... - Page 32 Replacing the internal server power supply cable Replacement routines Figure 19: Removing the line filter Ê Press down the two edges of the line filter’s stop spring (both at the top (1) and at the bottom (2)). To permit access to the stop spring on the underside of the line filter access holes are provided both at the side and on the underside of the server housing.
-
Page 33: Replacing The Chassis Id Module
ID-Prom must be reprogrammed using the “Chassis ID Prom tool” after the new chassis ID module has been installed. You will find this tool on the ServerSupport CD or you can download it from the service and support area of Fujitsu Siemens Computers (FSC Web Server/URL: http://extranet.fujitsu-siemens.com/service/information/intelservers/tools). -
Page 34: Replacing The Non-Hot-Plug Hard Disk
Replacing the non-hot-plug hard disk Replacement routines Replacing the non-hot-plug hard disk The non-hot-plug hard disk is accommodated in a sturdy mounting assembly and must be dismounted in order to replace it. Figure 21: Mounting assembly with a non-hot-plug hard disk Ê... - Page 35 Replacement routines Replacing the non-hot-plug hard disk Figure 22: Dismounting the non-hot-plug hard disk Ê Remove the two cables (1) from the SATA hard disk. The SATA cable’s connector has a retaining catch which must be pressed to pull it out. This is on the underside here and therefore cannot be seen.
-
Page 36: Replacing The Sata Backplane
Replacing the SATA backplane Replacement routines Replacing the SATA backplane Ê Open the server as described in the section “Preparation” on page Ê Disconnect the data cable of the CD/DVD drive. Carefully fold the cable to the side. Ê Remove all the other cables from the SATA backplane. Ê... -
Page 37: Replacing The Fan Backplane
Replacement routines Replacing the fan backplane Ê Connect the cables of the accessible drives. Ê Close the server and connect all power plugs (for a detailed description see the Options Guide). Replacing the fan backplane Ê Open the server as described in the section “Preparation”... -
Page 38: Replacing The System Board
Replacing the system board Replacement routines 4.10 Replacing the system board Ê Open the server as described in the section “Preparation” on page Ê Disconnect all external cables on the rear side of the server Removing the system board Ê Remove the memory modules (the relevant procedure is described in the Options Guide). - Page 39 Replacement routines Replacing the system board Ê Hold the system board on both sides and lift it carefully out of the housing. Installing the system board Ê Insert the system board at a slight angle and slide the connectors through the recesses on the rear side.
-
Page 41: Appendix
Appendix Board layout The board layout of the system board is described in the Technical Manual of the system board D2130. 5.1.1 Control panel board Part number: SNP:A3C40066829 Figure 26: Control panel board Connection USB34 connector on system board PANEL1 connector on system board Service Supplement RX220... -
Page 42: Sata Backplane
Board layout Appendix 5.1.2 SATA backplane Part number: SNP:A3C40065010 Figure 27: Connector assignment on the SATA backplane Connection Power supply SATA LED controller connector (I2C_SATA1) on system board SATA1 connector on system board SATA2 connector on system board SATA HDD1 data and power connector SATA HDD2 data and power connector IDTEMP Combo board (SNP:A3C40038146) Service Supplement... -
Page 43: Fan Backplane
Appendix Board layout 5.1.3 Fan backplane Part number: SNP:A3C40061146 Figure 28: Connections on the fan backplane Connection Double system fan module for power supply unit Single system fan module for memory modules Double system fan module for CPU2 Double system fan module for CPU2 Double system fan module for CPU1 Double system fan module for CPU1 Single system fan module for memory modules... -
Page 44: Cabling
Cabling Appendix Cabling 5.2.1 Cable overview Part number/ Description From ASUS No SNP:A3C40068551/ Operating panel cable System board Operating 14G000900700 D2130 panel board SNP:A3C40068552/ USB cable System board Operating 14G030001900 D2130 panel board SNP:A3C40068547/ IDE cable for System board CD/DVD drive 14G000900520 CD/DVD/CD-RW drive D2130... -
Page 45: Cable Layout
Appendix Cabling 5.2.2 Cable layout Variant hot-plug SATA hard disk B M C & . a n b a c k p l a n e " S A T A b a c k p l a n e I D T E M P - P o w e r C o m b o... - Page 46 Cabling Appendix Variant non-hot-plug B M C & . a n b a c k p l a n e " I D T E M P - P o w e r H a r d d i s k 1 H a r d d i s k 2 C o m b o s u p p l y...
-
Page 47: Index
Index ambient temperature sensor non-hot-plug hard disk mounting location replace notational conventions note about the laser batteries notes on handling CDs cable overview cabling layout power supply unit chassis ID module dummy cover replace internal server power supply reprogram cable control panel board Position of connectors connections... - Page 48 Index system fans replace target group Service Supplement RX220...
- Page 49 Comments Fujitsu Siemens Computers GmbH User Documentation Suggestions 81730 Munich Germany Corrections Fax: (++49) 700 / 372 00000 email: manuals@fujitsu-siemens.com http://manuals.fujitsu-siemens.com Submitted by Comments on PRIMERGY RX220 Server System RX220...
- Page 51 Comments Fujitsu Siemens Computers GmbH User Documentation Suggestions 81730 Munich Germany Corrections Fax: (++49) 700 / 372 00000 email: manuals@fujitsu-siemens.com http://manuals.fujitsu-siemens.com Submitted by Comments on PRIMERGY RX220 Server System RX220...
- Page 53 Copyright Fujitsu Technology Solutions, 2009 Hinweise zum vorliegenden Dokument Zum 1. April 2009 ist Fujitsu Siemens Computers in den alleinigen Besitz von Fujitsu übergegangen. Diese neue Tochtergesellschaft von Fujitsu trägt seit- dem den Namen Fujitsu Technology Solutions.
