Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions........................................................................................................................5
Product Dimensions................... ........................................................................................................7
B-Tech Contact Details.......................................................................................................................8
INSTALLATION TOOLS REQUIRED
Flathead & crosshead
screwdriver

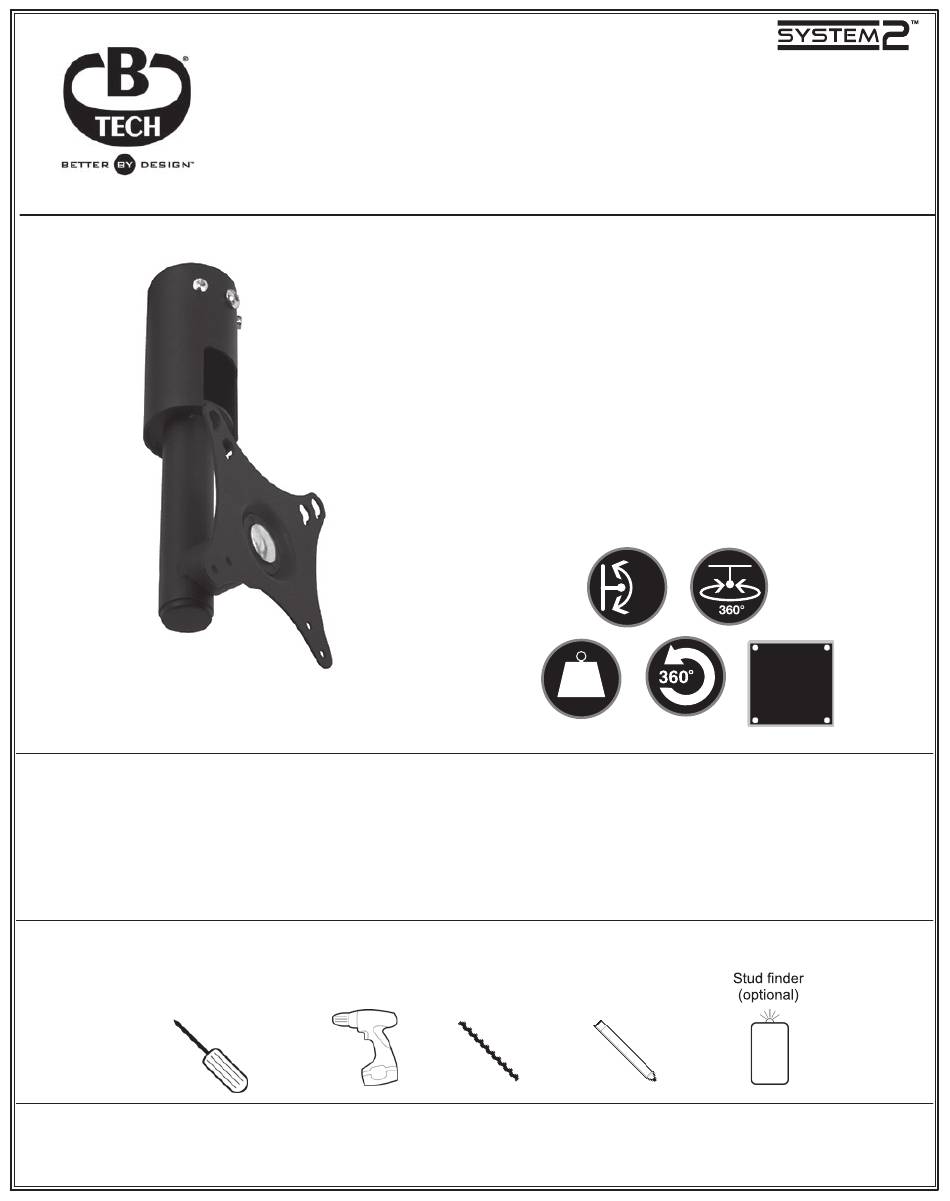

B-TECH AUDIO VIDEO MOUNTS
BT7551
SINGLE FLAT SCREEN MOUNT
FOR 50mm (2") POLES
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS PARTS LIST FOR FUTURE REFERENCE
CONTENTS
Drill
www.btechavmounts.com
FEATURES
• Fits 75 x 75mm and 100 x 100mm VESA mounting patterns
• Maximum load: 23kg (51lbs)
• Tilt: +/-10°
• Swivel: 360°
• Screen levelling: 360° Rotation
• Cable management
• Keyholes mounting for easy hook-on installation
• Must be used with B-Tech 50mm (2") extension poles
(extension poles sold separately).
• All mounting hardware and fixings included
23kg
(51lbs)
Drill bit
Pencil
10º
10º
VESA
100
SCREEN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for B-Tech System 2 BT7551
Summary of Contents for B-Tech System 2 BT7551
-
Page 1: Table Of Contents
• Swivel: 360° • Screen levelling: 360° Rotation • Cable management • Keyholes mounting for easy hook-on installation • Must be used with B-Tech 50mm (2") extension poles (extension poles sold separately). • All mounting hardware and fixings included 10º... -
Page 2: Installation Safety Notes
INSTALLATION SAFETY INSTRUCTIONS CAUTION: This mount is intended for use only with the maximum weights indicated. Use with flat screen heavier than the maximum indicated may result in instability causing possible injury. -
Page 4: Parts List
BT7551 PARTS LIST PART NAME FLAT SCREEN MOUNT M8 x 60mm SCREW Suitable for loads up to M10 x 10mm GRUB SCREW 23kg (51lbs) M4 x 12mm SCREW 5mm ALLEN KEY (FOR PARTS 2 & 3) S13mm SOCKET WRENCH PLEASE KEEP THIS FOR FUTURE REFERENCE... -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS Attach the flat screen mount (Part 1) onto a BT7850 - ø50mm extension pole (not supplied). Fit the M8 x 60mm screw (Part 2) and M10 x 10mm grub screws (Part 3) using the provided 5mm Allen key (Part 5). EXAMPLE INSTALLATIONS CEILING BT7822 Ceiling Bracket... - Page 6 Mount the screen using the keyole fixings (Suitable for screens with VESA 75 x 75mm or 100 x 100mm fixings). Insert halfway 2pcs M4 x 12mm screws (Part 4) into the upper VESA fixings on rear of screen with 6mm overhanging. Mount screen onto VESA plate (Part 1).
-
Page 7: Product Dimensions
(1.38”) 42mm 50mm (1.65”) 227mm (1.97”) (8.94”) 286.3mm (11.27”) 125.7mm (4.95”) 100mm 75mm (3.94”) (2.95”) 75mm (2.95”) 100mm (3.94”) 118.5mm (4.67”) These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information... -
Page 8: B-Tech Contact Details
IP-BT7551-V1-PROBX-260713-44 MADE IN CHINA...
