MOUNTING INSTRUCTIONS

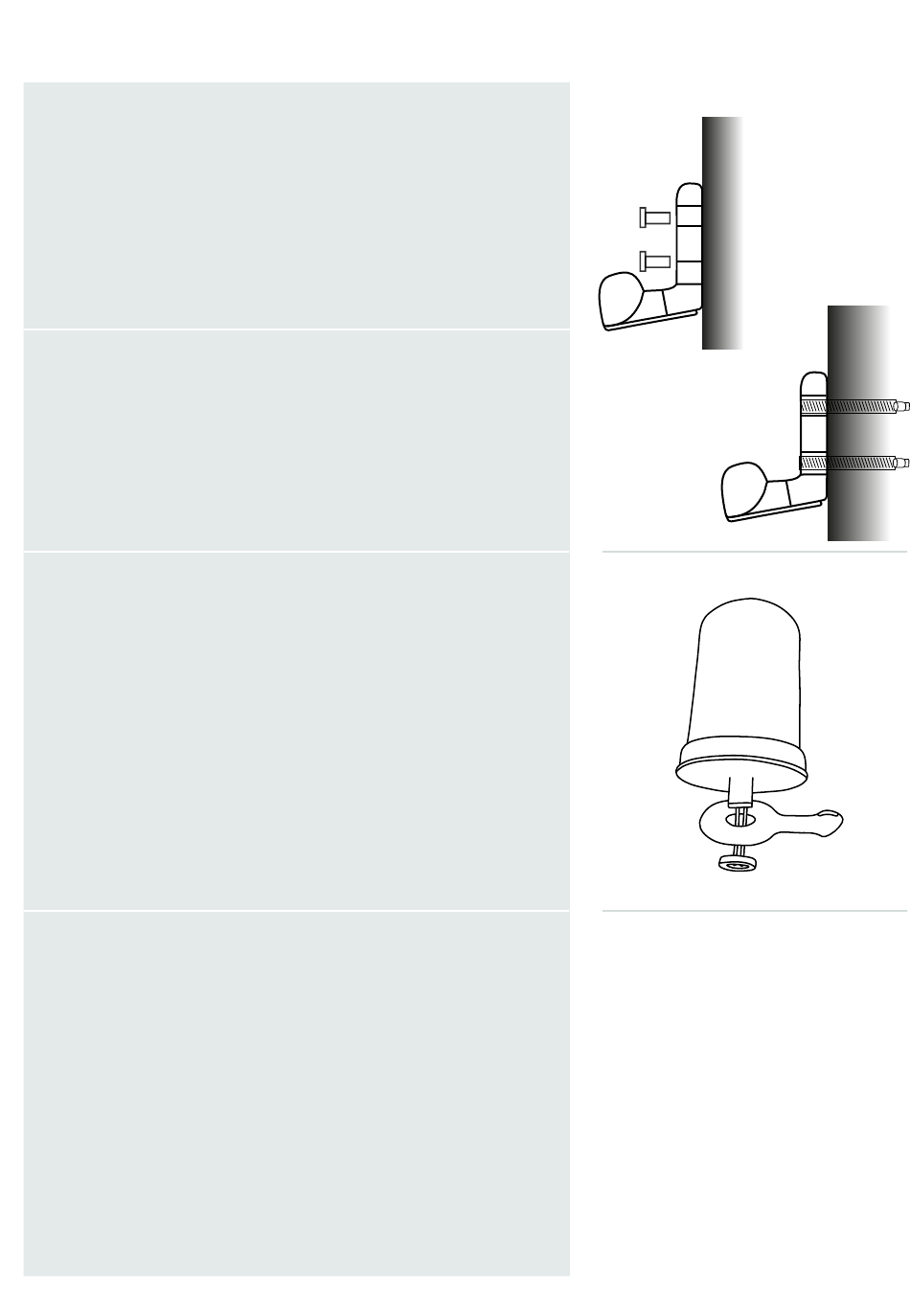

Attaching the antenna bracket by wall mounting
In the case of wall mounting, attach the antenna bracket to
the wall with the enclosed bolts. You may need to drill the
holes first and insert dowels.
Attaching the antenna bracket by pole mounting
In the case of pole mounting, use screw clamps to attach
the antenna bracket directly to the pole.
Attaching the antenna arm to the antenna
When attaching the antenna arm to the antenna, please
ensure that there is a close fit between them. Make use
of the pin on the antenna arm and the matching recess in
the antenna. Finally, use the locking screw to secure the
antenna arm to the antenna.
Important
Mounting the antenna upside down
If the antenna will be mounted outdoors and with the
cables exiting upwards, it is essential to have a good seal by
sticking the insulation disk to the antenna before attaching
it to the antenna arm.
