MOUNTING INSTRUCTIONS
Important
Proper handling of antenna cables
Antenna cables are sensitive RF cables. During installation it is important that the cables are not
creased, and bent as little as possible, otherwise the antenna will suffer a loss of performance. Do
not coil the antenna cable in tight loops.
Important
Antenna gain and terminating unused antenna connectors on the access point
It is essential for unused antenna connectors on the access point to be terminated with the supplied
rod antenna. The terminating resistor supplied with the adapter AirLancer AN-RPSMA-NJ is suitable
for use with indoor access points. In addition, you must disable the unused antenna connectors in
LCOS (changing the antenna grouping of the respective WLAN module), and configure the antenna
gain of the antenna. The settings can be found in LANconfig at:
Configuration > Wireless LAN > General > Physical WLAN settings > Radio

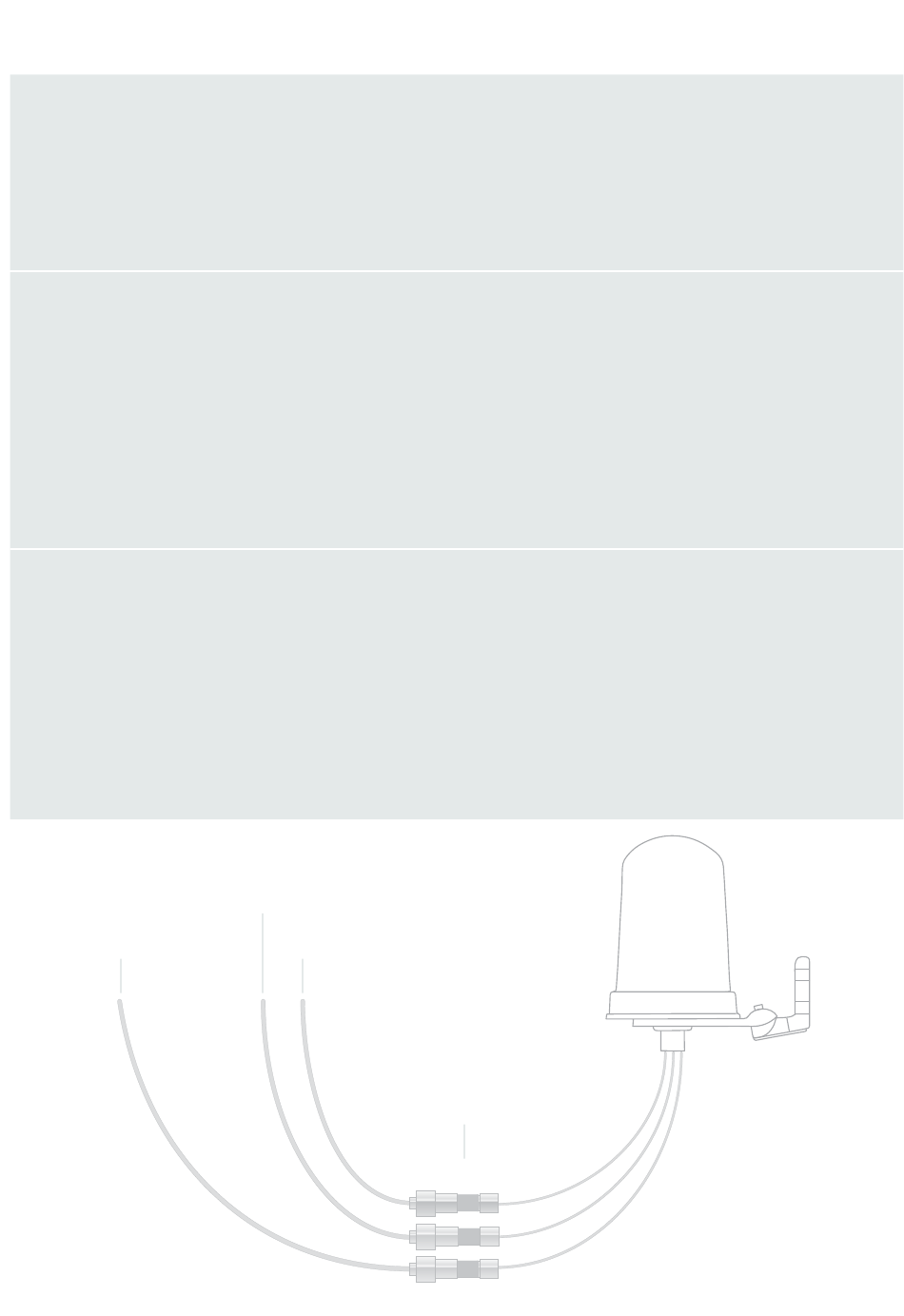

Operating mode
2x2 MIMO & 1x1 MIMO
Apart from its standard operation as a 3x3 MIMO antenna, this antenna can also be used by two
WLAN modules operating in two different frequency ranges. This is done by connecting one of the
connectors to one WLAN module and the other two connectors to the other WLAN module. As the
AirLancer ON-T360ag has antenna segments that are aligned equally to one another, you are free to
choose your arrangement. Please note that in this operating mode at least one antenna connector of
the access point will be unused and has to be terminated.
WLAN 2
2,4 GHz / 1x1 MIMO
WLAN 1
WLAN 1
5 GHz / 2x2 MIMO
5 GHz / 2x2 MIMO
Surge Arrester AirLancer SN-ANT
(not included)
