MOUNTING INSTRUCTIONS

Mounting preparation

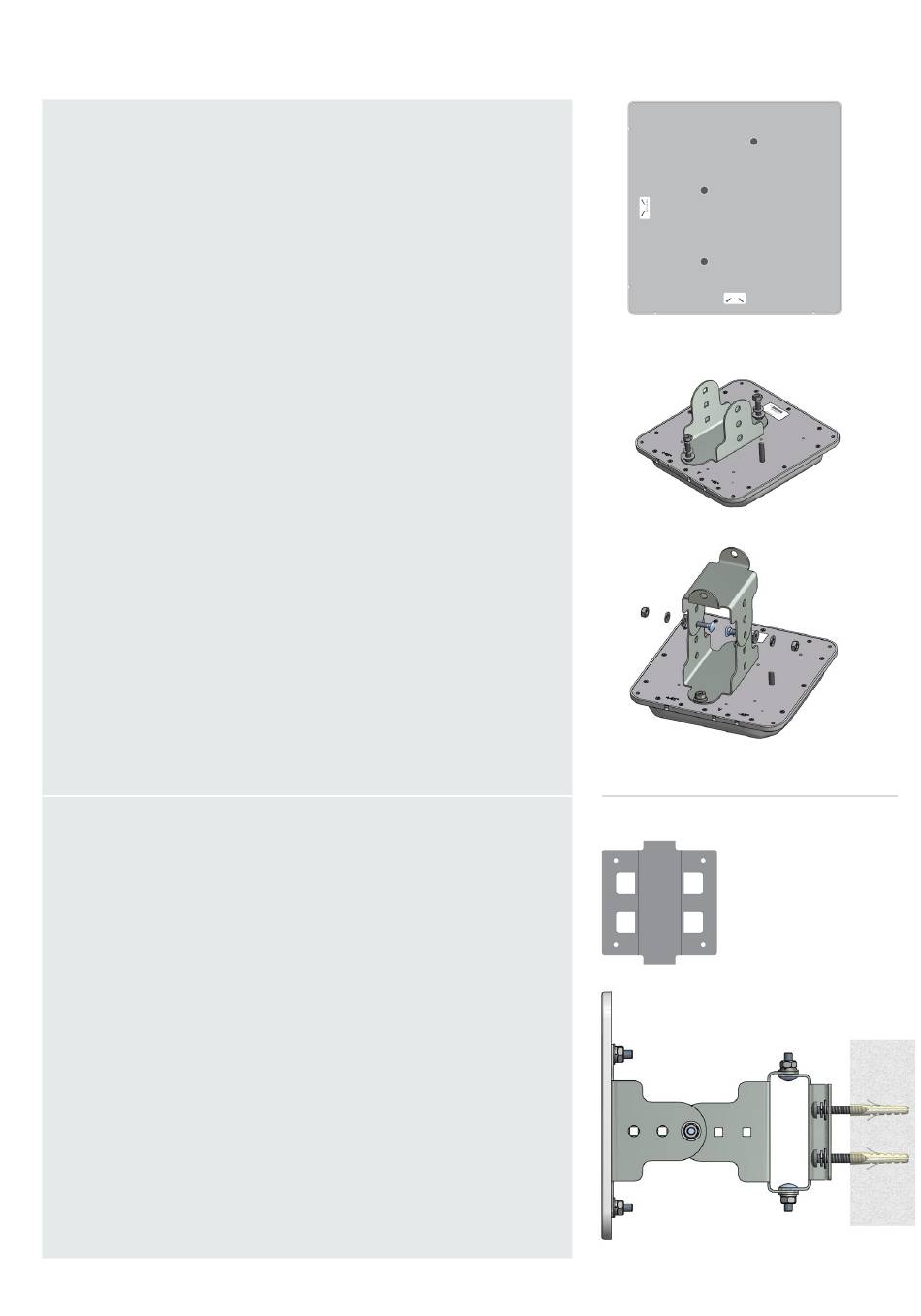

Fix the mounting bracket (antenna) to the corresponding
mounting bolts for 0° or 45° orientation at the backside
of the antenna using a hex nut, a flat washer, and a lock
washer per bolt as shown in the diagram.
Connect the mounting bracket (antenna) and the mounting
bracket (middle) using two screws plugged from the inner
side of the brackets. Fasten the connection by first placing a
flat washer and then a lock washer on each bolt. Attach the
hex nuts to the bolts and tighten the nuts hand-tight. Then
proceed with wall- or pole-mounting the antenna.

Wall mounting

Fix the mounting bracket (wall/pole) to a wall able to take
weight using the four supplied screws and dowels. Then
connect the mounting bracket (wall/pole) and the mounting
bracket (middle) of the previously mounted unit using two
screws plugged from the inner side of the brackets. Make
sure that the drain holes on the backside of the antenna
point downwards. Fasten the connection by first placing a
flat washer and then a lock washer on each bolt. Attach the
hex nuts to the bolts and tighten the nuts hand-tight.
Align the antenna according to your needs and tighten all
nuts firmly.
Mounting bolt
Mounting bolt
Mounting bolt
DRAIN HOLES
Mounting bracket
(antenna)
Mounting bracket
(wall/pole)
Mounting bracket
(middle)
Mounting bracket
(antenna)
Mounting bracket
(middle)
Mounting bracket
(wall/pole)
