MOUNTING INSTRUCTIONS

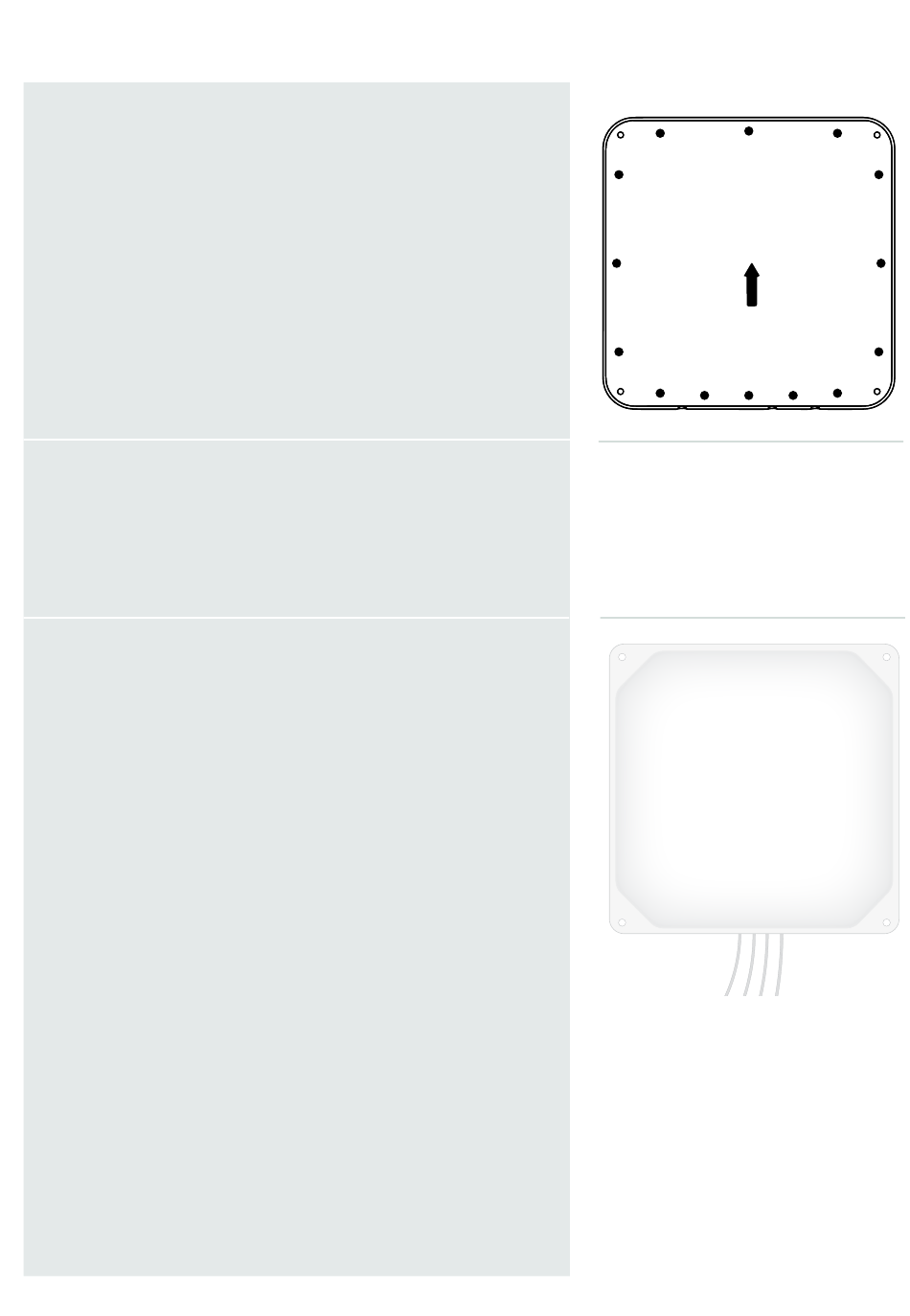

Preparation for wall mounting
Use the antenna as a drilling template to mark out the drill
holes for the wall mounting. The horizontal and vertical
separation of the adjacent holes is 173.7 mm.
Size of the drill holes
Using the markings as a guide, drill the holes and insert
dowels if appropriate. Depending on the underground the
size of the holes may vary.
Mounting the antenna
Line-up the antenna with the holes and make sure that
the connectors are pointing downwards. Then attach the
antenna with the supplied screws.
Mounting the antenna with a free orientation can be
achieved with the AirLancer Mount (ON) which is available
optionally.
