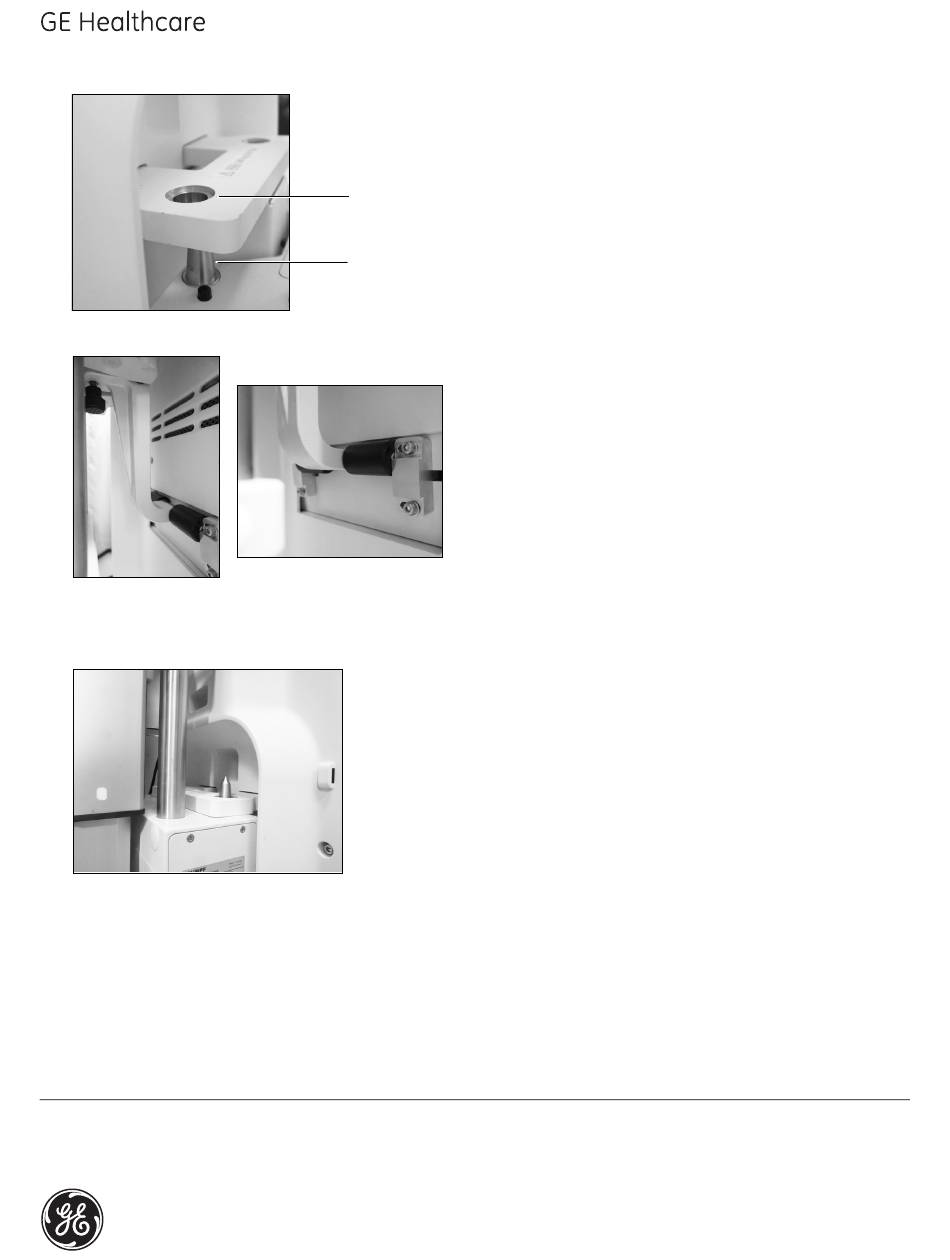

Move the machine to the pendant lift. Ensure the lift pins (D) align properly with machine pendant mount holes (E).
8.
Turn the tilt adjustment screw clockwise till the hinge supports the anesthesia machine evenly.
WARNING This step is essential safety related, make sure it is completed and record the result.
9.
Raise the pendant lift until it is fully mated with the pendant mount.
10. After mounting the machine to the ceiling pendant and all leveling adjustments have been made according to the
ceiling pendant manufacturer's procedures, adjust the two tilt blocks (F) by positioning them against each side of the
