lower pendant tilt bracket (the black rod). Tighten the M5 screws of the tilt blocks with torque of 3.39 ± 0.17 Nm.
Note: To prevent side tilting, it is important to install the tilt blocks before adding any accessories to the machine.
WARNING The screws must be tightened to required torque. Confirm this is completed and
record it.
11. Reinstall the parts or accessories removed in previous steps.
12. Perform the safety checkout procedures as recommended by the pendant lift manufacturer.
13. Connect the power cable and gas supplies.
14. Perform the anesthesia machine Checkout Procedure detailed in the Technical Reference Manual.

Service Instructions

In case the pendant anesthesia machine needs to be serviced, follow instructions below.

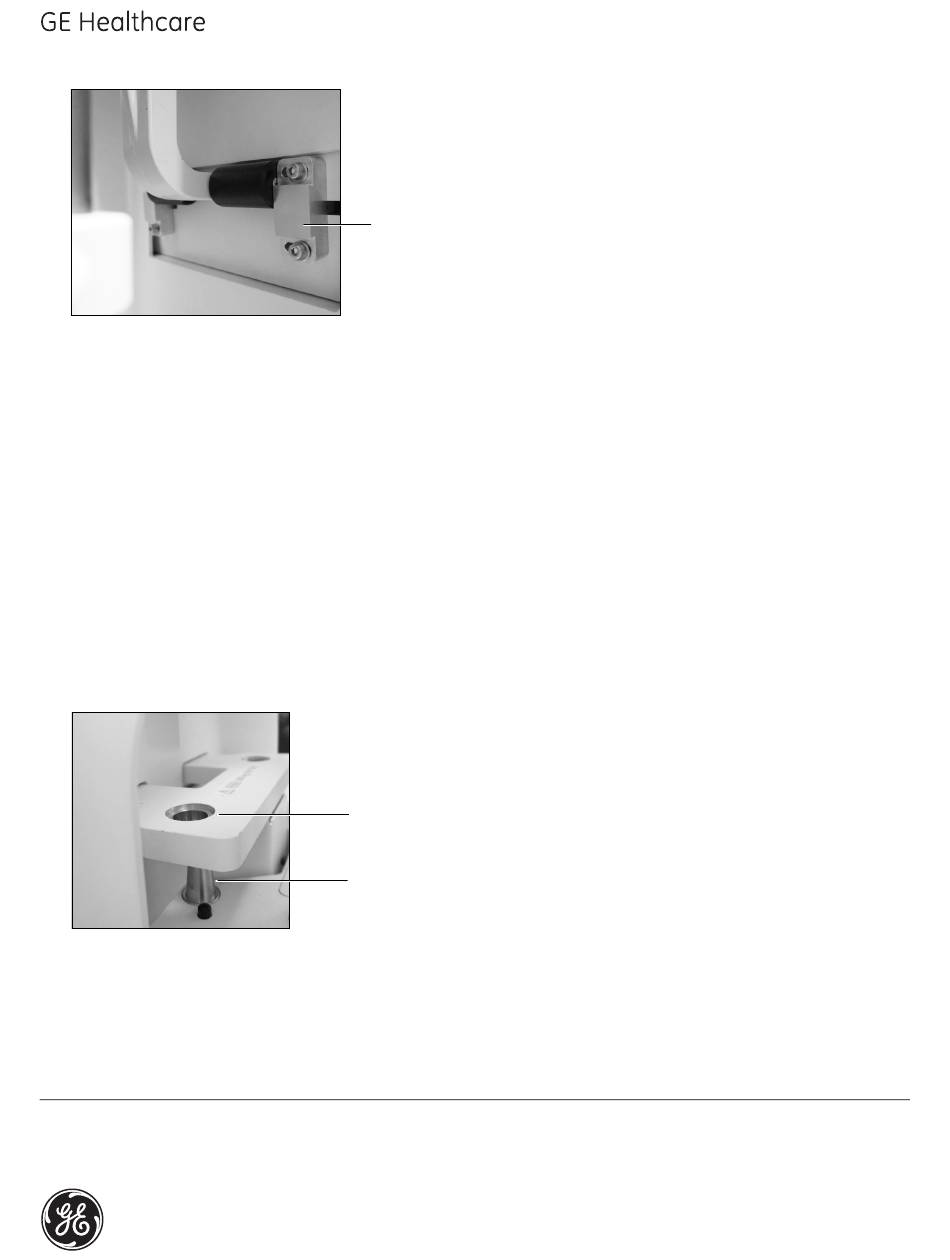

1. Lower the pendant lift till the anesthesia machine stands on its own wheels and the lift pins (D) recede out of the
mounting holes (E) .
2. Move the anesthesia machine away from the pendant lift.
3. Perform service activities as described in the Carestation 600 Series Technical Reference Manual.
4. Check the tightness of below sixteen screws during service maintenance. Verify that the marks on the screws and
Datex-Ohmeda, Inc.
3030 Ohmeda Drive
PO Box 7550
Madison, WI 53707-7550, USA
F
E
D
This document contains confidential information or proprietary information of General Electric Company or its af-
filiates. Neither the document nor the information therein is to be reproduced, distributed, used, or disclosed, either
in whole or in part, except as specifically authorized in writing by a General Electric Company and must be returned
upon request.
Installation Instructions,
For future reference add to your Technical Reference Manual
M1807013 Rev. F
For Field Use
01 15 Page 4 of 6
